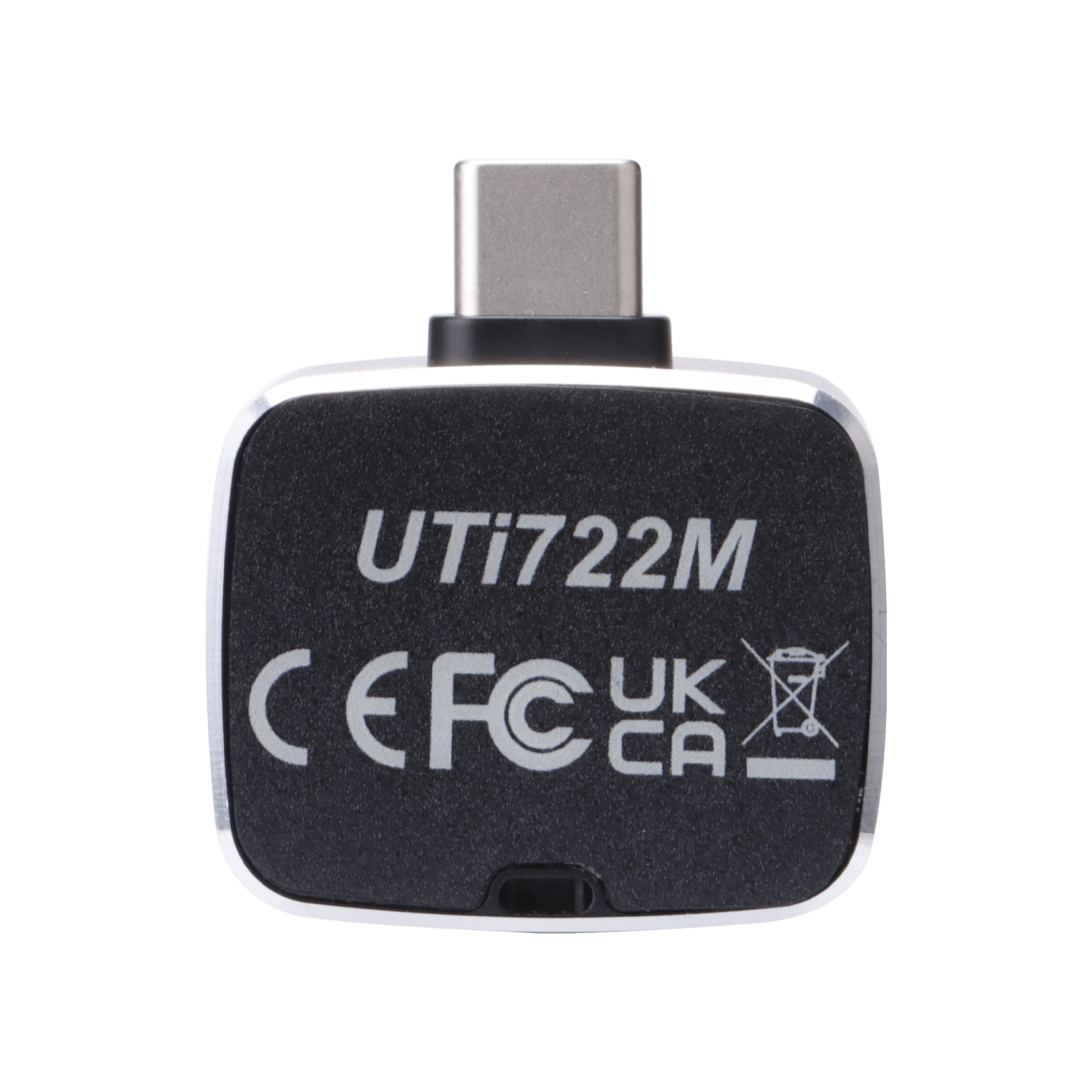

UNI-T UTi722M Smartphone Thermal Camera Module for Android

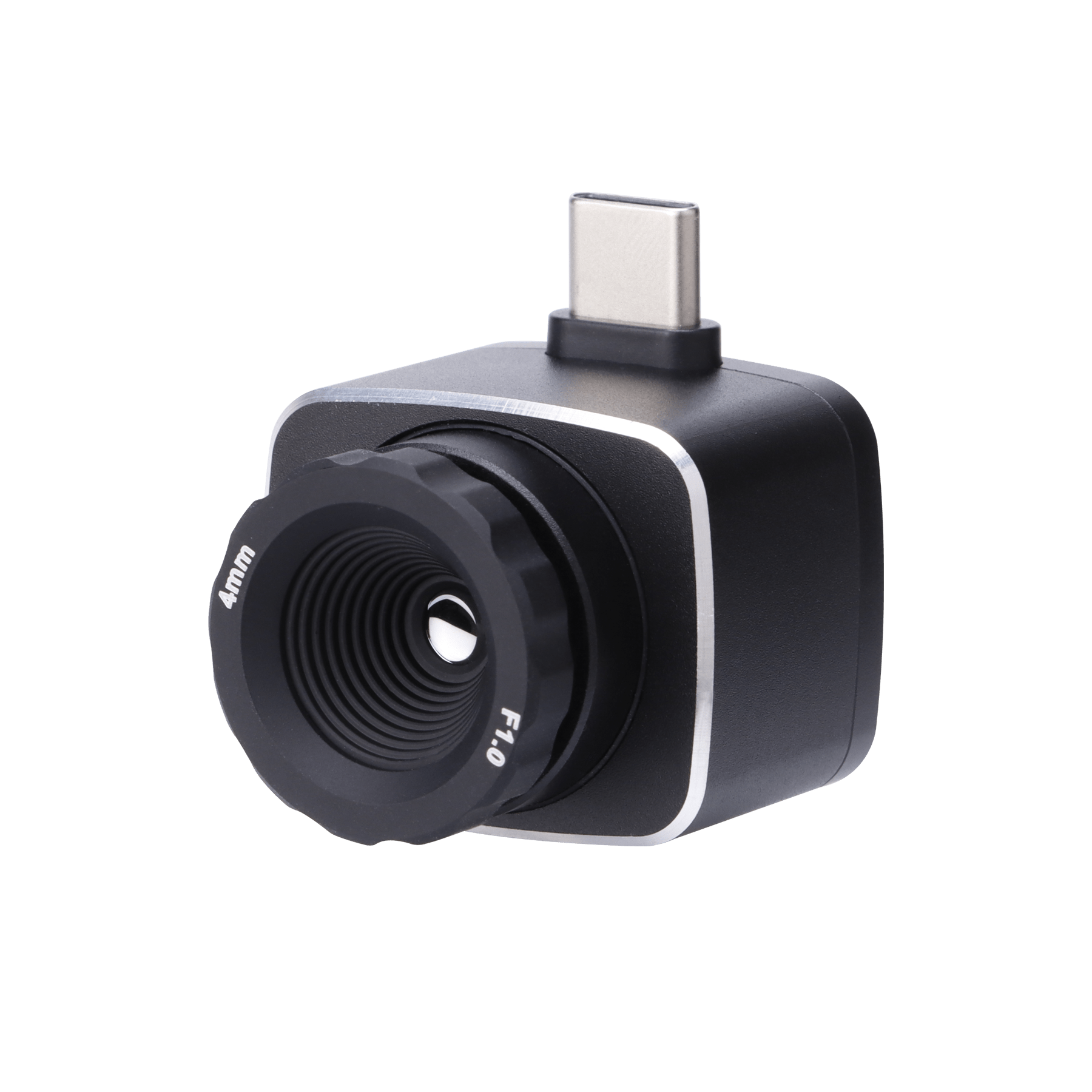

UTi722M transforms your smartphone into a thermal camera instantly. Its most prominent bright feature is the 4.0mm adjustable lens.
15,990.00 EGP
In stockSKU 6935750572207
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
UNI-T UTi722M Smartphone Thermal Camera Module for Android
UTi722M transforms your smartphone into a thermal camera instantly. Its most prominent bright feature is the 4.0mm adjustable lens, which meets your needs of measuring the targets near or far. Plug & play with the user-friendly mobile APP “Thermal Mobile”, the practical functions comparable to professional thermal cameras. UTi722M is a desirable tool for HVAC, home life and adventure travel. lovers, engineers, contractors and builders, etc.
Features:
- Portable & convenient
- Manual focus
- Plug & play with “Thermal Mobile” mobile APP
- IR resolution: 256×192 pixels
- On screen analyzer
- Temperature alarm
- Video recording
Specifications:
| Technical Data | |
| IR resolution(Pixels) | 256×192 |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤50mK @25℃ |
| Focus | Manual Focus |
| Lens size | 21.5mm |
| Lens focal length | 4.0mm |
| Field of view(FOV) | 44.92°(H) × 33.42°(V) |
| Measurement modes | Industry & EST screening |
| Temperature measurement range | -20℃~450℃ |
| Accuracy | Industry: ±2℃ or ±2% whichever is greater (0℃~450℃) EST: ±0.5℃ (30℃~40℃) |
| Functions | |
| Color palettes | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| On screen analyzer | 3 Points/3 Lines/3 Rectangles |
| Isotherm | Auto/Below/Above/Section/Manual |
| Hi/Lo temperature alarm | LCD animation & Buzzer |
| Hi/Lo temperature tracking | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Type-C |
| Image storage format | JPEG |
| Video storage format | MP4 |
| Certificates | CE, UKCA, FCC, RoHS |
| Languages | ZH, EN, FR, DE, IT, ES, SV |
| Weight | Approx. 30g |
| Dimension | 29.5mm×24.5mm×29.5mm |
Applications:
- Industrial inspection.
- Electrical inspection.
- HVAC & building inspection.
- Moisture leakage detection.
- EST (body screening / elevated skin temperature) screening.
- Outdoor & night vision.
- Insulation inspection.
Package Contents:
- 1x Type-C extension cable
- 1x Hand strap (wrist strap)
- 1x Cleaning cloth / fabric bag
- 1x English (or multilingual) user manual / operation guide
- 1x (Gift box / packaging) standard individual packing
