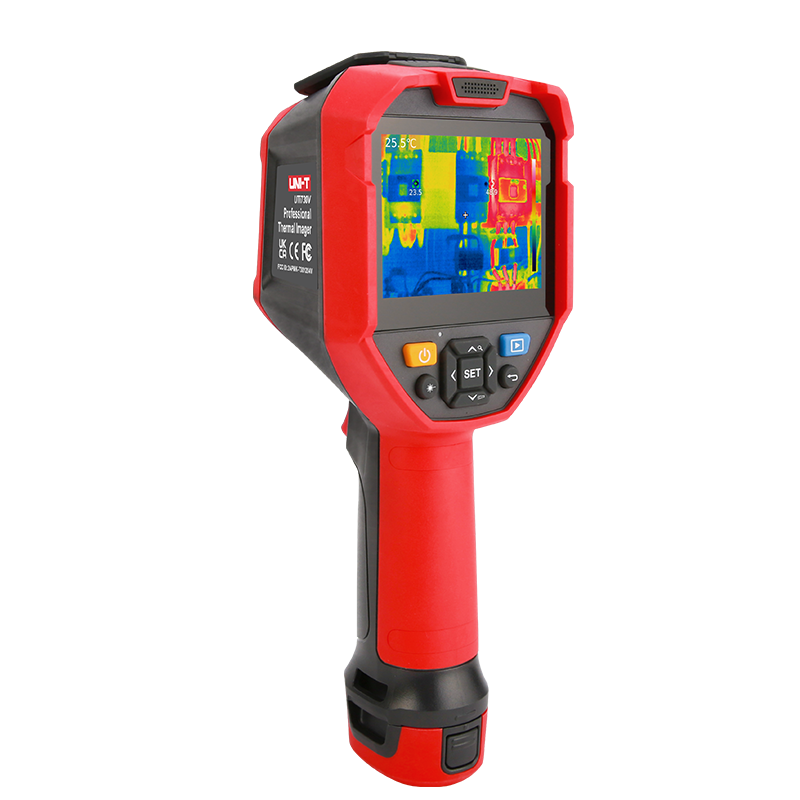

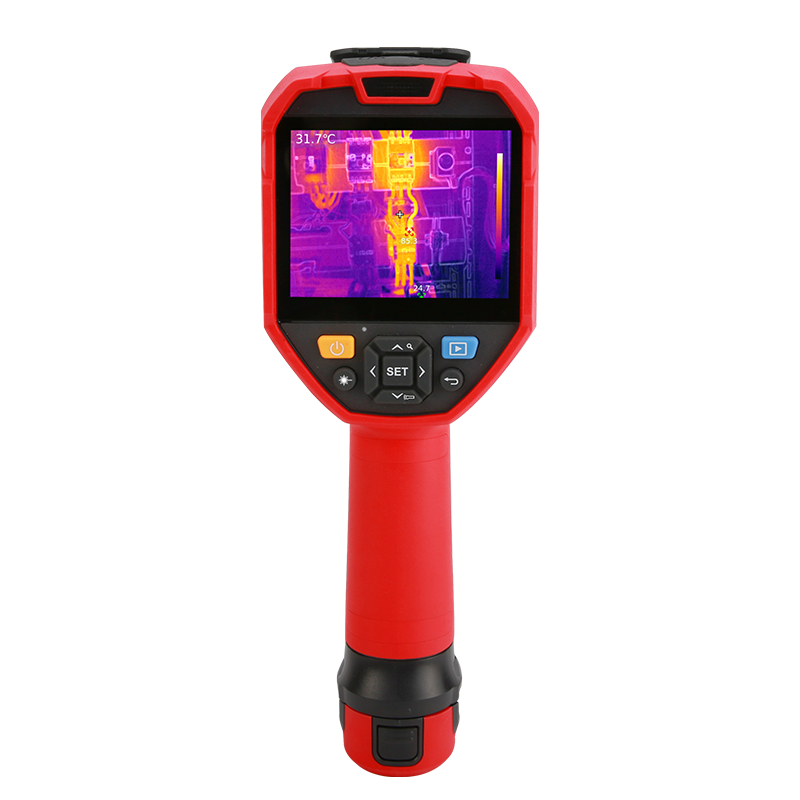

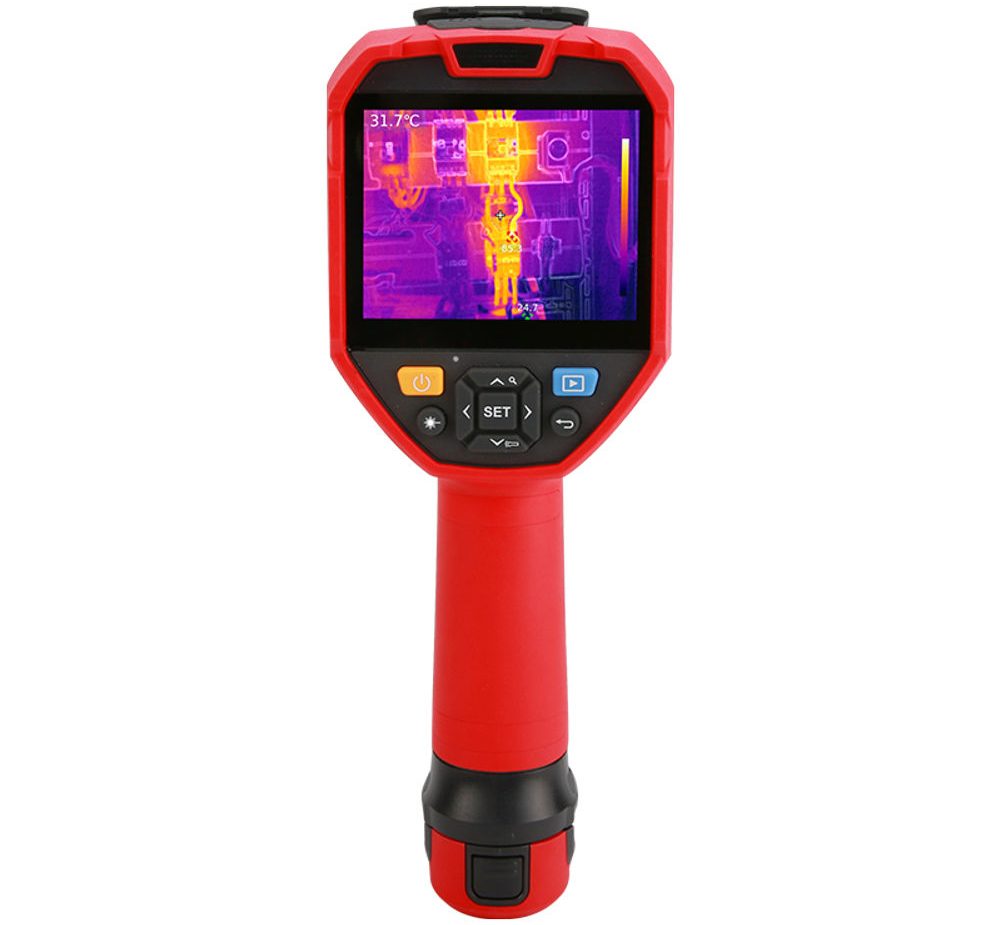

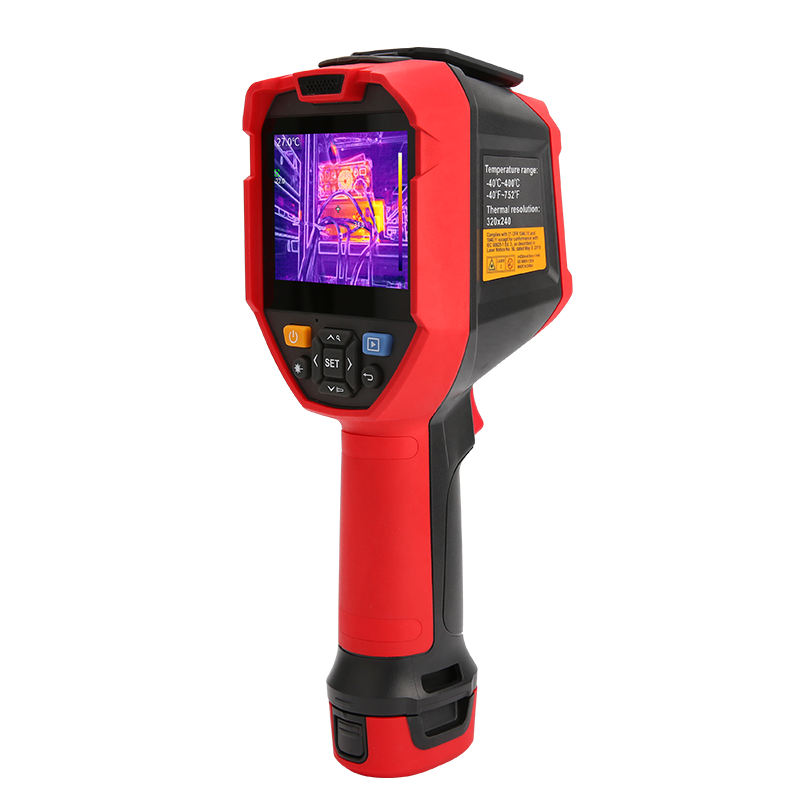

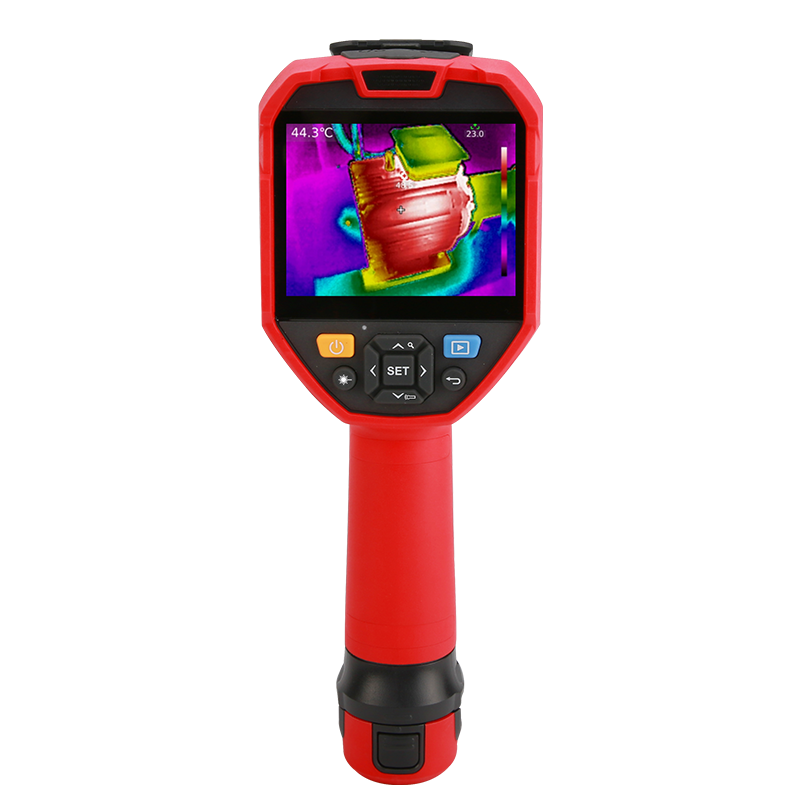

UNI-T UTi730V Professional Thermal Imaging Camera
The UNI-T UTi730V is a professional handheld thermal imaging camera designed to accurately detect and visualize temperature differences in real time. It combines a high-sensitivity 384×288 microbolometer sensor with a wide 30°×22° field of view, enabling users to capture clear, detailed thermal images across diverse environments. Equipped with a 4× digital zoom and a 3.5-inch, 320×240‐pixel TFT LCD, the UTi730V displays thermal data alongside a reticle and temperature readout for precise diagnostics.
Its temperature measurement range spans from –20 °C to 650 °C, with an accuracy of ±2 °C (or ±2 % of reading) and a thermal sensitivity (NETD) of ≤50 mK, making it suitable for identifying subtle heat anomalies. The camera supports multiple color palettes—iron, rainbow, white hot, and black hot—to emphasize temperature gradients, and offers an adjustable emissivity setting (0.01 to 1.00) for material-specific readings. It integrates an 8 GB internal memory, allowing storage of over 10,000 jpeg‐formatted thermal images with embedded temperature data. Weighing just 320 g (including battery), the UTi730V is powered by a removable lithium-ion battery providing up to 4 hours of continuous operation.
USB and Mini HDMI ports facilitate data transfer and on-screen display, while intuitive one-handed operation and a durable rubber-armored housing make it ideal for field inspections, electrical troubleshooting, mechanical maintenance, and building diagnostics.
Features:
- 384×288 (110,592 pixels) VOx uncooled microbolometer sensor.
- Temperature range: –20 °C to 650 °C (–4 °F to 1202 °F), accuracy ±2 °C or ±2 %.
- Thermal sensitivity (NETD): ≤50 mK.
- 30°×22° field of view, 4× digital zoom.
- 3.5″ TFT LCD, 320×240 pixel resolution.
- Four color palettes: iron, rainbow, white hot, black hot.
- Adjustable emissivity (0.01–1.00), distance compensation (0.1–∞ m).
- 8 GB internal storage for >10,000 JPEG images with embedded temperature data.
- Real-time temperature readout at crosshair, isotherm and spot metering.
- Image blending mode (50 % thermal + 50 % visible).
- Built-in 2 MP visible-light camera for reference images.
- Li-ion battery (4 h runtime), USB and Mini HDMI ports.
- Rugged, rubber-armored housing; 320 g (with battery).
- Auto-power off, battery low indicator, and power management.
Specifications:
| Parameter | UTi730V Specification |
|---|---|
| Detector: | 384×288 VOx uncooled microbolometer, <50 mK NETD |
| Spectral Range: | 7.5–14 μm |
| Optics: | 30°×22° FOV, f/1.0, 17 mm focus |
| Digital Zoom: | 1× to 4× |
| Temperature Range: | –20 °C to 650 °C (–4 °F to 1202 °F) |
| Accuracy: | ±2 °C or ±2 % of reading (whichever is greater) |
| Emissivity: | Adjustable 0.01 to 1.00 |
| Distance Compensation: | 0.1 m to ∞ |
| Display: | 3.5″ TFT LCD, 320×240 pixels, adjustable brightness |
| Visible Camera: | 2 MP (1600×1200) with LED torch |
| Image Storage: | 8 GB internal (approx. 10,000 JPEG files w/ embedded temp data) |
| Color Palettes: | Iron, Rainbow, White Hot, Black Hot |
| Image Modes: | Thermal, Thermal + Visible Blend (50 % each), Visible |
| Image Format: | JPEG (with temperature data) |
| Video Output: | Mini HDMI |
| Interfaces: | USB 2.0 (Mini USB), Mini HDMI |
| Battery: | Removable 3.7 V Li-ion, 4 h runtime |
| Operating Temp.: | –10 °C to 50 °C |
| Storage Temp.: | –20 °C to 60 °C |
| Humidity: | ≤90 % RH (non-condensing) |
| Drop Test: | 2 m (rugged rubber-armored housing) |
| Weight: | 320 g (including battery) |
| Dimensions (H×W×D): | 203 × 85 × 56 mm |
| Accessories (built-in): | Hand strap, lens cap, USB cable, wrist strap, rechargeable battery, charger |
Applications:

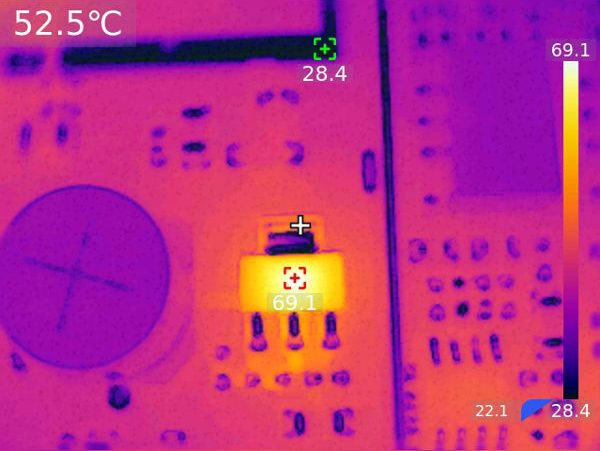

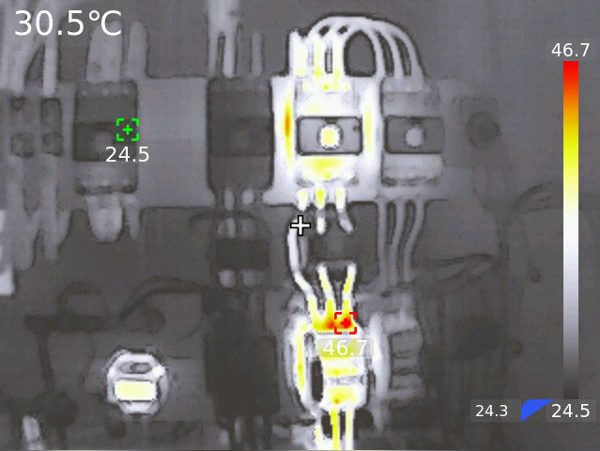

- Electrical Inspection.

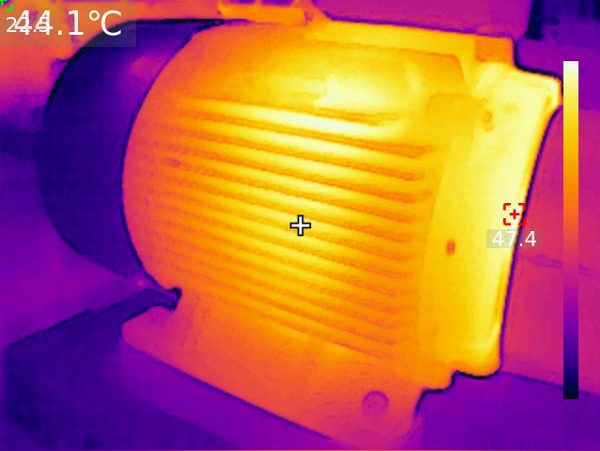

- Mechanical Maintenance.
- Building Diagnostics.
- HVAC System Analysis.
- Automotive Troubleshooting.
- Process Monitoring.
- Preventive Maintenance.
- Energy Auditing.
- Firefighting Support.
- Research & Development.
Package Contents:
- 1x UTi730V thermal imaging camera
- 1x Rechargeable Li-ion battery
- 1x USB cable (Mini USB) for data transfer
- 1x Mini HDMI cable
- 1x Battery charger with international adapters
- 1x Hand strap
- 1x Protective lens cap
- 1x User manual
- 1x Calibration certificate
