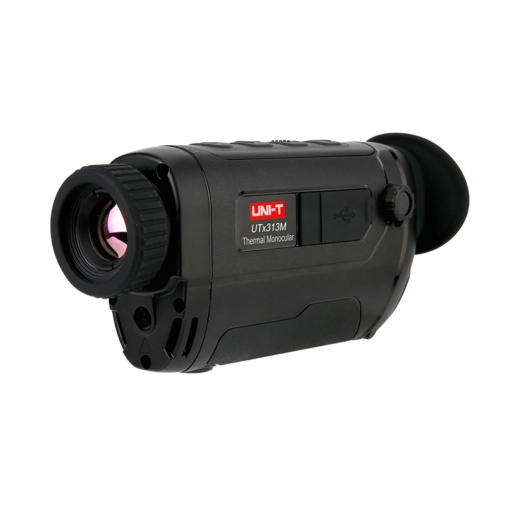

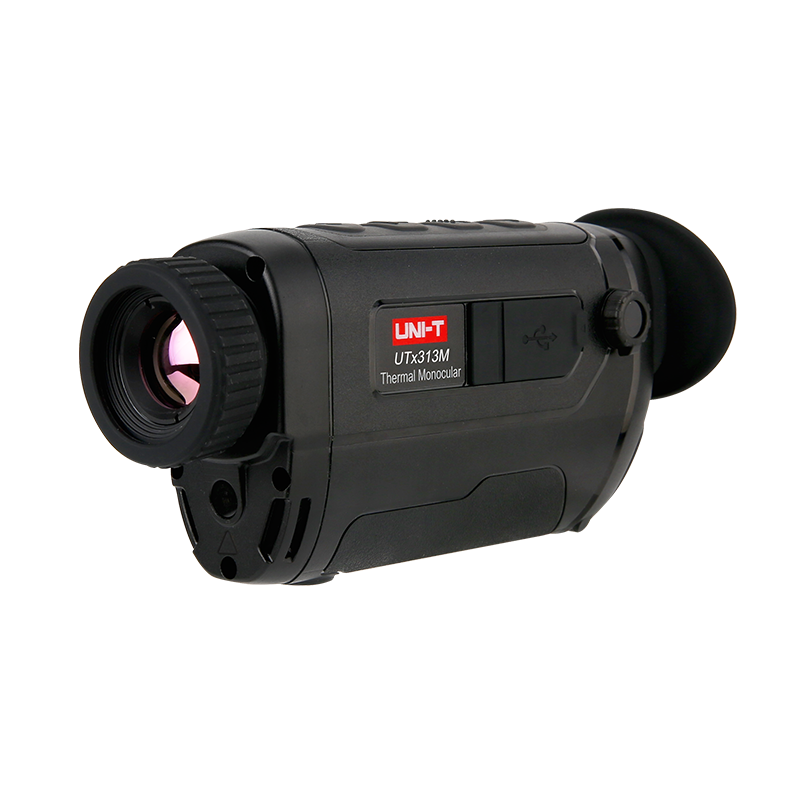

UNI-T UTx313M Thermal Monocular
UTx313M is a lighter weight thermal monocular that equipped with 400×300 IR detector and 0.39″ OLED display screen. Fits human’s palm better. The detachable battery pack design ensures the duration performance. Connecting “Thermal Xplorer” mobile app via Wi-Fi to realize real-time images projection, share the fun with other hunters. UTx313M is a pretty good choice for outdoor lovers
Features:
- Light-weight & compact design
- 0.39″ OLED display screen
- Detachable battery pack (UT-M20)
- Stadiometric ranging
- Smart standby
- E-Compass
- Video recording
- Wi-Fi live streaming
Specifications:
| Technical Data | |
| Display: | 0.39″ OLED (1024×768) |
| Detector type: | UFPA (Vanadium oxide) |
| IR resolution(Pixels): | 400×300 |
| Spectral range: | 8~14µm |
| Pixel size: | 12μm |
| Frame rate: | ≤50Hz |
| Thermal sensitivity(NETD): | ≤25mK |
| Focus: | Manual focus |
| Lens focal length: | 13mm |
| Field of view(FOV): | 20°(H) x 15°(V) |
| Eyepiece relief distance: | 18mm |
| Diopter adjustment: | -4D~+5D |
| Functions | |

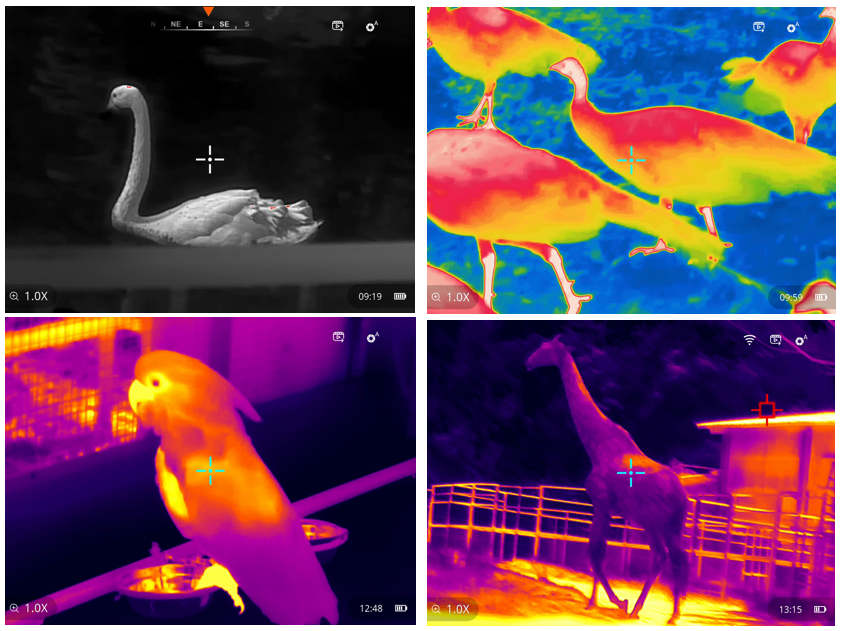

| Color palettes: | Black hot, White hot, Hottest, Ironbow, Rainbow |
| Digital zoom: | 2x, 4x, 8x / 1.0~8x continuous |
| Scene modes: | Bird, Forest, Rock |
| Calibration modes: | Auto, Manual, Background |
| Stadiometric ranging: | √ |
| Smart standby: | √ |
| Hot trace: | √ |
| E-Compass: | √ |
| PIP: | √ |
| Video recording: | √ |
| Photo viewing: | Device Local, PC, APP |
| Wi-Fi download photo: | √ |
| Wi-Fi live streaming: | √ |
| Video output: | Type-C interface |
| Analysis software: | APP (Android & iOS) |
| General Characteristics | |
| Battery: | 3200mAh detachable Li-ion battery (UT-M20) |
| Operating time: | Approx. 4 hours |
| USB: | Type-C |
| Storage: | 16GB Internal |
| Image storage format: | PNG |
| Video storage format: | MP4 |
| Protection: | IP67 & 2m drop proof |
| Certificates: | EAC, CE, FCC, RoHS, FDA |
| Languages: | EN, FR, DE, ES, IT, RU, UA |
| Weight: | 357g |
| Dimension: | 160mmx71.5mmX38.5mm |
| Packing Details | |
| Standard accessories: | Type-C USB cable, Hand Strap, Cloth Bag, Charging Base, Rechargeable Li-ion battery×2, Quick Start Guide, Tool Box |
Applications:
- Wildlife Observation.
- Hunting.
- Search and Rescue (SAR).
- Security and Surveillance.
- Home and Property Inspection.
- Outdoor and Camping Safety.
- Electrical Maintenance.
- Automotive Diagnostics.
- Boating and Maritime Navigation.
Package Contents:
- 1x UTx313M Thermal Monocular
- 1x Battery Pack (UT-M20)
- 1x Type-C USB Cable
- 1x Carrying Case
- 1x Lens Cloth
- 1x User Manual
