| Mfr. Part # | ZX-TYPEB-2-WCM4 |
| Package | Plugin |
| Datasheet | ZX-TYPEB-2-WCM4 |

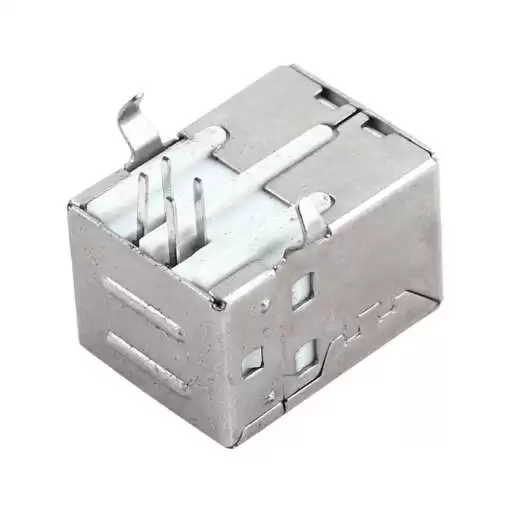

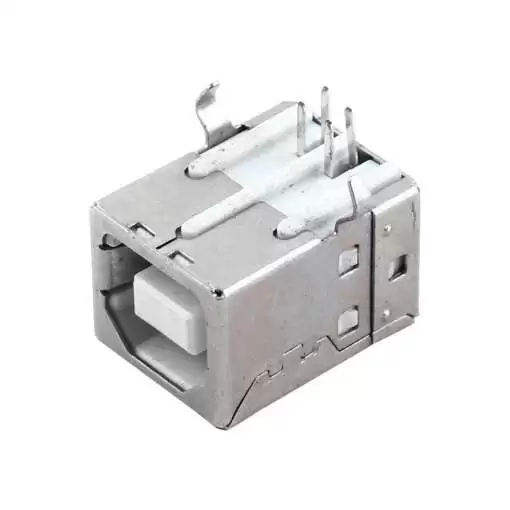

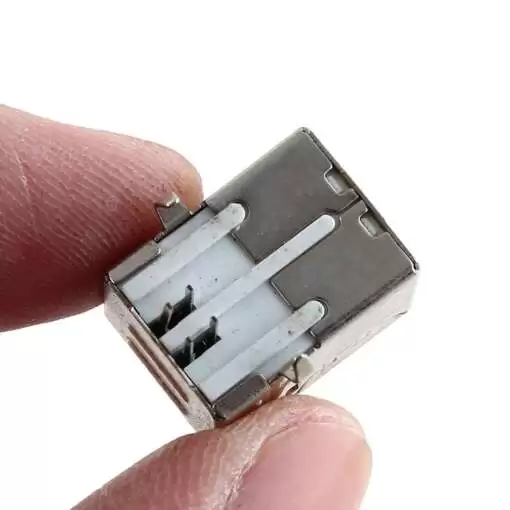

| Description | 1.5A USB 2.0 1 260℃ Right-Angle 4P Male -20℃~+70℃ Type-B Plugin USB Connectors ROHS |
Specifications
| Attribute | Value |
| Category | Connectors/USB Connectors |
| Datasheet | ZX-TYPEB-2-WCM4 |
| RoHS | |
| Current Rating – Power (Max) | 1.5A |
| Standard | USB 2.0 |
| Number of Ports | 1 |
| Welding Temperature (Max) | 260℃ |
| Mounting Style | Right-Angle |
| Number of Contacts | 4P |
| Gender | Male |
| Operating Temperature Range | -20℃~+70℃ |
| Connector Type | Type-B |
