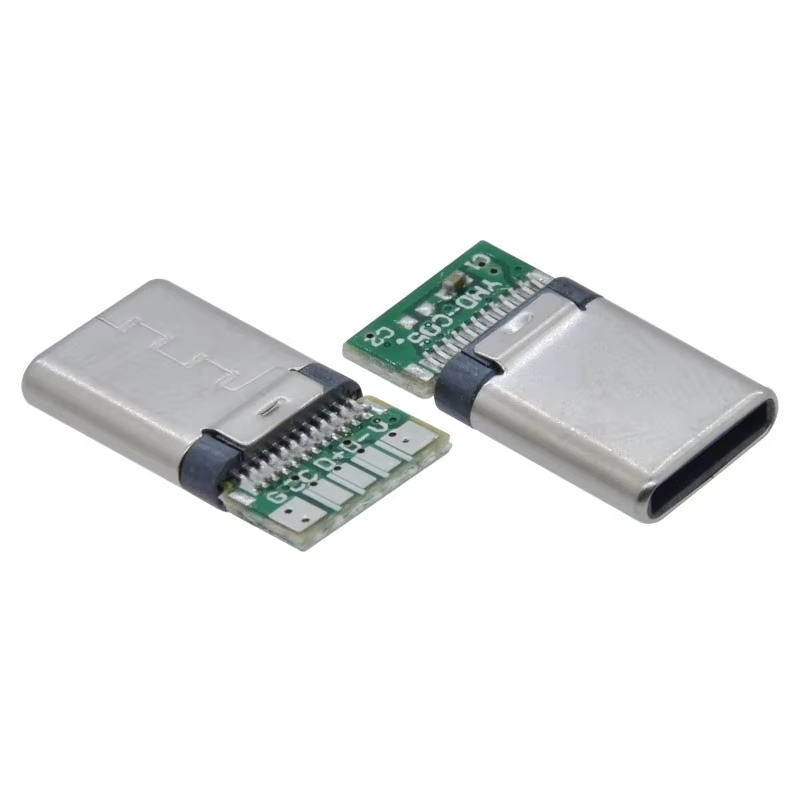

USB Type-C Male PD Fast Charging 5A Solder wire Adapter 5 Pin with Capacitor
The USB Type-C Male PD Fast Charging 5A Connector Solder Wire Adapter 5 Pin with Capacitor is a compact connector designed for custom power cable and charging applications. It features a USB Type-C male plug with accessible solder terminals, making it easy to connect wires directly for DIY projects, cable repair, and custom power connections.
This adapter includes a capacitor to help improve power stability and reduce electrical noise in the connected circuit. The 5-pin configuration provides the essential power and configuration connections required for USB Type-C charging applications. It is suitable for fast-charging and high-current power projects when used with compatible USB Type-C cables, chargers, and properly designed circuits.
Features:
- USB Type-C male connector.
- Supports PD fast charging applications.
- Designed for high-current power connections.
- 5-pin solder wire connection.
- Integrated capacitor.
- Compact adapter design.
- Reversible USB Type-C plug.
- Suitable for custom cable assembly.
- Easy wire soldering.
- Suitable for DIY and repair applications.
Specifications:
| Specification | Value |
|---|---|
| Connector Type | USB Type-C Male |
| Number of Pins | 5 Pins |
| Connection Method | Solder Wire |
| Maximum Current | 5A |
| Charging Type | PD Fast Charging Compatible |
| Additional Component | Integrated Capacitor |
| Primary Function | Power and Charging |
| Connector Orientation | Reversible |
Pinout:
| Pin | Connection | Description |
|---|---|---|
| VBUS | Power | Positive Power Line |
| GND | Ground | Negative Power Line |
| CC | Configuration Channel | USB Type-C Configuration / PD Communication |
| D+ | Data Positive | USB Data Positive |
| D- | Data Negative | USB Data Negative |
Applications:
- USB Type-C fast charging cables.
- Custom PD power cables.
- High-current USB power connections.
- DIY electronics projects.
- Cable repair and replacement.
- Portable power projects.
- USB Type-C power adapters.
- Electronic prototypes.
- Custom charging solutions.
Package Includes:
- 1 × USB Type-C Male PD Fast Charging 5A Solder Wire Adapter 5 Pin with Capacitor.
