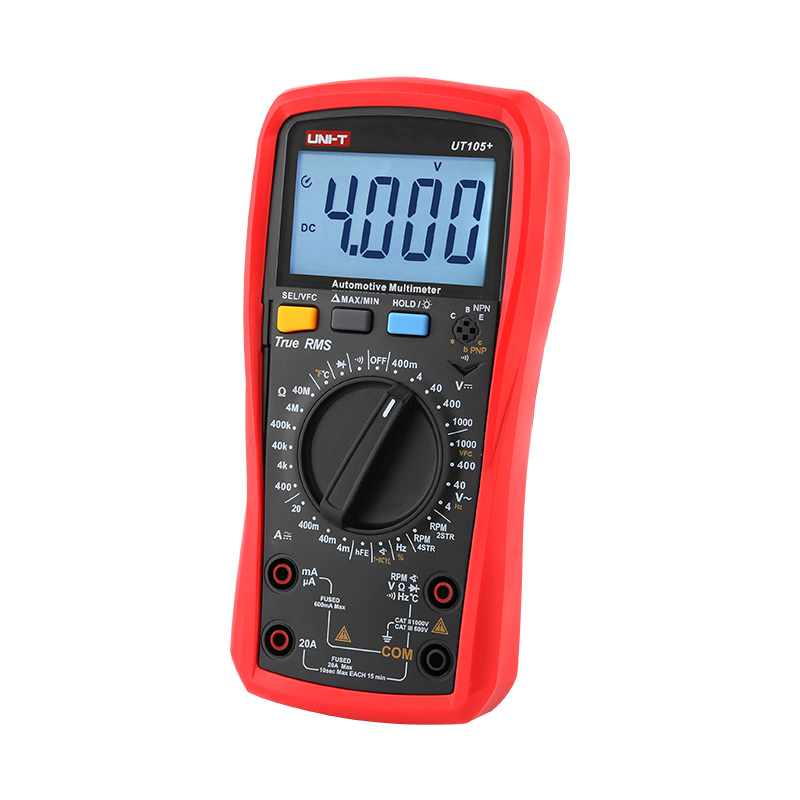

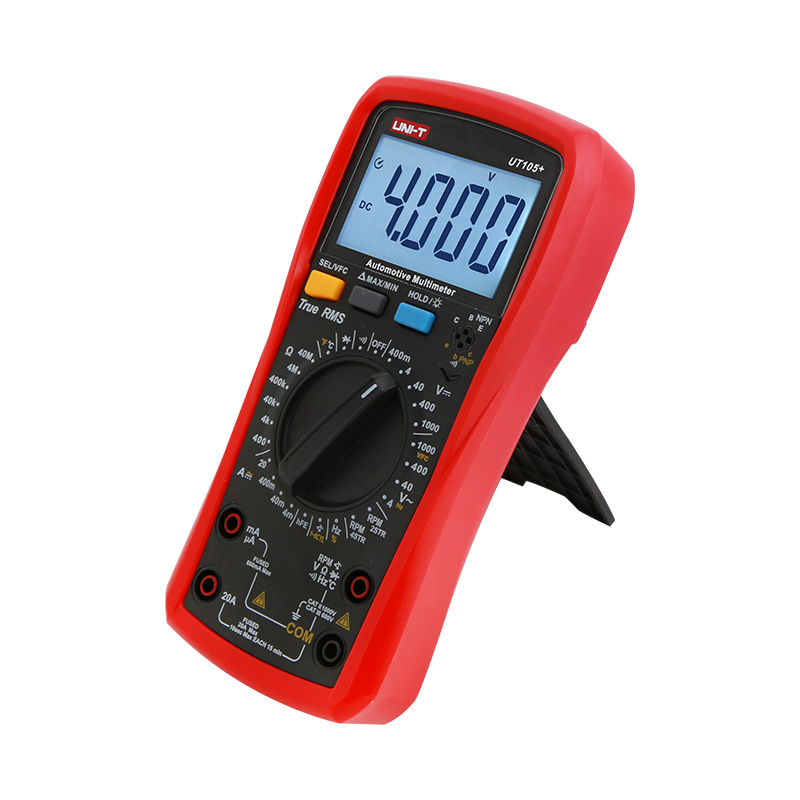

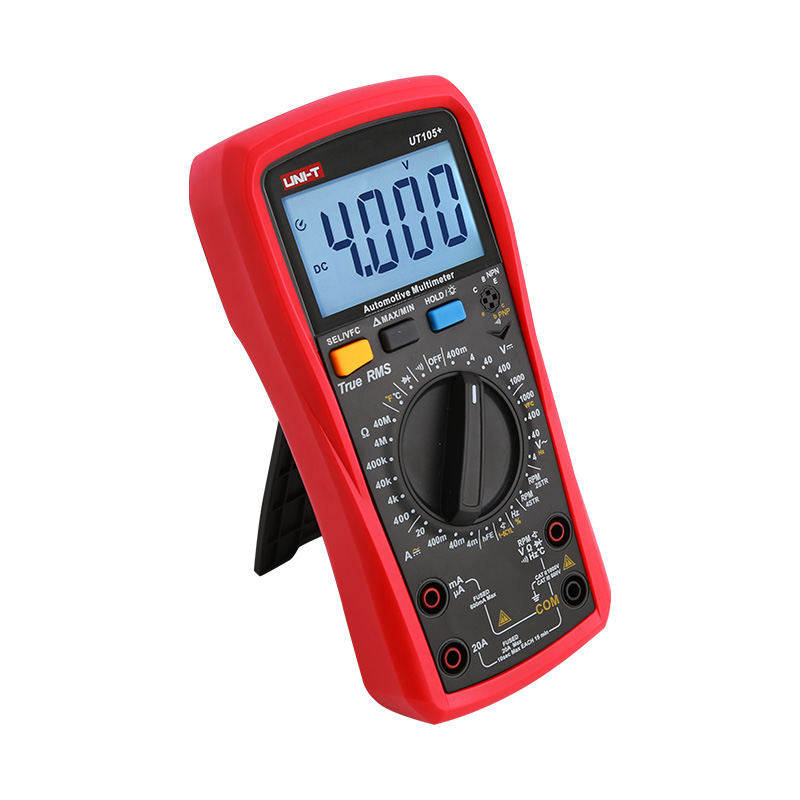

UT105+ Handheld Automotive Multi-purpose Meter
The UNI-T UT105+ Handheld Automotive Multi-purpose Meter is a professional True RMS automotive multimeter designed specifically for vehicle diagnostics, electrical maintenance, and industrial troubleshooting. Combining traditional multimeter functions with advanced automotive measurement capabilities, the UT105+ is an ideal tool for automotive technicians, electricians, maintenance engineers, and electronics professionals.
Features:
- True RMS Ensures accurate measurements on non-linear and distorted AC waveforms.
- AC/DC Voltage Measures high-voltage circuits up to 1000V AC and DC.
- AC/DC Current Measures current up to 20A (maximum of 10 seconds exposure).
- VFC 1000V Mode Variable Frequency Drive voltage measurement for accurate diagnostics on complex motor drives.
- Dwell Angle Supports automotive testing for 1 to 8 cylinders (1-8CYL).
- Engine RPM Measures engine speed for both 2-stroke and 4-stroke engines (2STR/4STR).
- Advanced Testing Includes specialized capacitance measurement, pulse width analysis, and a dedicated 12V battery test.
- Multi-Functional Diagnostic Covers standard temperature, resistance, and frequency measurements.
- Utility Modes Features data hold, relative (REL) mode, and duty cycle analysis.
- Component Testing Built-in functions for safe diode and transistor testing.
- Backlit Display Large LCD screen with a backlight for clear reading in dark working environments.
- Safety Ratings Compliant with industrial safety standards CAT II 1000V and CAT III 600V.
Specifications:
| Parameter | Value |
|---|---|
| DC Voltage (V) | 400mV/4V/40V/400V/1000V, ±(0.5%+3) |
| AC Voltage (V) | 4V/40V/400V/1000V, ±(0.8%+3) |
| AC Current (A) | 4mA/40mA/400mA/10A (20A for 10s max), ±(1.0%+8) |
| DC Current (A) | 4mA/40mA/400mA/10A (20A for 10s max), ±(0.8%+8) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ, ±(0.8%+3) |
| Capacitance (F) | Not available on UT105+ |
| Frequency (Hz) | 10Hz~10MHz, ±(0.1%+5) |
| Temperature (°C) | -40°C~1000°C, ±(1.0%+3) |
| Temperature (°F) | -40°F~1832°F, ±(1.5%+5) |
| VFC | 1000V, ±(2.0%+10) |
| RPM | 2STR: ±(3.0%+5), 4STR: ±(3.0%+3) |
| Dwell Angle | 1CYL(0~356.4°)/2CYL(0~178.2°)/3CYL(0~118.8°)/4CYL(0~89.1°)/5CYL(0~71.3°)/6CYL(0~59.4°)/8CYL(0~44.5°), ±(3.0%+5) |
| Pulse Width | Not available on UT105+ |
| Display Count | 4000 |
| Manual Range | Yes |
| Continuity/Diode/Transistor | Yes |
| Duty Cycle | Yes |
| High Voltage Alarm | Yes |
| High Voltage Overload Alarm | Yes |
| Large Current Alarm | Yes |
| Low Battery Indication | < Approximately 2.4V |
| Backlight | Yes |
| Auto Power Off | Approximately 15 minutes |
| Data Hold | Yes |
| Max/Min/Relative Mode | Yes |
| VFC | Yes |
| 12V Battery Test | No |
| Safety Rating | CAT II 1000V / CAT III 600V |
| Power | AAA 1.5V × 2 |
| Product Color | Red + Gray |
| Product Net Weight | 348g (Including Batteries) |
| Product Size | 183mm × 88mm × 56mm |
| Standard Carton Measurement | 420mm × 320mm × 300mm |

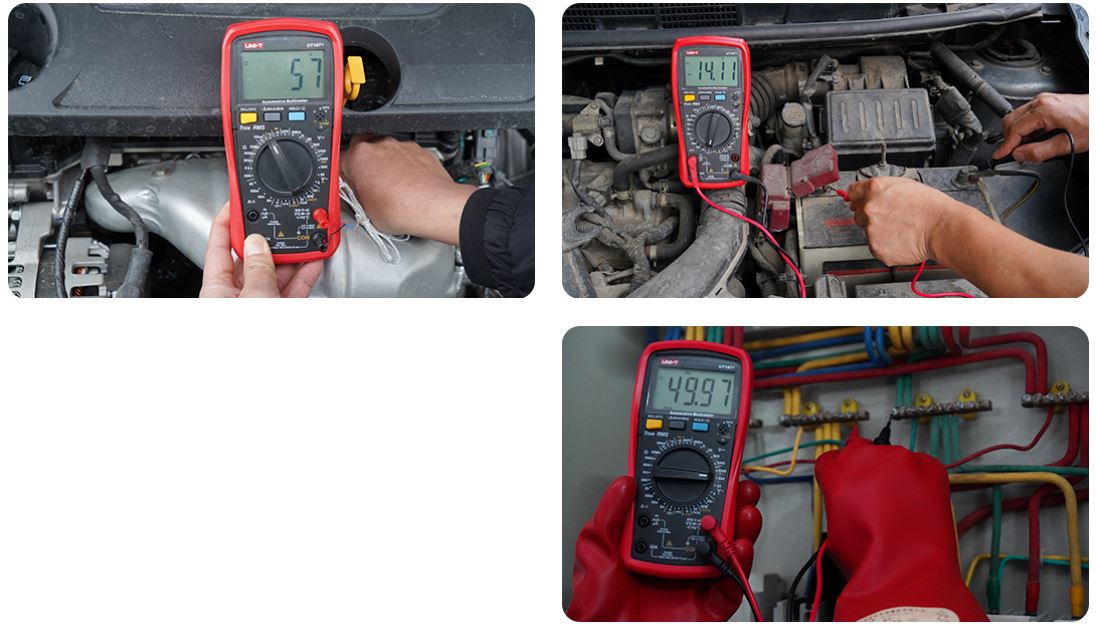

Applications:
- Automotive diagnostics.
- Engine RPM measurement.
- Ignition system testing.
- Vehicle electrical maintenance.
- Hybrid vehicle servicing.
- Industrial electrical troubleshooting.
- HVAC maintenance.
- Variable frequency drive testing.
- Laboratory measurements.
- General electrical maintenance.
Package Include:
- 1x UNI-T UT105+ Handheld Automotive Multi-purpose Meter.
- 1x Test Lead Set.
- 1x k-type thermocouple sensor.
- 2x AAA Batteries.
- 1x User Manual.
