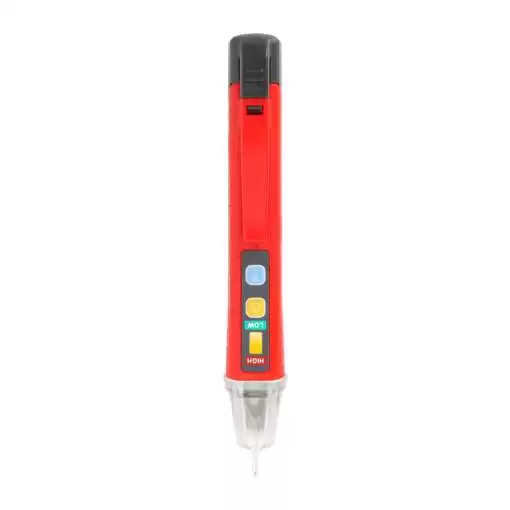

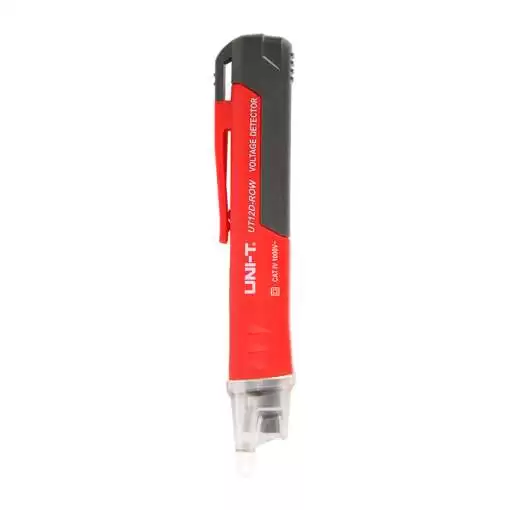

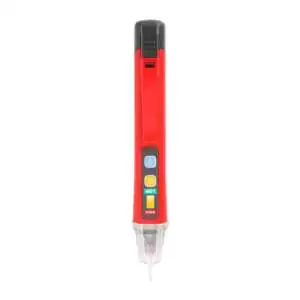

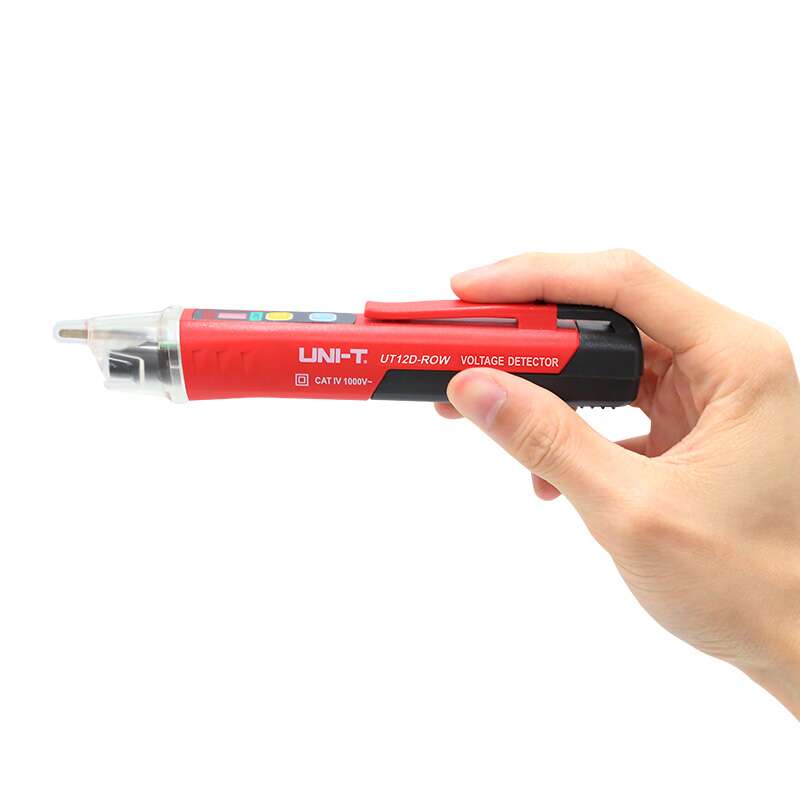

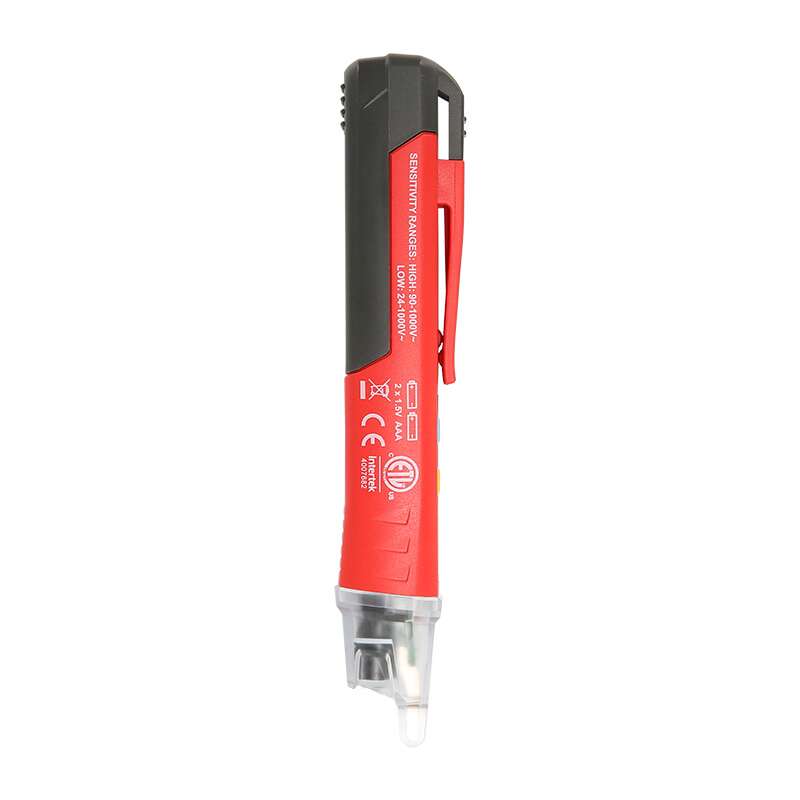

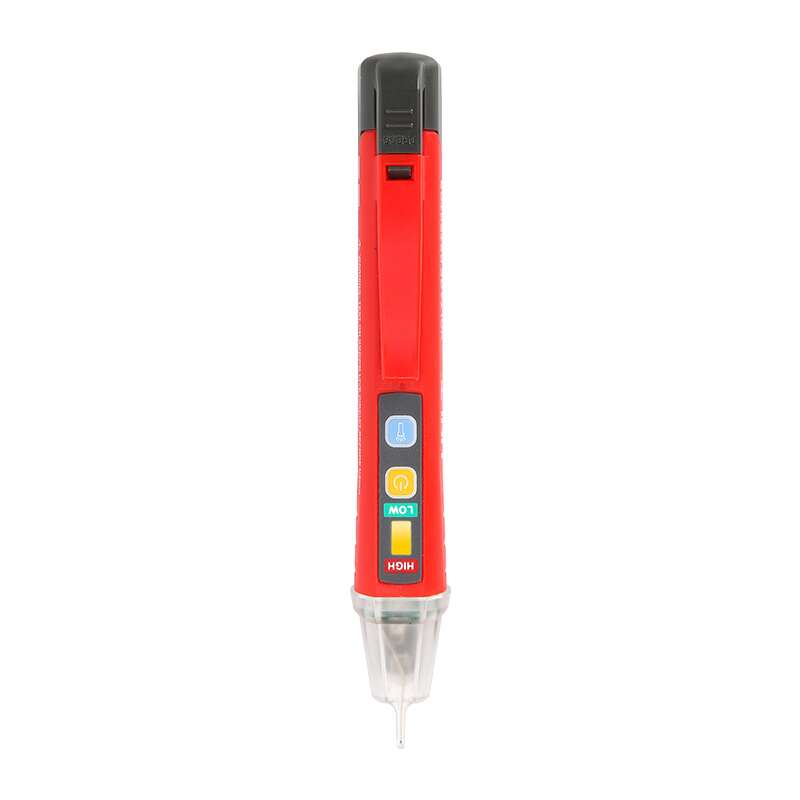

UT12D-ROW AC Voltage Detector
UT12S-ROW/UT12D-ROW non-contact AC voltage detectors are widely used in the maintenance of low voltage equipments such as conductors, cables, sockets, and other electrical/electronics instruments. It is a very handy tool for electricians.
Features:
- Auto power off.
- Buzzer.
- LED indication.
- AC voltage detection.
- High/Low voltage mode (UT12D-ROW).
Specifications:
| Specifications | UT12D-ROW |
| AC voltage (Low) | 24V~1000V |
| AC voltage (High) | 90V~1000V |
| Frequency range | 50/60Hz |
| Built-in flashlight | √ |
| ※Audible (buzzer) and visual (LED) indication | √ |
| Buzzer | √ |
| LED indication | √ |
| Auto power off | √ |
| Low voltage indication | √ |
| Drop test | 1m |
| General Characteristics | |

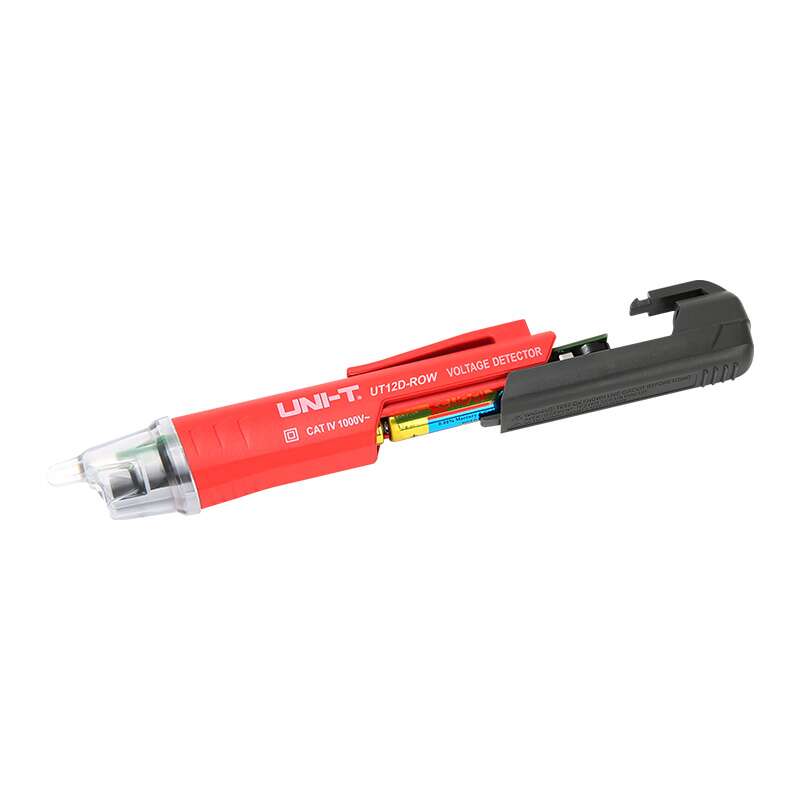

| Power | 1.5V battery (R03) x 2 |
| Product color | Red and grey |
| Product net weight | 50g |
| Product size | 150mm x 18 mm x 23mm |
Applications:
Package includes:
- 1× UT12D‑ROW AC Voltage Detector unit
- 2× R03 (AAA) batteries (standard power source)
- 1× Blister card packaging with English user manual
