| Specifications | Range | Best Accuracy |
| Model | UT61E | |
| DC Voltage (V) | 220mV/2.2V/22V/220V/1000V | ±(0.1%+2) |
| AC Voltage (V) | 220mV/2.2V/22V/220V/750V | ±(0.8%+10) |
| DC Current (A) | 200μA/2200μA/22mA/220mA/2.2A/10A | ±(0.5%+10) |
| AC Current (A) | 200μA/2200μA/22mA/220mA/2.2A/10A | ±(0.8%+10) |
| Resistance (Ω) | 220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ | ±(0.5%+10) |
| Capacitance (F) | 22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF | ±(3.0%+5) |
| Frequency (Hz) | 10Hz-220MHz | ±(0.01%+5) |
| Features | ||
| Display Count | 22000 | |
| Auto Range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 45Hz ～10kHz | |
| Duty Cycle | 0.1% ～ 99.9% | √ |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤7.5V | √ |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| Peak Value | √ | |
| RS-232 | √ | |
| Analog Bar Graph | 46 | |
| Input Protection | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 65mm X 43mm | |
| Product Color | Red and grey | |
| Product Net Weight | 370g | |
| Product Size | 180mm X 87mm X 47mm | |
| Standard Accessories | Battery, Test Lead, Multi-Purpose Socket, RS-232 Interface Cable,PC Software CD | |
| Standard Individual Packing | Gift Box, English Manual | |
Sold out

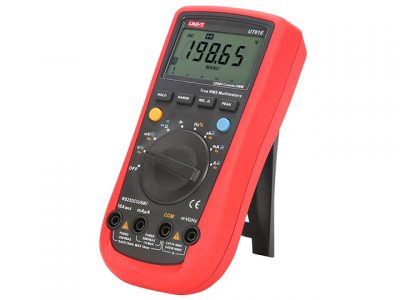

UT61E Modern Digital Multimeter – True RMS
