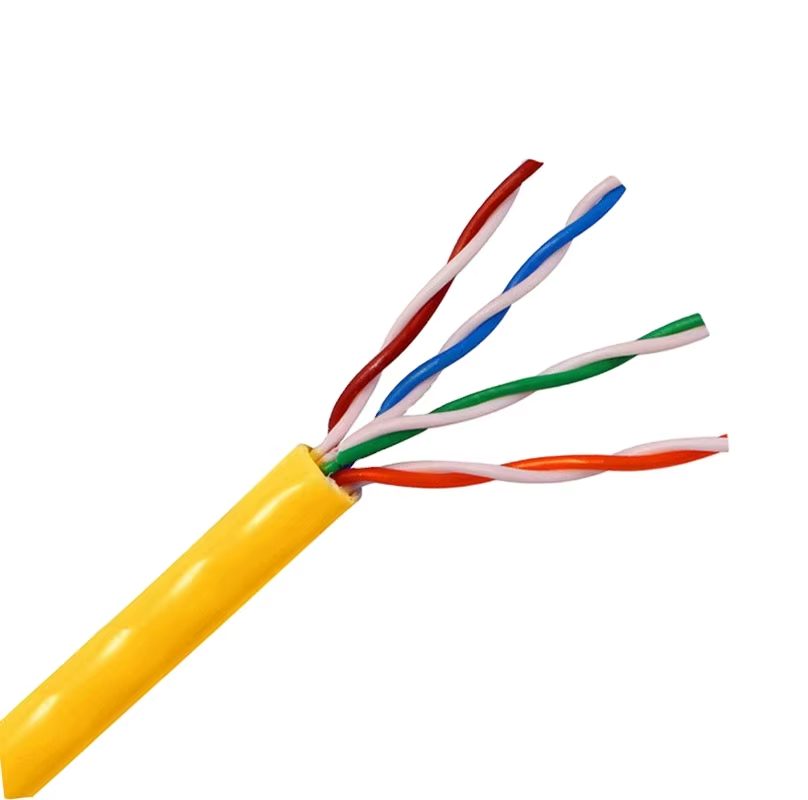

UTP CAT5E TIA/EIA-568B.2 Yellow Ethernet Cable 4 Pair 1meter
The CAT5E UTP (Unshielded Twisted Pair) Ethernet cable, compliant with the TIA/EIA-568B.2 standard, is a high-performance networking cable designed for fast and reliable data transmission. It features four twisted pairs (eight Wires) that minimize interference and improve signal integrity. The 1-meter length is ideal for short-range network connections in homes, offices, and industrial settings.
Features:
- High-Speed Data Transmission where Supports speeds up to 1 Gbps (Gigabit Ethernet) over 100 meters, ensuring smooth connectivity.
- Cable Construction: 4 twisted pairs (8 Wires) to minimize crosstalk and interference.
- Reduced Interference where the twisted pair design minimizes crosstalk and electromagnetic interference (EMI), providing stable network performance.
- Cost-Effective Solution where an affordable option for reliable networking without the added expense of shielded cables.
- Easy Installation where lightweight and flexible, making it easy to install and route in tight spaces.
- Standards Compliance where fully compliant with TIA/EIA-568B.2, ensuring universal compatibility with networking devices.
- Backward Compatibility where compatible with older CAT5 networks and devices, allowing for seamless upgrades.
- Typically terminated with RJ45 connectors featuring gold-plated contacts for corrosion resistance.
- Flexibility and Durability where ideal for both stationary and movable network setups due to its flexible design.
Specifications:
| Property | Specification |
|---|---|
| Category | CAT5E |
| Cable Type | Ethernet cable UTP (Unshielded Twisted Pair) |
| Standard | TIA/EIA-568B.2 |
| Cable Color | Yellow |
| Cable Construction | 4 twisted pairs (8 wires) |
| Color Coding | Follows TIA/EIA-568B.2 scheme: Pair 1: Blue/White-Blue, Pair 2: Orange/White-Orange, Pair 3: Green/White-Green, Pair 4: Brown/White-Brown |
| Connector Type | RJ45 |
| Conductor Size | 24 AWG |
| Bandwidth | 100 MHz |
| Data Rate | Up to 1 Gbps |
| Insulation | HDPE (High-Density Polyethylene) |
| Shielding | UTP (Unshielded Twisted Pair) |
| Conductor Material | Solid Copper |
| Jacket Material | Durable PVC (Polyvinyl Chloride) |
| Length | 1 meter |
| Operating Temperature | -20°C to 60°C |
Applications:
- Home Networking.
- Office Networks.
- Data Centers.
- Security Systems.
- Industrial Applications.
- Educational Institutions.
