VHR-8N JST VH Data Terminal Female 8 Pin Connector Housing 3.96mm With Crimp Terminal
The VHR-8N JST VH Data Terminal Female 8 Pin Connector Housing 3.96mm is a robust and reliable component designed for secure wire-to-board connections. As part of the renowned JST VH series, this housing features an 8-position configuration with a 3.96mm pitch, making it suitable for a variety of electronic applications. Constructed from durable PA 66 material, it ensures longevity and resistance to environmental stress. The natural (white) color aids in easy identification during assembly. This housing is designed to mate with compatible VH series headers, providing a secure connection with its locking mechanism.
Features
- 8-position configuration for multiple connections.
- 3.96mm pitch for compatibility with VH series components.
- Durable PA 66 material for enhanced longevity.
- Natural (white) color for easy identification.
- Locking mechanism for secure mating.
Specifications
| Parameter | Value |
|---|---|
| Number of Positions: | 8 |
| Pitch: | 3.96mm |
| Material: | PA 66 |
| Color: | Natural (white) |
| Applicable Wire Range: | AWG #22 to #16 |
| Insulation O.D.: | 1.7mm to 3.0mm |
| Operating Temperature: | -25°C to +85°C |
Dimensions:
Contact Dimensions:
Applications:
- Industrial equipment
- Consumer electronics
- Automotive systems
- Power supply units
- Any application requiring reliable wire-to-board connections

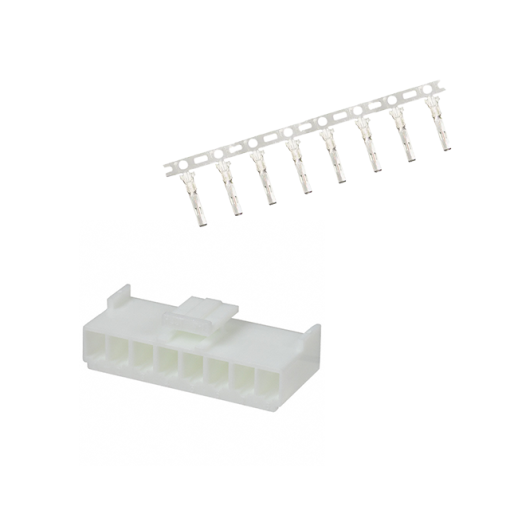

Package Contents:
- 1x VHR-8N Female 8 Pin Connector Housing 3.96mm.
- 8x Metal Contacts.
