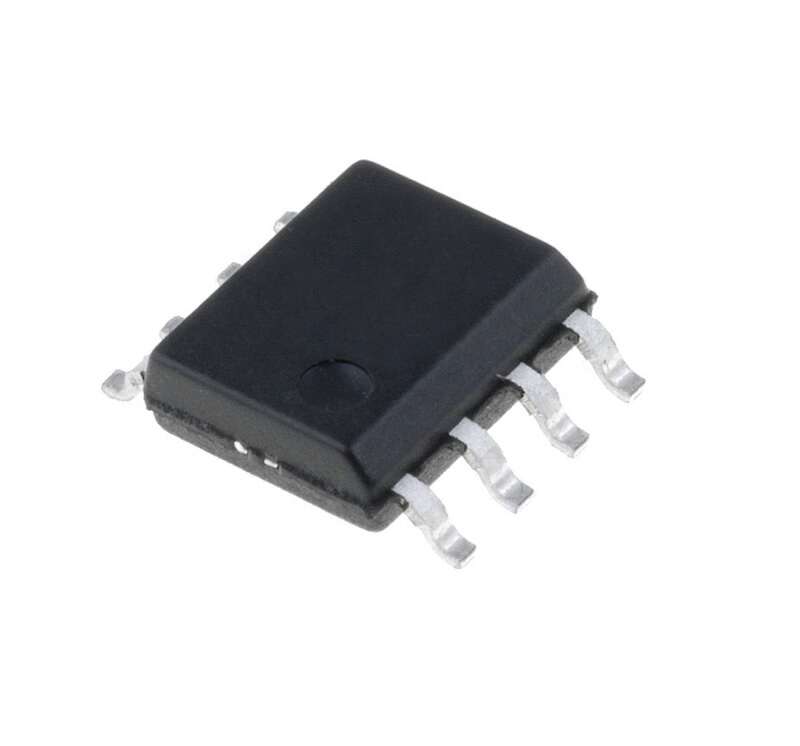

VIPER12A 60kHz 730V 9V~38V SOIC-8 AC-DC Controllers & Regulators
24.00 EGP
Availability:
Out of stock
SKU:3496300084074
Pin Configuration
| Pin Number |
Pin Name |
Description |
| 1,2 |
Source |
Source pin of the switching MOSFET |
| 3 |
Feedback |
Feedback for the SMPS circuit |
| 4 |
VDD |
Vdd voltage 9V to 38V |
| 5,6,7,8 |
Drain |
Drain pin of the switching MOSFET |
Specifications
| Attribute |
Value |
| Category |
Power Supply Chip/AC-DC Controllers & Regulators |
| Operating Temperature |
-40℃~+150℃ |
| Switching Frequency |
60kHz |
| Breakdown Voltage |
730V |
| Output Isolation |
Non-Insulated |
| Supply Voltage |
9V~38V |
Applications
- Low power supply systems
- LED drivers
- Remote Microcontroller designs
- SMPS circuits
- Auxiliary Power Supply
