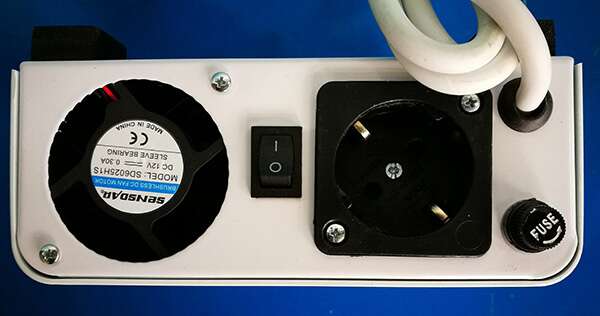

SINGLE PHASE ELECTRONIC VOLTAGE STABILIZER 1KVA
Electronic voltage stabilizer using a microrelay technology with electronic control.
It protects the loads against voltage fluctuations thus ensuring them a longer life and a proper operation under any conditions.
- Rated voltage 230Vac
- Ratings: 1KVA
- Input: 135 VAC / 265 VAC
- Output: 220-225 VAC ± 2%
- Efficiency: 98%
- Correction speed: 100 V / s
- Working temperature: -10 ° C / +60 ° C
Specifications:
| MCU 8 AVR TECHNICAL SPECIFICATION | |
| POWER (VA) | 1.000 |
| INPUT | |
| Input voltage | 135-265 V |
| Input acceptable frequency | 46 .. 65 Hz |
| OUTPUT | |
| Output voltage | 220-225 VAC ± 2% |
| Regulation speed | 100 Volt/second |
| Output frequency | 47 .. 65 Hz |
| Output protection | Short circuit, overload |
| GENERAL | |
| Cooling | Smart fan system |
| Output voltage display | Digital voltmeter |
| MCU Type | AVR ATMEGA 8 |
| Efficiency | > 98% |
| Protection grade | IP30 |
| ENVIRONMENT | |
| Working temperature | -10°C / +40°C |
| Warehouse temperature | -25°C / +60°C |
| Dimensions (WxDxH) cm. | 16.5×7.5×26 |
| Weight (kg) | 4 |
