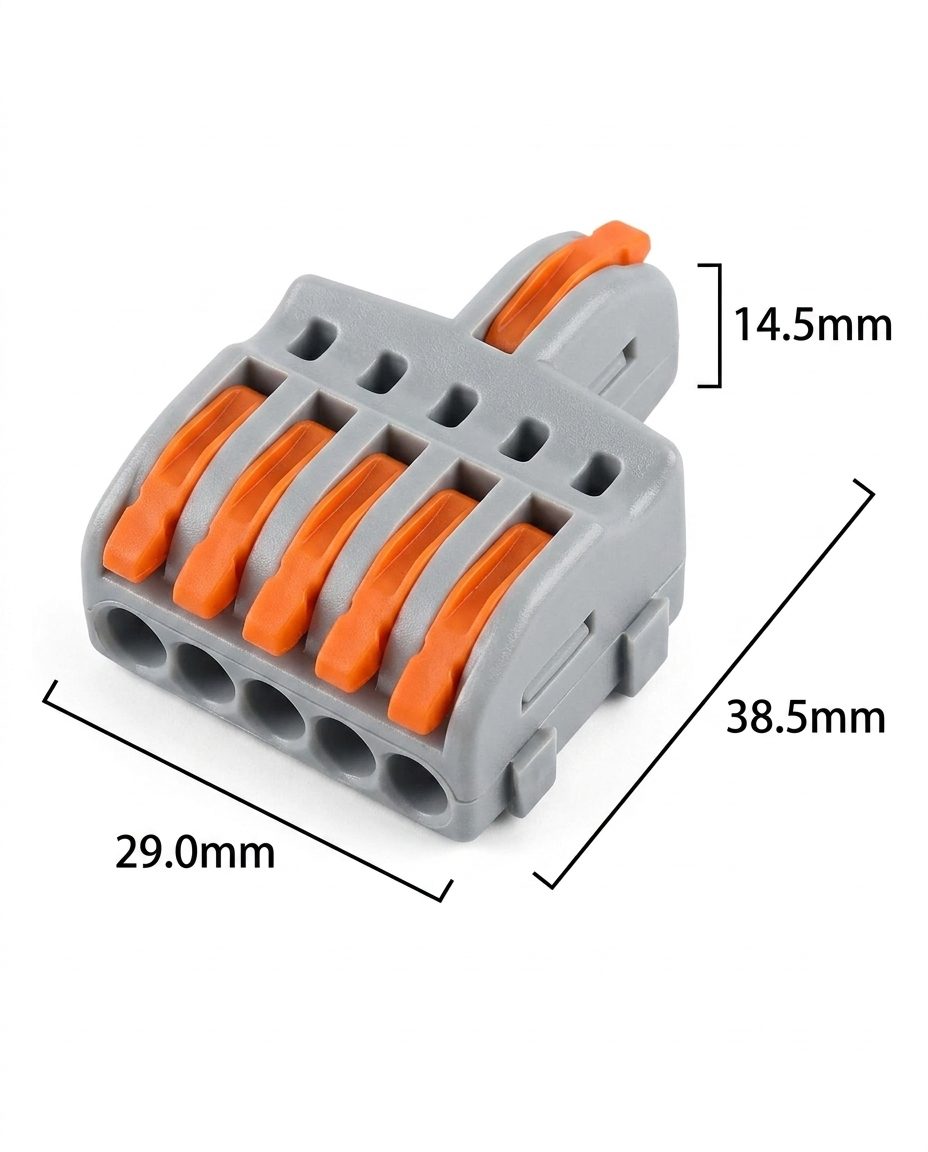

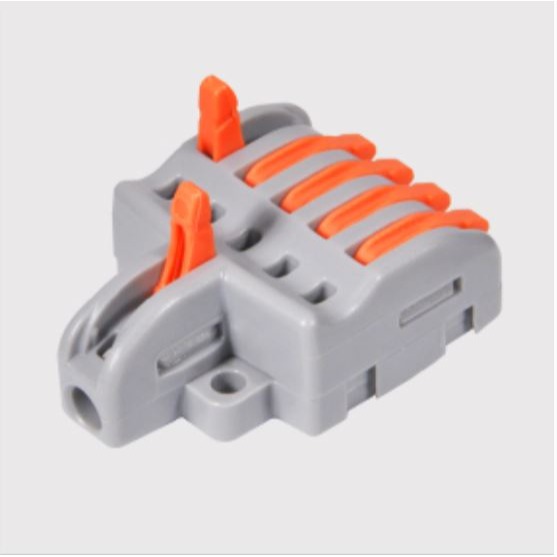

WAGO NV-F15 Panel Mount Wire Connector 1 In 5 Out
The WAGO NV-F15 Panel Mount Wire Connector 1 In 5 Out is a compact lever-operated wire distribution connector designed to connect one input wire to five output wires. The product is listed by Micro Ohm Electronics as an F15 1-in-5-out compact spring-lever distribution connector.
Features:
- 1 In 5 Out configuration one common input connection with five output connections.
- Lever-operated design for quick wire installation and removal.
- Spring-clamp connection for secure wire retention.
- Reusable connection wires can be disconnected and reconnected.
- Compact construction for space-limited wiring installations.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Panel Mount Wire Connector |
| Model | NV-F15 |
| Connection Configuration | 1 In 5 Out |
| Input | 1 Wire |
| Outputs | 5 Wires |
| Connection Type | Lever / Spring Clamp |
| Rated Voltage | 250VAC |
| Rated Current | 32A |
| Wire Size | 0.08–2.5 mm² |
| Maximum Wire Size | 4.0 mm² |
| AWG Range | 28–14 AWG |
| Maximum AWG | 12 AWG |
| Housing Material | PA |
| Housing Color | Gray |
| Lever Color | Orange |
| Mounting Type | Panel Mount |
| Application | Wire Distribution / Branch Connection |
Applications:
- Electrical wire distribution
- Lighting wiring
- Junction boxes
- Control panels
- Electrical cabinets
- Branch wiring
- DIY electrical projects
- Maintenance and repair
- Compact wiring installations
Package Include:
1x WAGO NV-F15 Panel Mount Wire Connector 1 In 5 Out
