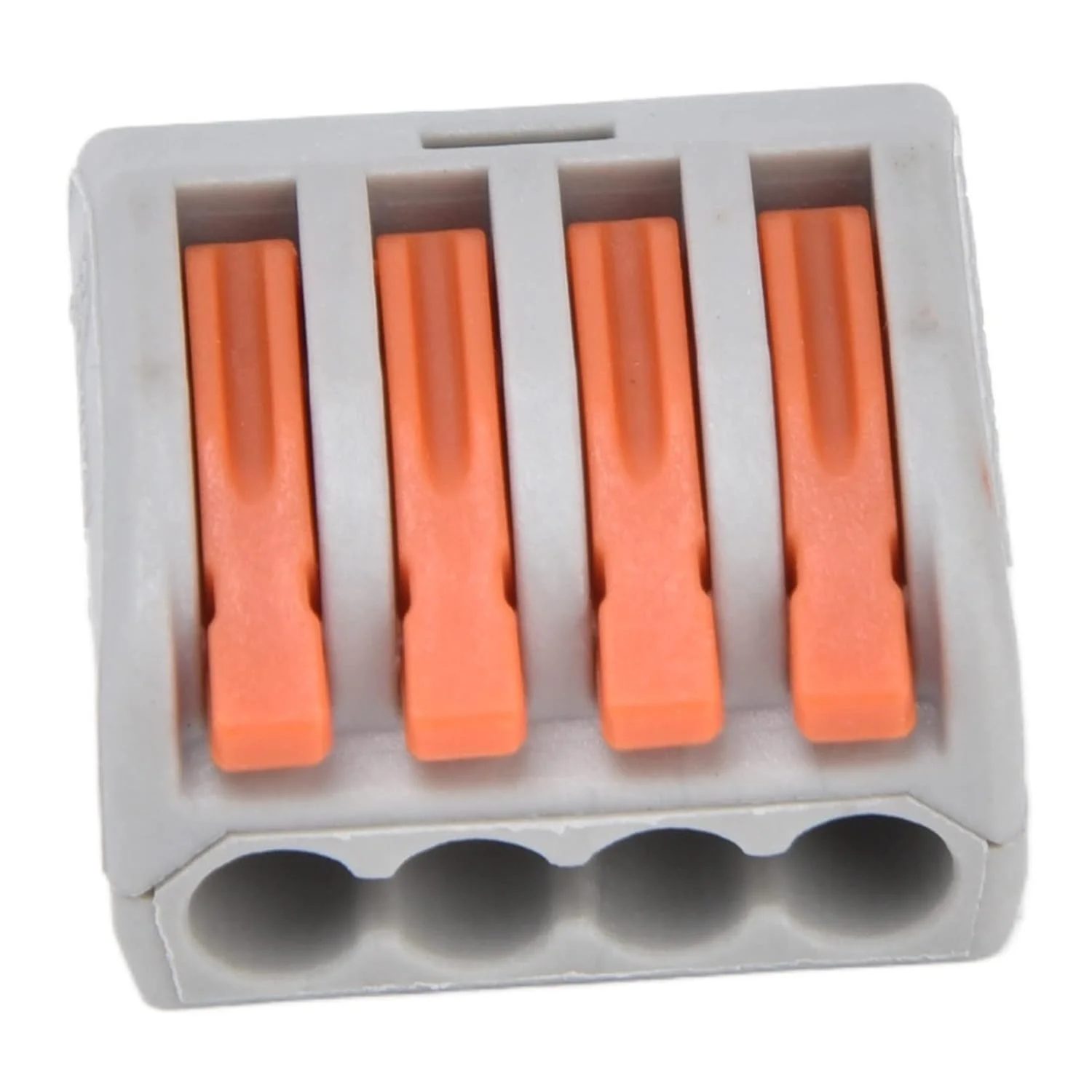

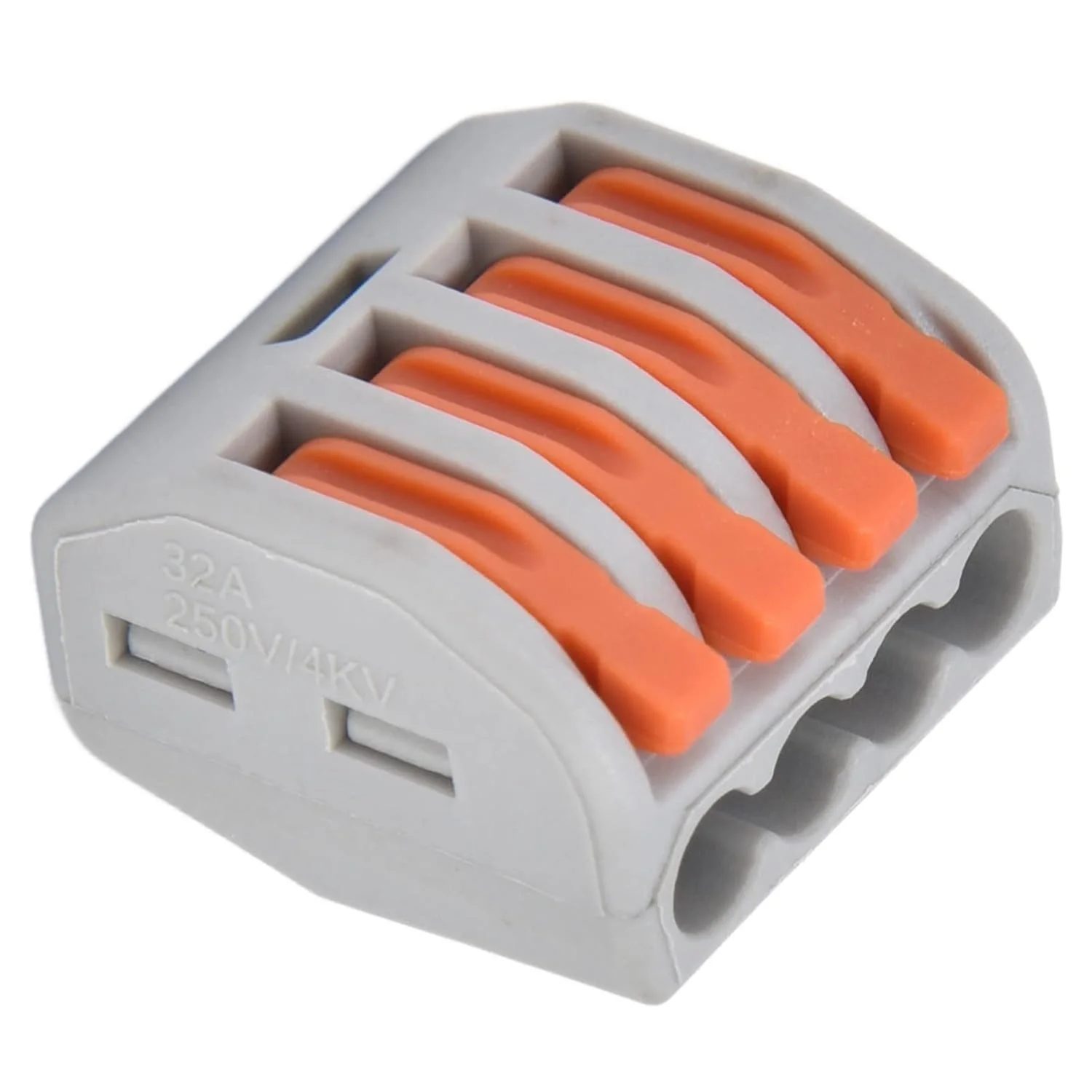

WAGO PCT-214 Parallel Wire Connector 4 Pin
The WAGO PCT-214 Parallel Wire Connector 4 Pin is a compact 4-pin terminal block designed for safe and efficient cable connections. Rated at 32A and 250V, it is ideal for household and industrial electrical wiring applications. This push-in type connector supports quick, tool-free installation of solid or stranded wires, ensuring a reliable and secure electrical connection. With a transparent housing and lever-actuated design, the PCT-214 allows for easy inspection and reusability, making it a practical solution for both permanent and temporary wiring tasks.

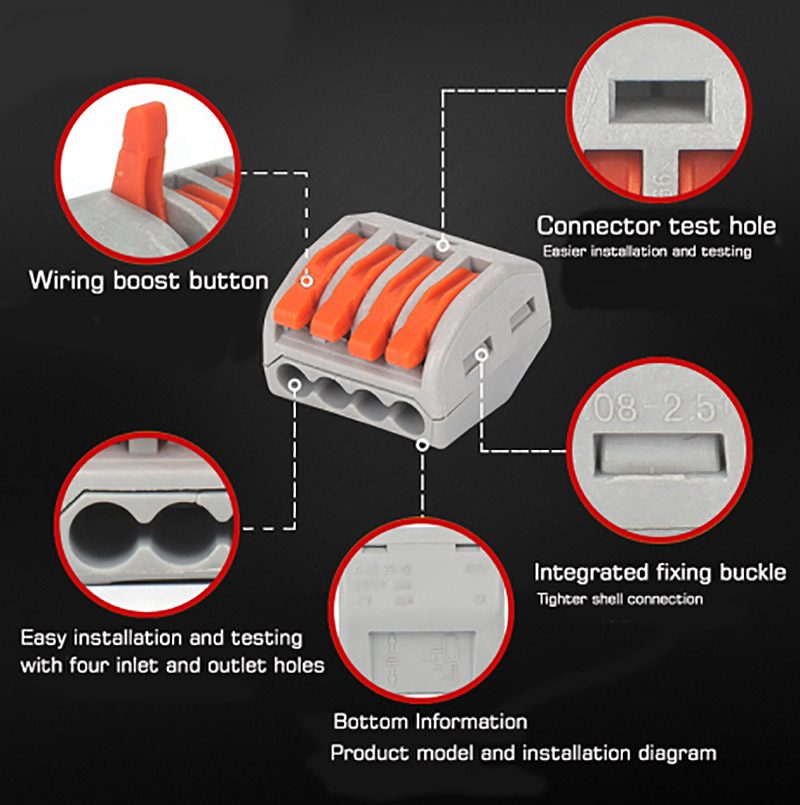

Features:
- 4-Pin Configuration Supports multiple wire connections in a single terminal block, streamlining your wiring process.
- High Current Capacity Rated for up to 32A, suitable for a wide range of electrical applications.
- Wide Voltage Rating Operates at voltages up to 250V, accommodating various electrical systems.

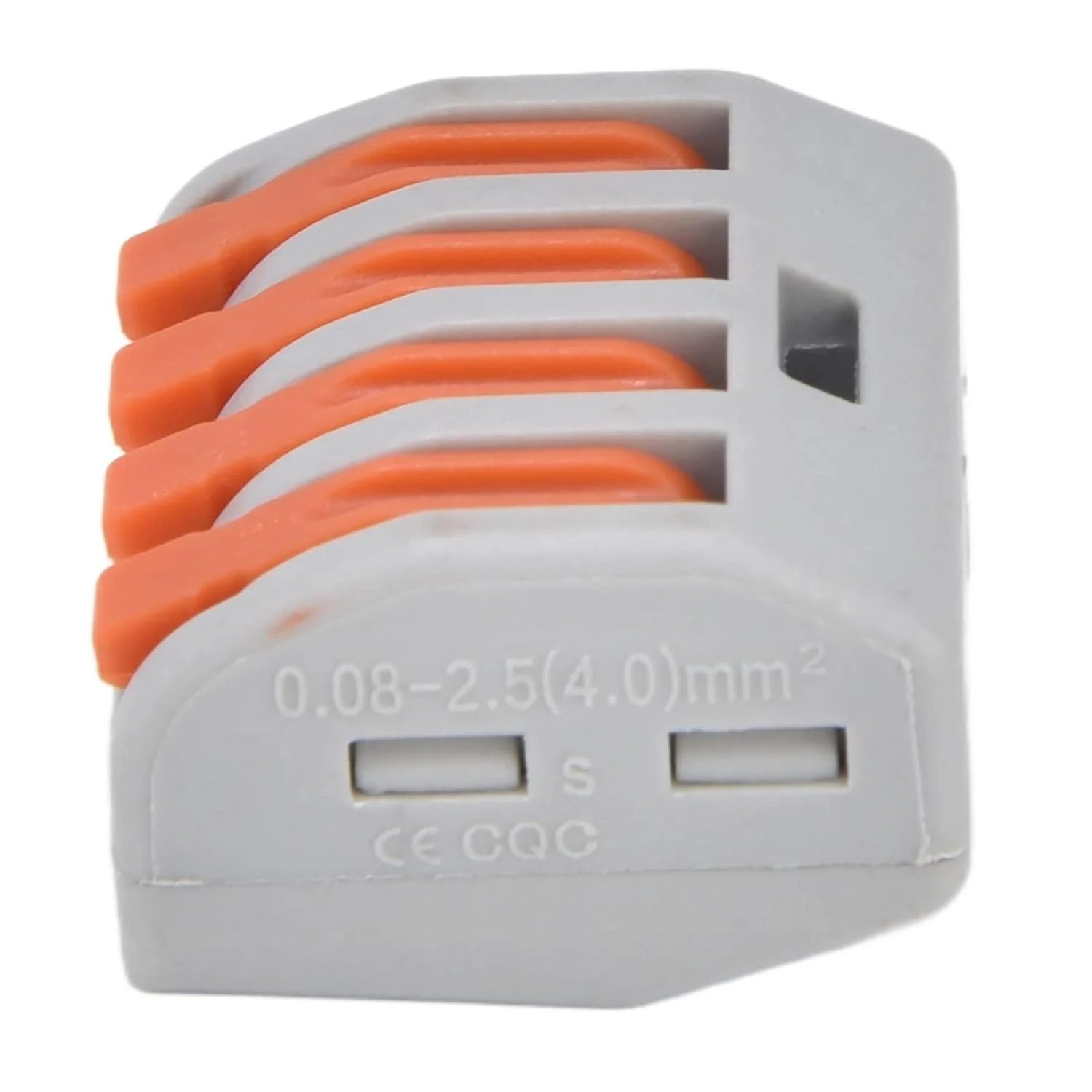

- Versatile Wire Compatibility Compatible with solid, stranded, and flexible wires ranging from 0.08 mm² to 2.5 mm².
- User-Friendly Design Features a lever mechanism for easy and secure wire insertion without the need for tools.
- Durable Construction Made from high-quality materials to ensure longevity and reliable performance.
Specifications:
- Brand: WAGO
- Model: PCT-214
- Connector Type: Wire Connector
- Connection Type: Parallel Connection
- Number of Pins: 4 pin
- Orientation: Straight
- Mounting Type: Free-standing
- Connection Type: Push-in with lever operation
- Reusable: Yes
- Rated Voltage: 250VAC
- Rated Current: 32A
- Rated Power: 4 KW
- Wire Size Compatibility:
- Solid wire: 0.08 mm² to 2.5 mm²
- Stranded wire: 0.08 mm² to 2.5 mm²

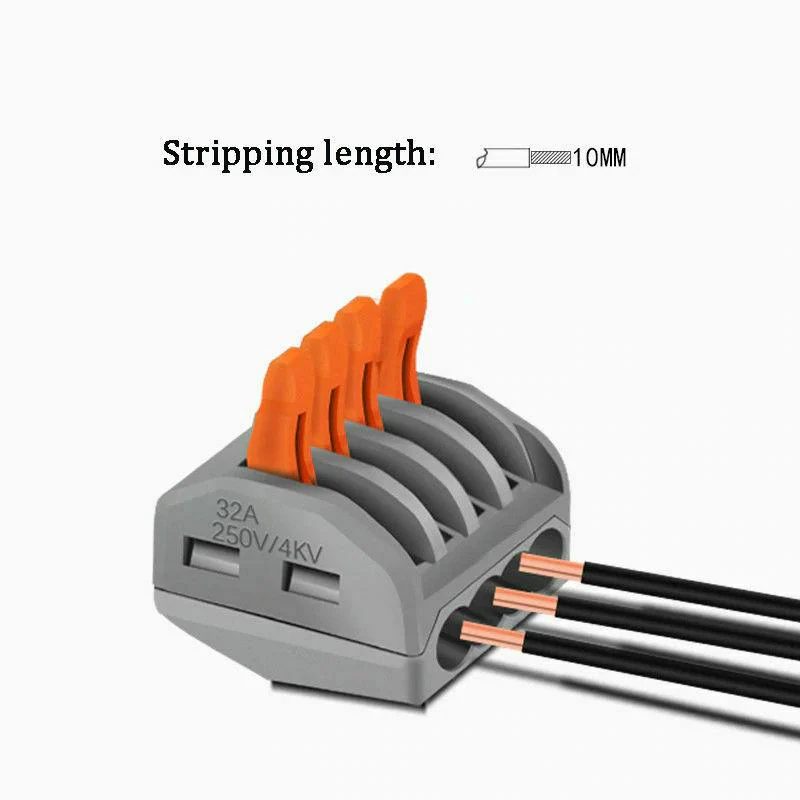

- Strip length: 9 mm to 10 mm

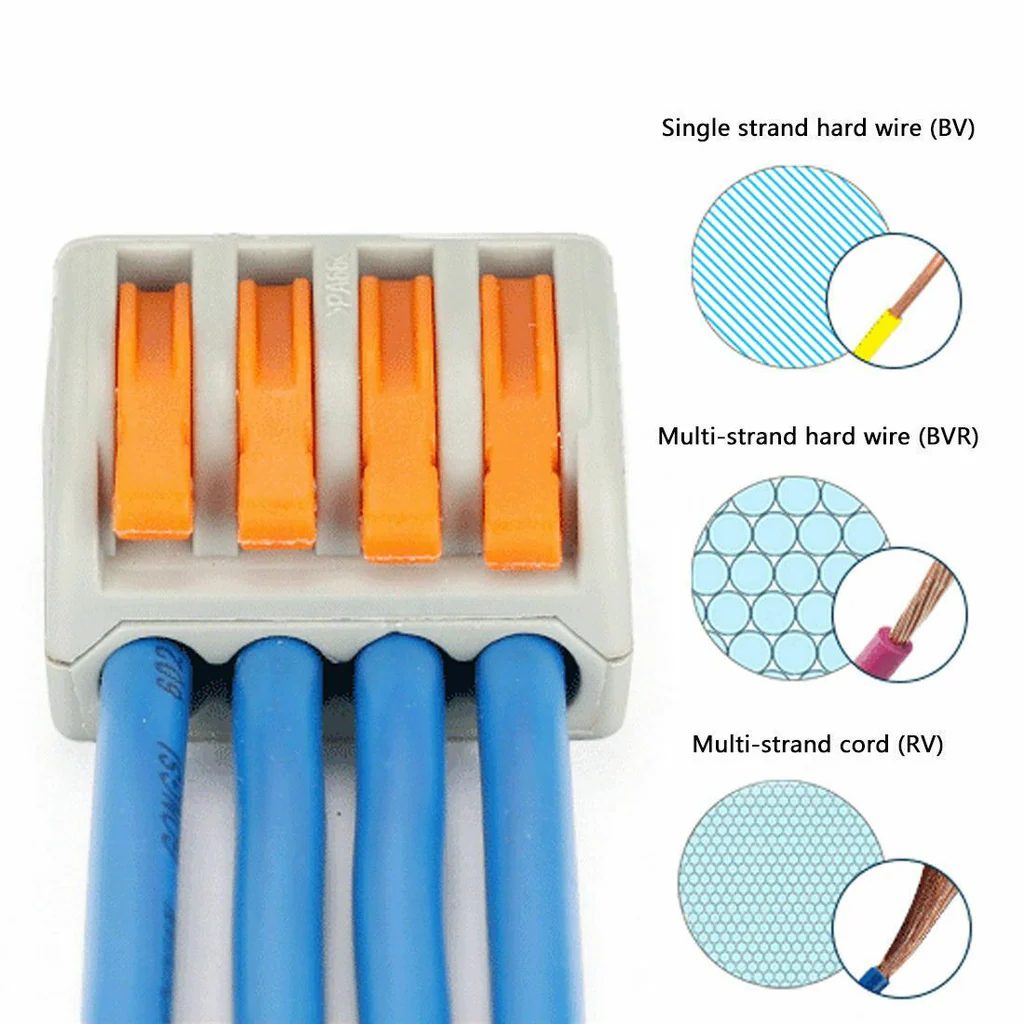

- Wire Type: Solid, stranded, and flexible conductors
- Housing Material: Flame-retardant polycarbonate (PC)
- Contact Material: Copper alloy with tin plating
- Operating Temperature: -40°C to +85°C
- Reusable: Yes, with easy rewire functionality

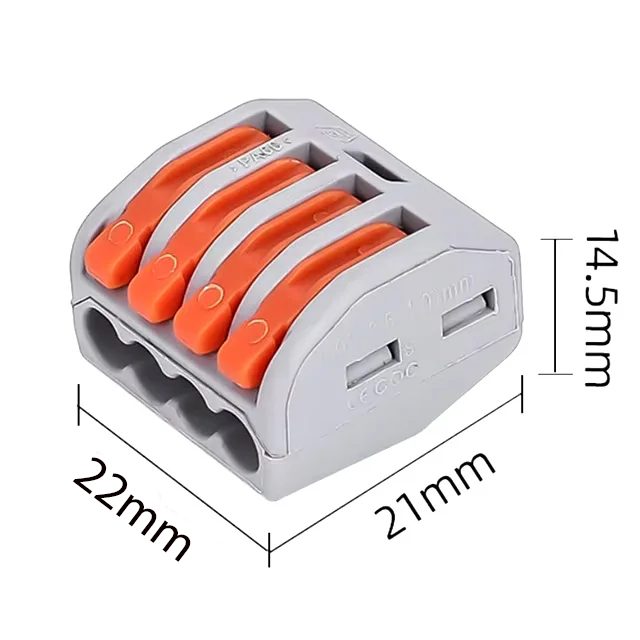

- Dimensions(L X W X H): 21mm X 22mm X 14.5mm

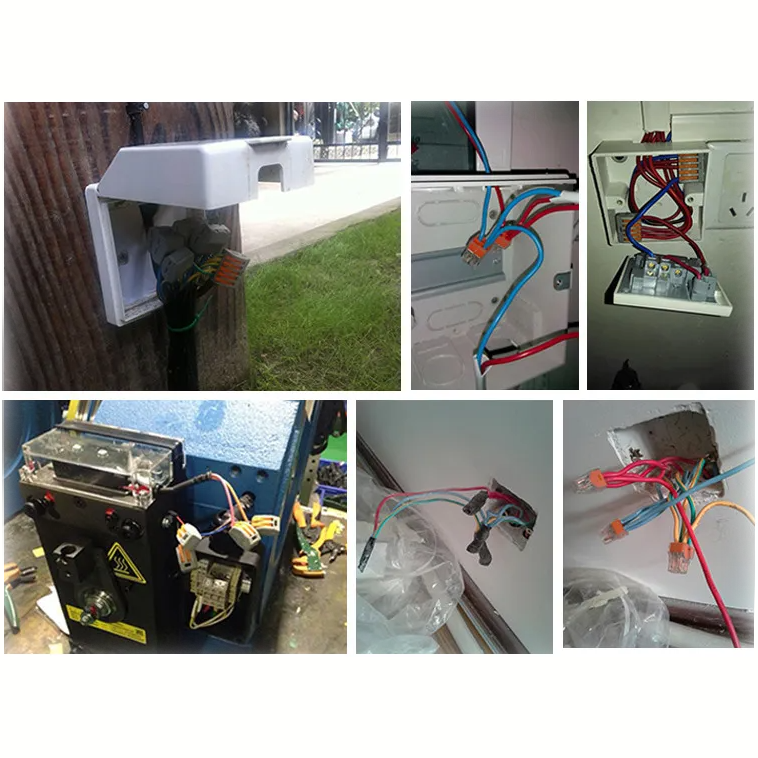

Applications:
- Ideal for residential and commercial electrical wiring.
- Used in lighting installations and ceiling fan connections.
- Suitable for junction box wiring and distribution boxes.
- Common in control panels and terminal connections.
- Handy for DIY electrical repairs and upgrades.
- Used in home automation and smart device wiring.
- Effective for secure connections in industrial equipment.
- Compatible with solid, stranded, and flexible wires.
Package Contents:
- 1 X WAGO PCT-214 Parallel Wire Connector 4 Pin
