Introduction
Wireless charging modules uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device.
This is a new wireless charging module, which could provide 5V@1A (MAX 1.2A) power output. It is using the new technology “resonant magnetic coupling, which will reduce the electricity consumption during power transmission. The transfer efficiency could arrive at 90%. It could meet your most project requests.
Features:
- Stable Power Supply
- Magnetic coupling resonance technique
- Insulation Coil
- Compact Design
Parameter:
- Product Name:5W Wireless Charging Module

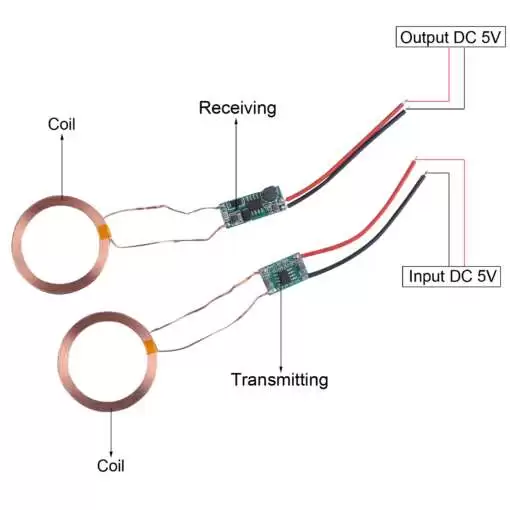

- Working Voltage:DC 5V-12V
- Receiver Module Output Current:1A

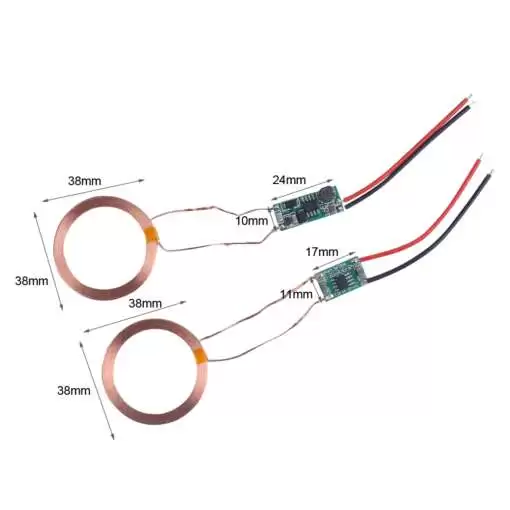

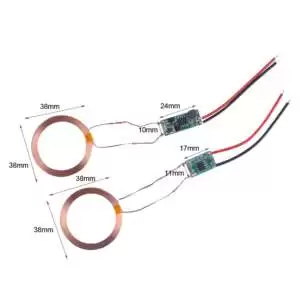

- Transmitter Module Size: 17x11x2.5mm
- Receiving Module Size: 24x10x5.5mm

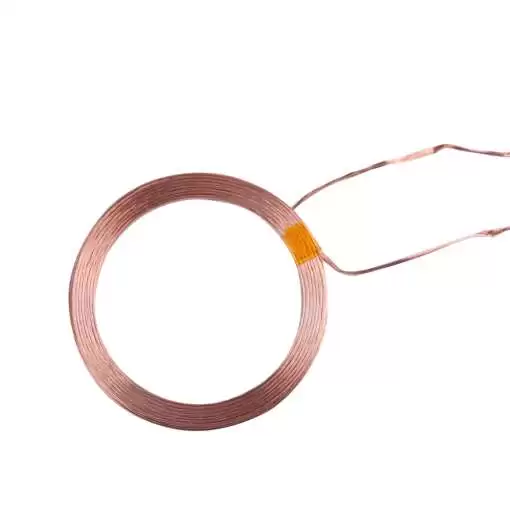

- Coil Diameter: 38mm
- Coil Height: 1.5mm
Shipping List

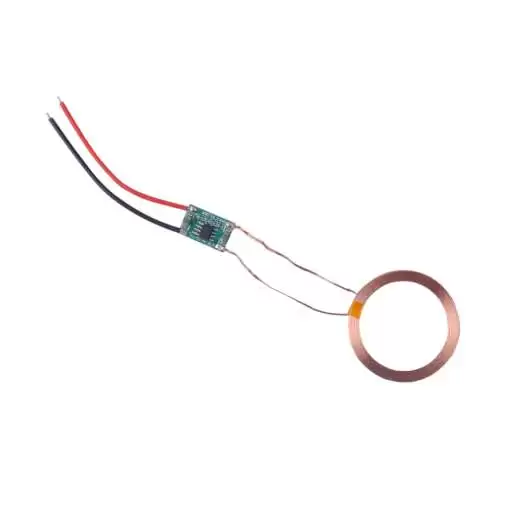

- Transmitting Module x1

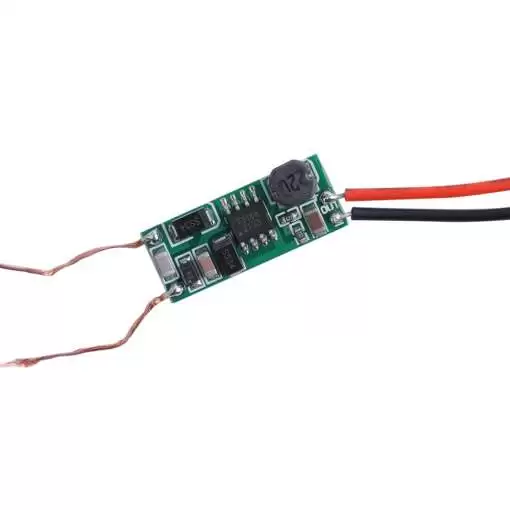

- Receiving Module x1
