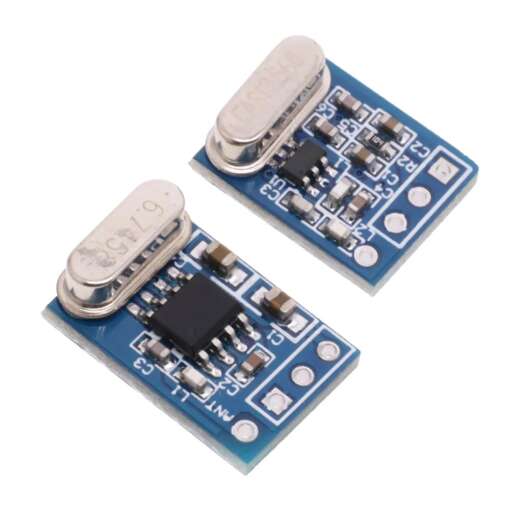

Wireless Transmitter & Receiver Board Module SYN115/SYN480R 433MHz

Transmitter :

• on-board single-chip ASK transmitter chip SYN115/F115
• the module transmitting frequency: 433MHz
• module output power: <10dBm
• the module transmission rate: <10kbps
• the module supply voltage: 1.8-3.6V
• PCB size: 15.1×11.8(mm)

Receiver:

• on-board single-chip wireless SYN480R ASK/OOK receiver chip
• the module receiving frequency: 433MHz
• module receiver sensitivity:-107dBm
• the module transfer rate: 2.5kbps(SWP), 10kbps (FIXED)
• the module supply voltage: 3.3-5.5V
• PCB size: 17.1×11.5(mm)

Applications:

• Fan Controllers
• Remote Power Switches
• Multi-Media Remote Control
• Remote Sensor Data Links
• Infrared Transmitter Replacement
