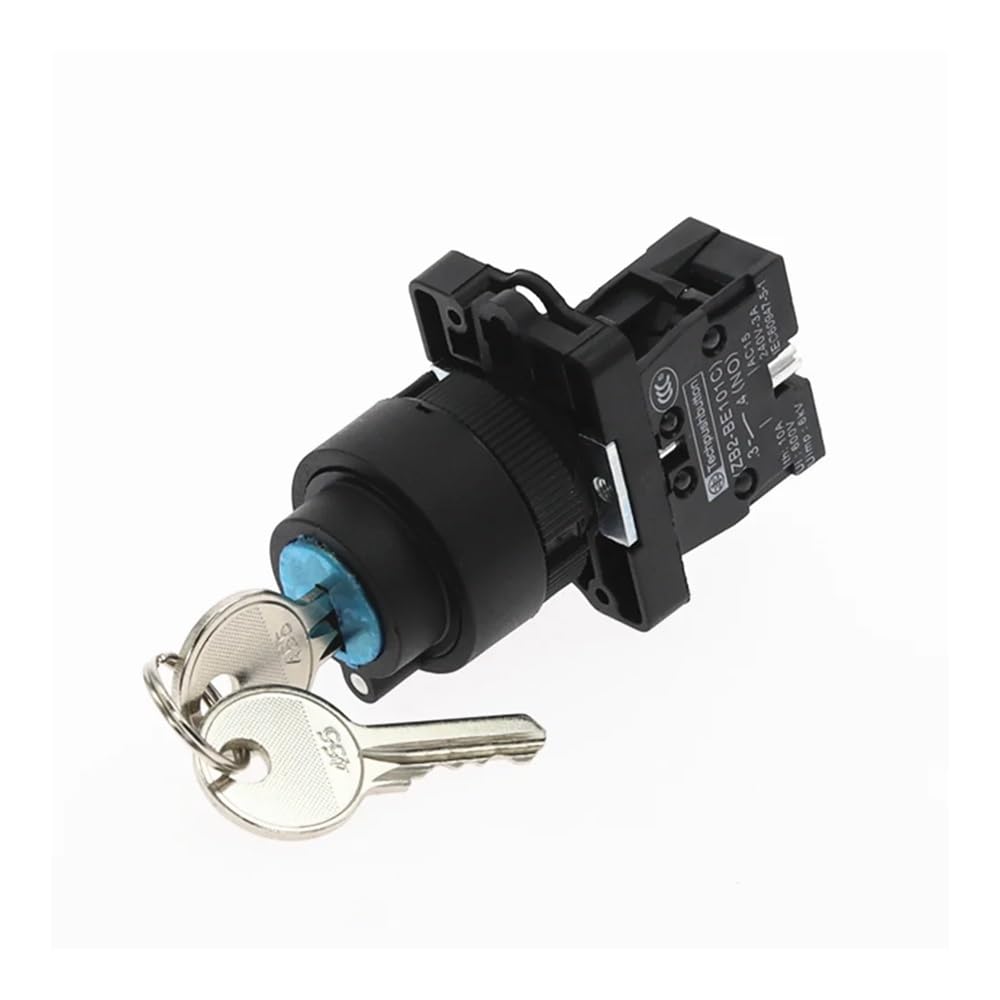

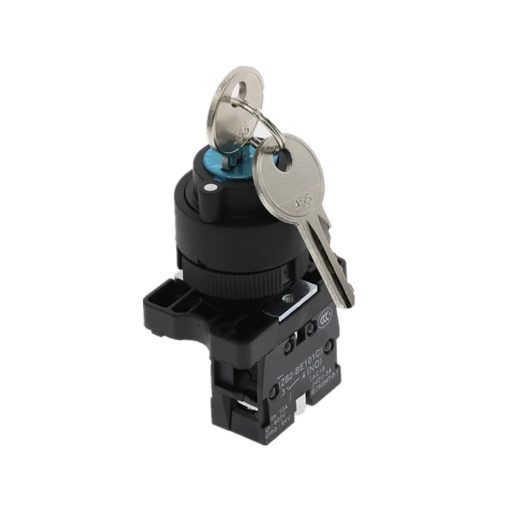

XB2-EG21 Key Selector Switch 22mm 2 Positions 1 Normally Open Contact
The XB2-EG21 is a key-operated rotary selector switch designed for panel mounting in electrical control circuits. Featuring a 22mm standard mounting diameter, it fits seamlessly into standard industrial control panels and pushbutton stations.
The switch operates in 2 positions and is equipped with 1 normally open (NO) contact, making it ideal for simple ON/OFF or enable/disable control functions.

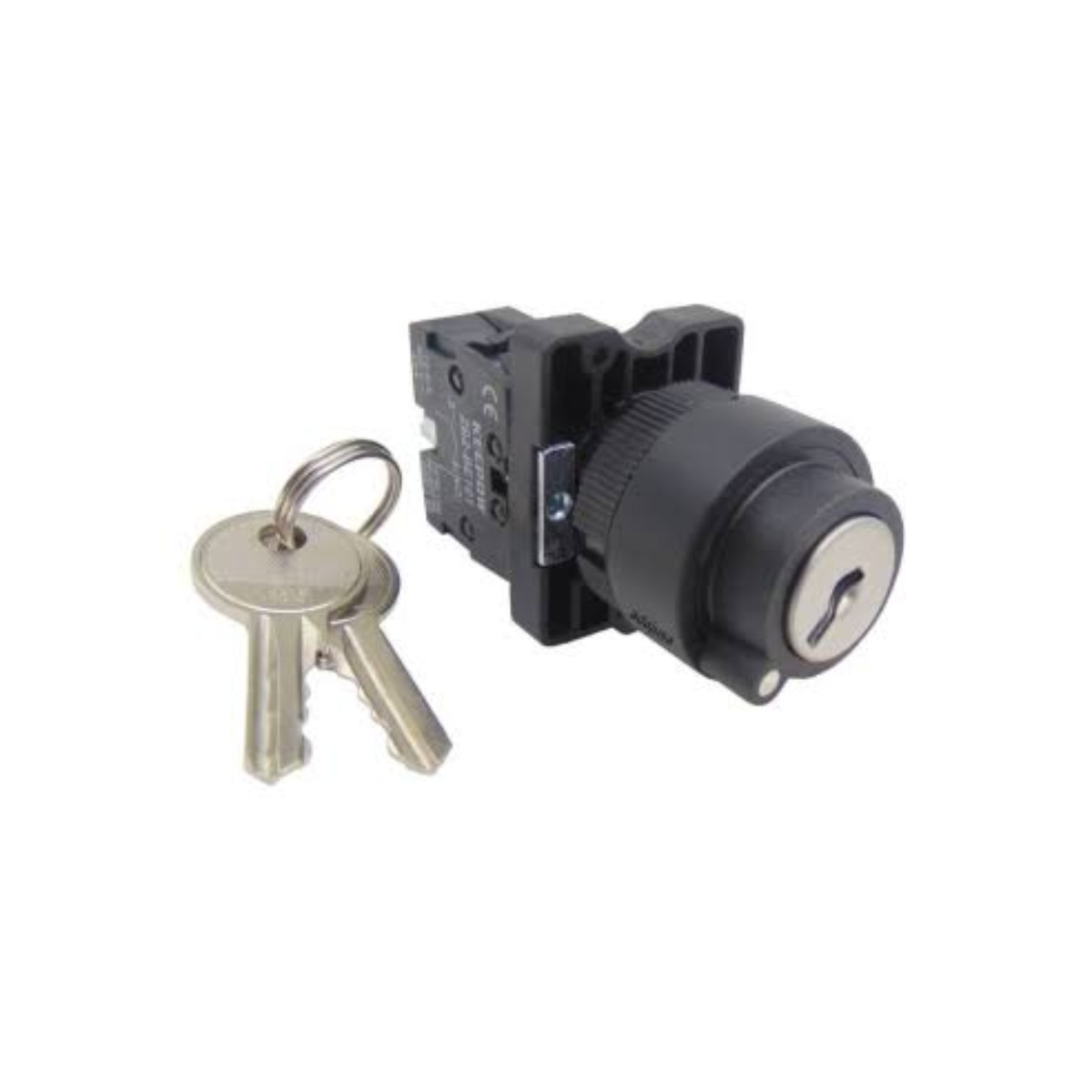

The key-operated mechanism ensures that only authorized personnel holding the correct key can operate the equipment — an essential security feature for machine control, power circuits, and process equipment. Two identical metal keys are supplied with each unit, allowing operation by multiple authorized users.
Finished in durable black, the switch head is compact, robust, and built for daily industrial use.
Features
- Key-operated security
- 2-position selector
- 1 NO contact
- 22mm standard mounting diameter
- 2 metal keys included
Specifications
| XB2-EG21 – Key Selector Switch Specifications | |
|---|---|
| Product / Model | XB2-EG21 |
| Product Type | Key Selector Switch (Rotary, Key Operated) |
| Series | XB2 Series |
| Head Color | Black |

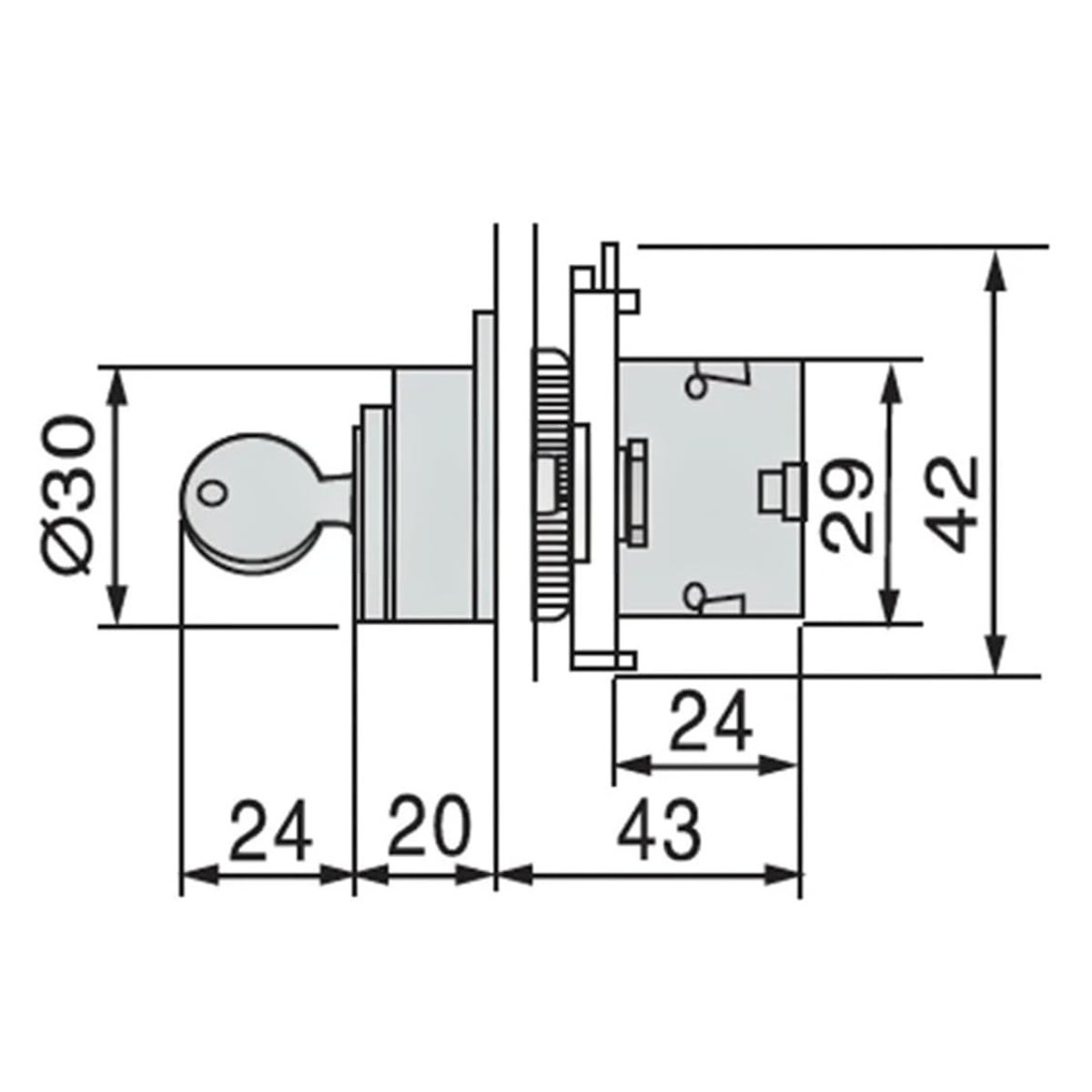

| Mounting Diameter | 22 mm |
| Number of Positions | 2 Positions |
| Contact Configuration | 1 NO (Normally Open) |
| Contact Block Reference | ZB2-BE101C |

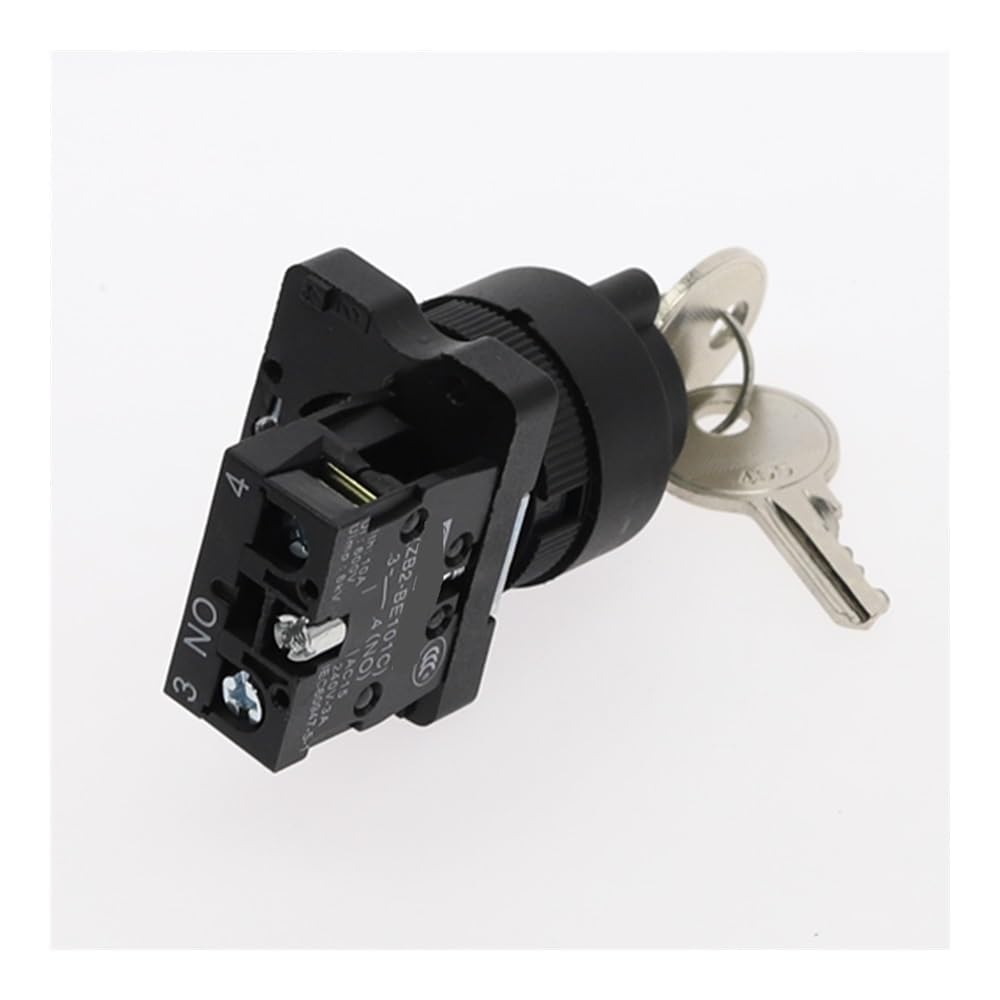

| Terminal Markings | 3 – 4 (NO Contact) |
| Rated Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Voltage Marking (on Block) | AC 220V |
| Number of Keys Supplied | 2 Keys |
| Key Material | Metal |
| Mounting Type | Panel Front Mount |
Applications
- Industrial machine control panels (start/stop authorization)
- Main power ON/OFF switching with keyed access
- Preventing unauthorized operation of equipment and machinery
- Electrical distribution and automation control panels
- Control circuits requiring restricted operator access
- Mode selection in process and manufacturing equipment
- Security interlock applications in commercial electrical systems
Package Content
- 1 x XB2-EG21 Key Selector Switch 22mm 2 Positions 1 Normally Open Contact
- 2 × Metal operating keys
