XD2-PA12 Industrial Joystick 2 Way Stay Put Control Switch (Self Lock)

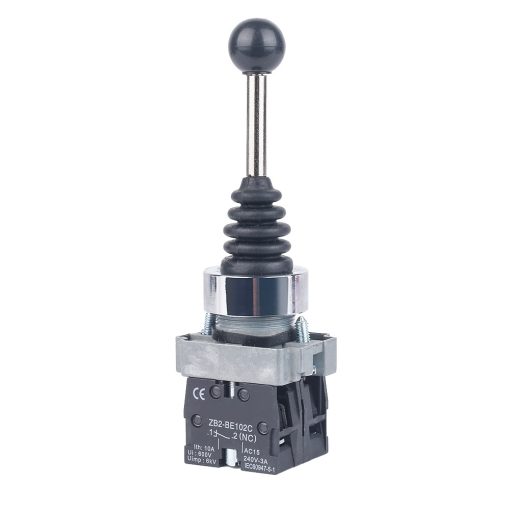

The XD2-PA12 is a robust industrial joystick control switch designed for electrical circuit operation in demanding control environments. It features an ergonomic black spherical ball handle with a protective rubber sleeve, mounted on a durable metal base for long-lasting reliability.
Engineered for industrial control panels and machinery, this switch operates with a Normally Closed (NC) contact configuration (.1–.2) and is rated for a thermal current of 10A at 240V – 3A (AC15 utilization category). With a rated insulation voltage of 600V and impulse withstand voltage of 6kV, it delivers dependable performance and safety, fully compliant with IEC 60947-5-1 and CE certification requirements.
Features
- Ergonomic black spherical ball handle
- Protective rubber sleeve
- Anti-vibration/shock-absorbing structure
- Normally Closed (NC) contact configuration
- High electrical ratings
- AC15 utilization category
Specifications
| Model / Part Number | XD2-PA12 |
| Product Type | Industrial Joystick Control Switch |

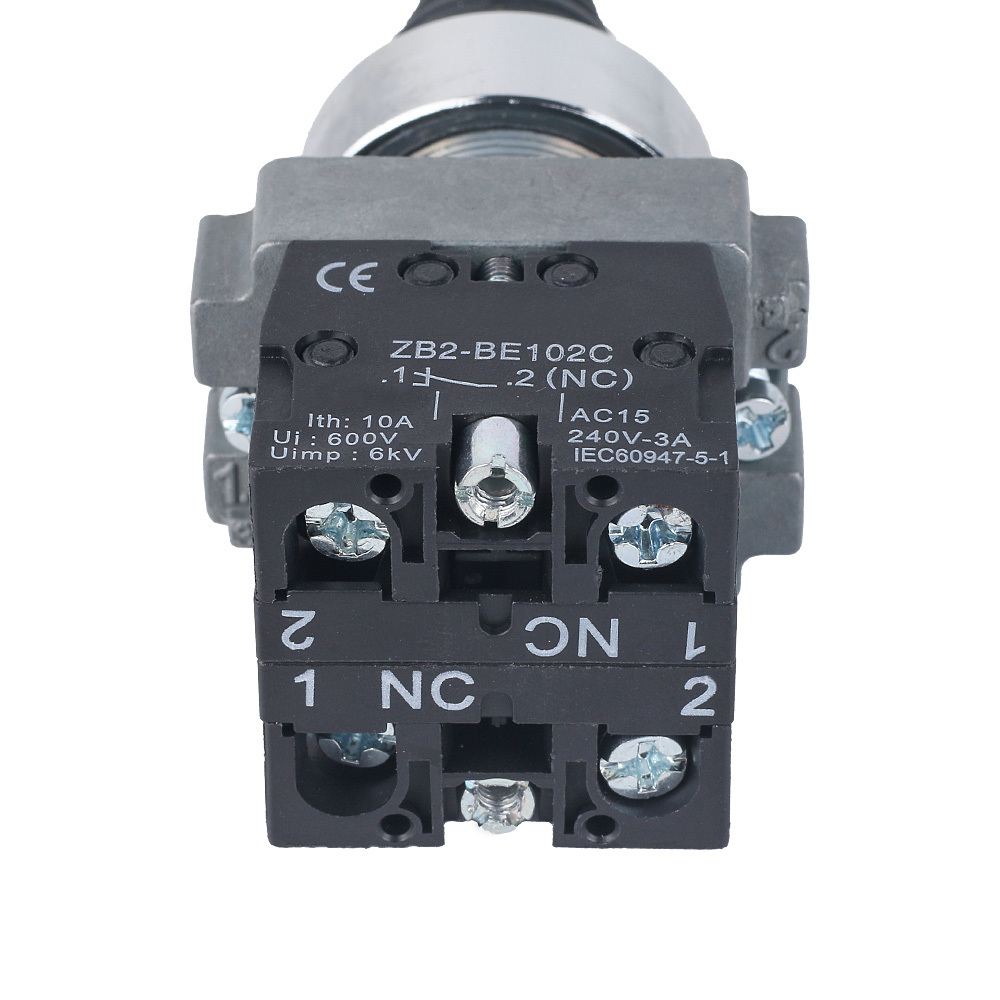

| Contact Configuration | .1 – .2 (NC – Normally Closed) |
| Rated Thermal Current (Ith) | 10A |
| Rated Insulation Voltage (Ui) | 600V |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Utilization Category | AC15 |
| Operational Rating | 240V – 3A (240VAC, NC) |
| Compliance / Certification | IEC 60947-5-1, CE |
Applications
- Industrial machinery on/off circuit control and operation
- Electrical control panels and control stations
- Switching of AC control circuits
- Industrial automation and process control systems
- Equipment requiring NC contact switching for safe circuit interruption
- General-purpose industrial electrical control applications
Package Content
- 1 x XD2-PA12 Industrial Joystick 2 Way Stay Put Control Switch (Self Lock)
