XD2-PA22 Industrial Joystick 2 Way Momentary Switch (Spring Return)

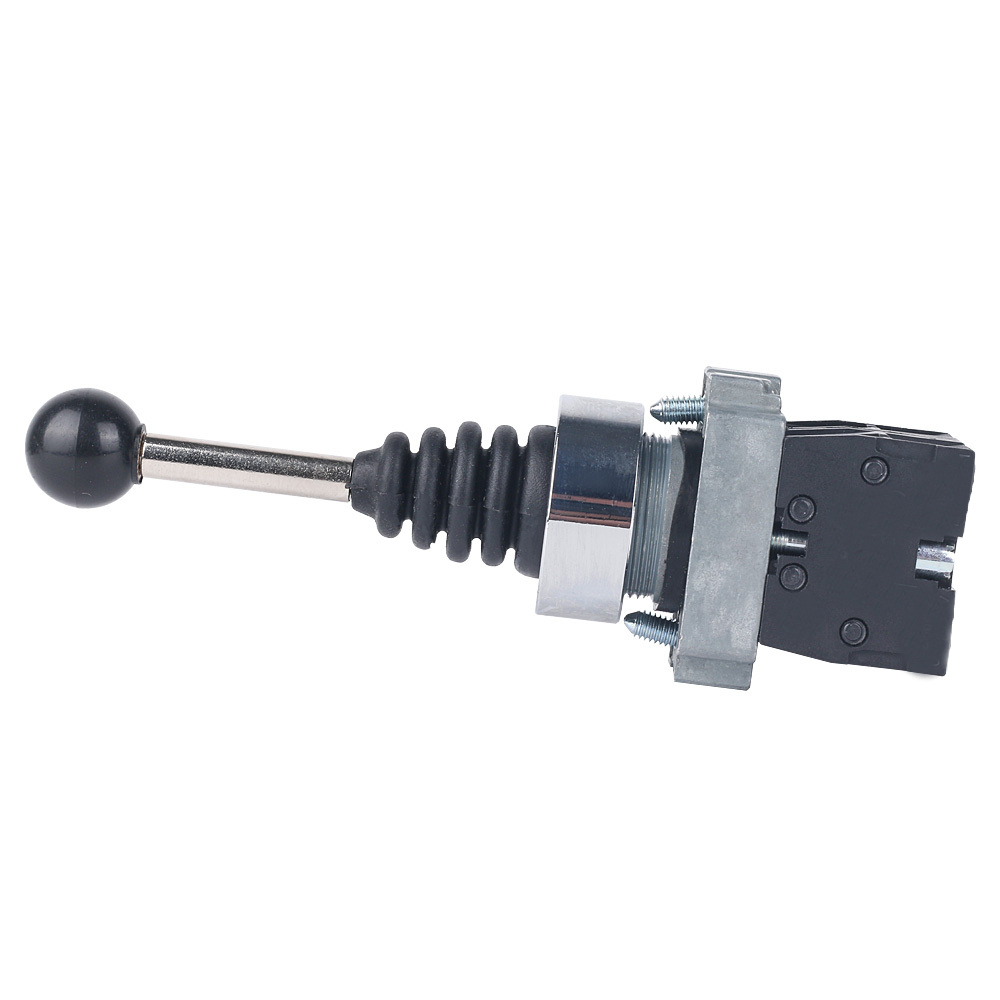

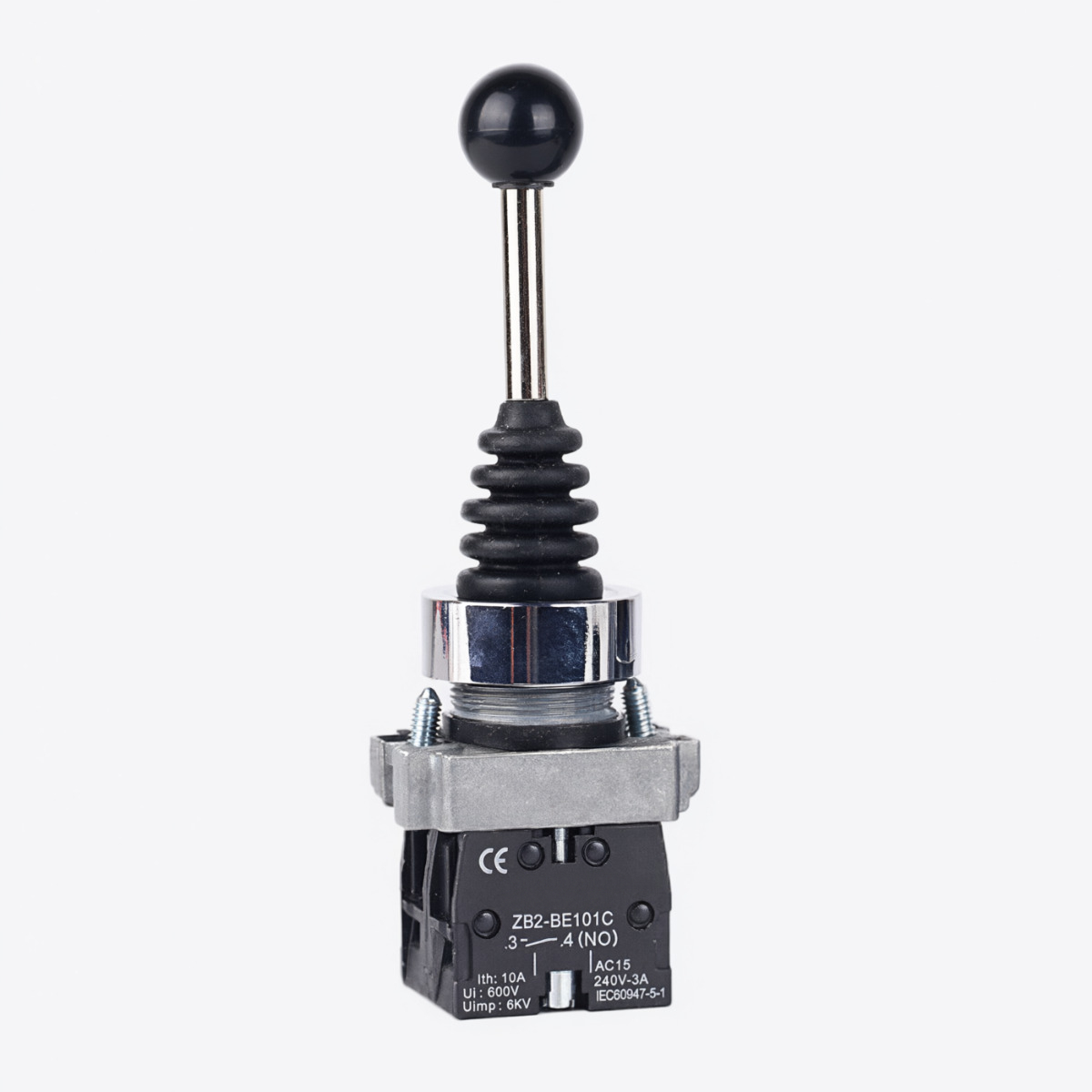

The XD2-PA22 is an industrial electrical control component designed for circuit switching and signaling applications. It features a black spherical operating handle for smooth, comfortable actuation, combined with a durable metal components. The unit is equipped with metal screw-type terminals wired as a Normally Open (NO) contact for secure and reliable connections.
Built for demanding industrial environments, this switch offers a rated thermal current of 10A, a rated insulation voltage of 600V, and a high impulse withstand voltage of 6kV. It complies with the international standard IEC 60947-5-1 for control circuit devices and carries CE certification.
Features
- Black spherical handle
- Normally Open (NO) contact configuration
- Metal screw terminals
- Rugged construction
- High rated thermal current (Ith: 10A)
- High insulation voltage (Ui: 600V)
- Impulse withstand voltage of 6kV (Uimp)
Specifications
| Parameter | Value |
|---|---|
| Product Type | Joystick Switch |
| Contact Form | Normally Open (NO) |
| Rated Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Utilization Category | AC15, 240 V – 3 A |
| Certification | CE |
| Connection | Screw Terminals |
Applications
- Industrial control panels and electrical distribution boards
- Machine control and automation circuits
- Control and signaling circuits in electrical equipment
- Switching operations requiring a normally open contact
- General industrial electrical control applications
Package Content
- 1 x XD2-PA22 Industrial Joystick 2 Way Momentary Switch (Spring Return)
