Temperature Controller – 220V 1500W
This delicate digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1℃ with wide temperature control range from -50℃ to 110℃. It is convenient to install and wiring is simple. Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.
Wiring
Quick Specifications:
- Temperature measuring range: -50 ~ 110℃
- Temperature control range: -50 ~ 110℃
- Temperature measurement accuracy: ±0.2℃
- Temperature control accuracy: ±0.1℃
- Input measurement: NTC10K probe L = 1 meter waterproof
- Input power: 220V
- Output Capacity: 10A
- Appearance size: 60 x 45 x 31 mm

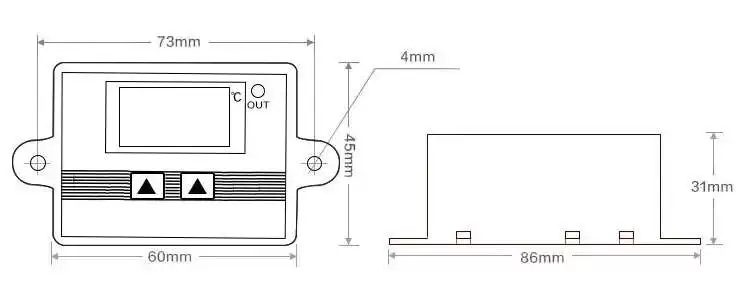

Dimensions
How To Use:
- Press the up button show the starting temperature.
Long press UP button the temperature display Flashing, press the UP or Down button Set the start temperature value - Press the Down button show the Stop temperature.
Long press Down button the temperature display Flashing, press the UP or Down button Set the stop temperature value
