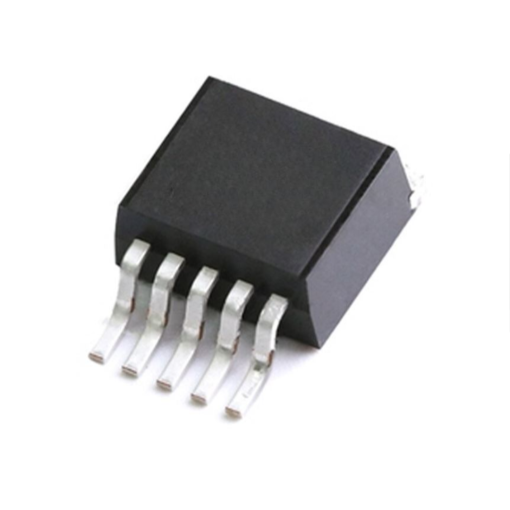

XL4015E1 Buck Adjustable 1.25V~32V 5A 8V~36V TO-263-5 DC-DC Converters SMD IC

XL4015E1 Buck Adjustable 1.25V~32V 5A 8V~36V TO-263-5 DC-DC Converters SMD IC

The XL4015E1 is a high-performance step-down (buck) DC-DC converter engineered to deliver a stable, adjustable output voltage from a wide input voltage range of 8V to 36V. With the ability to provide an output voltage adjustable from 1.25V to 32V and a continuous output current of up to 5A, this integrated circuit (IC) is well-suited for a broad spectrum of applications, including powering microcontrollers, sensors, LED drivers, and other electronic devices requiring precise voltage regulation. Its robust design and comprehensive feature set make it an excellent choice for both professional and hobbyist projects in consumer electronics, automotive systems, and industrial equipment.

Features:

• Wide 8V to 36V Input Voltage Range
• Output Adjustable from 1.25V to 32V
• Maximum Duty Cycle 100%
• Minimum Drop Out 0.3V
• Fixed 180KHz Switching Frequency
• 5A Constant Output Current Capability
• Internal Optimize Power MOSFET
• High efficiency up to 96%
• Excellent line and load regulation
• Built in thermal shutdown function
• Built in current limit function
• Built in output short protection function

Specifications:

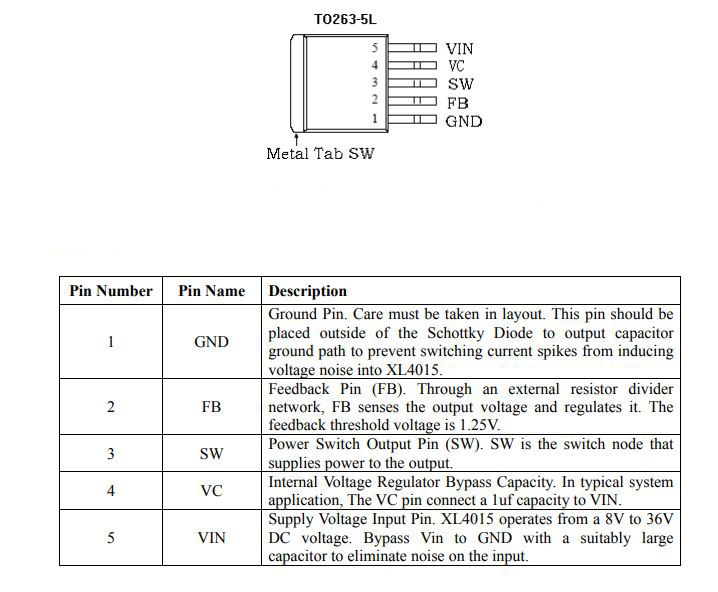

Pin Configuration:

XL4015 Symbol and Footprint:

Application:

• Power supplies for microcontrollers and other digital circuits.
• Battery chargers.
• LED drivers.
• Voltage regulation in automotive systems.
• Industrial equipment power supplies.
• Portable electronic devices.

Package Include:

1x XL4015E1 Buck Adjustable 1.25V~32V 5A 8V~36V TO-263-5 DC-DC Converters SMD IC.

Data sheet:

XL4015E1
