XLR Cable Connector 5 Pin for Wire
The 5-Pin XLR Cable Connector is commonly used for DMX stage lighting control, professional audio systems, and multi-signal connections in broadcast equipment.
50.00 EGP
Buy NowXLR Cable Connector 5 Pin for Wire

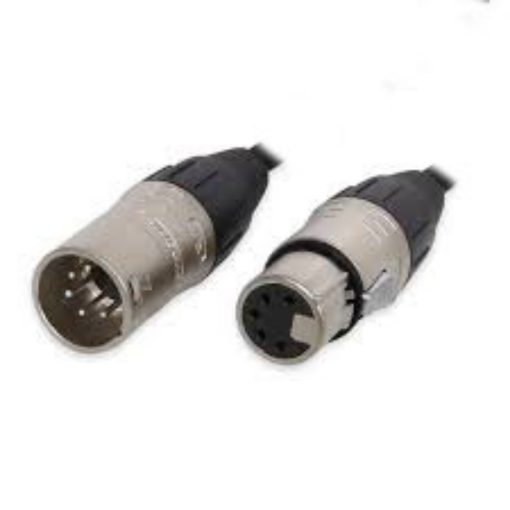

The XLR Cable Connector 5 Pin for Wire is a professional cable-mount connector designed for secure transmission of audio, data, or control signals. It is available in male and female versions, allowing easy assembly or repair of XLR cables used in professional lighting, studio equipment, and broadcast systems. The connector features a locking mechanism that ensures a firm and stable connection, preventing accidental disconnection during operation.
This connector is widely used in DMX512 lighting control systems, where it serves as the standard interface for connecting lighting consoles, dimmers, and stage lighting fixtures. The 5-pin design allows transmission of multiple signals, enabling reliable data communication or combined power and signal connections. Its durable housing and solder-type terminals make it suitable for repeated use in demanding environments such as theatres, concerts, and production studios.
Features:
- Standard 5-pin XLR connector design.
- Available in male and female versions.
- Secure locking latch for stable connection.
- Durable construction for professional applications.
- Supports multi-signal or data transmission.
- Suitable for DMX lighting control systems.
- Easy cable mounting with solder termination.
- Reliable and interference-resistant signal transfer.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type | XLR Cable Connector |
| Number of Pins | 5 Pins |
| Connector Gender | Male / Female |
| Mounting Type | Cable Mount |
| Contact Material | Brass / Phosphor Bronze |
| Housing Material | Metal / Plastic |
| Termination Type | Solder |
| Color | Black |
Pinout:
| Pin | Name | Description |
|---|---|---|
| 1 | Ground / Shield | Cable shield or ground |
| 2 | Data − | Negative data signal |
| 3 | Data + | Positive data signal |
| 4 | Optional Data | Secondary data or control line |
| 5 | Optional Data | Secondary data or control line |
Applications:
- DMX stage lighting control systems.
- Professional audio equipment.
- Broadcast and studio systems.
- Stereo microphone connections.
- Intercom and communication equipment.
- Multi-signal or data transmission cables.
Package Included:
- 1x XLR Cable Connector 5 Pin for Wire.
| Type | Male, Female |
|---|
