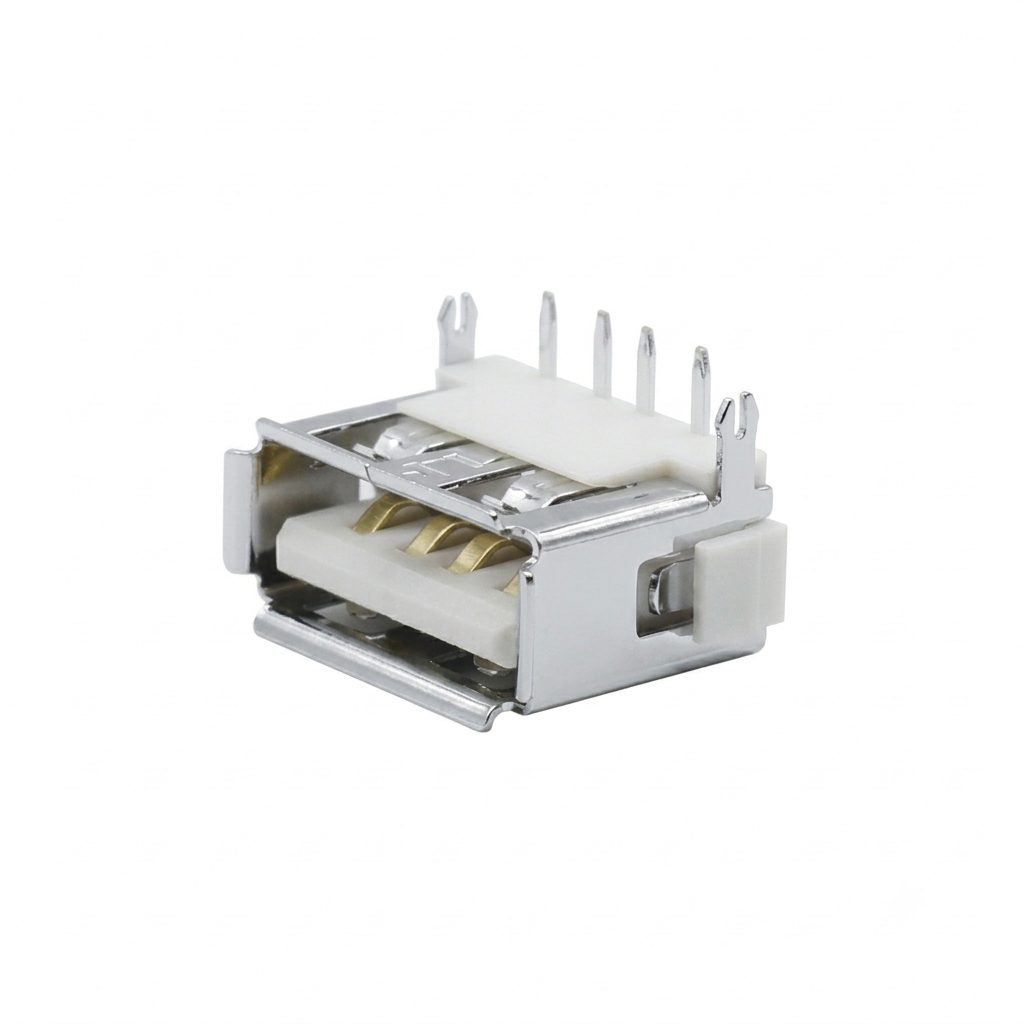

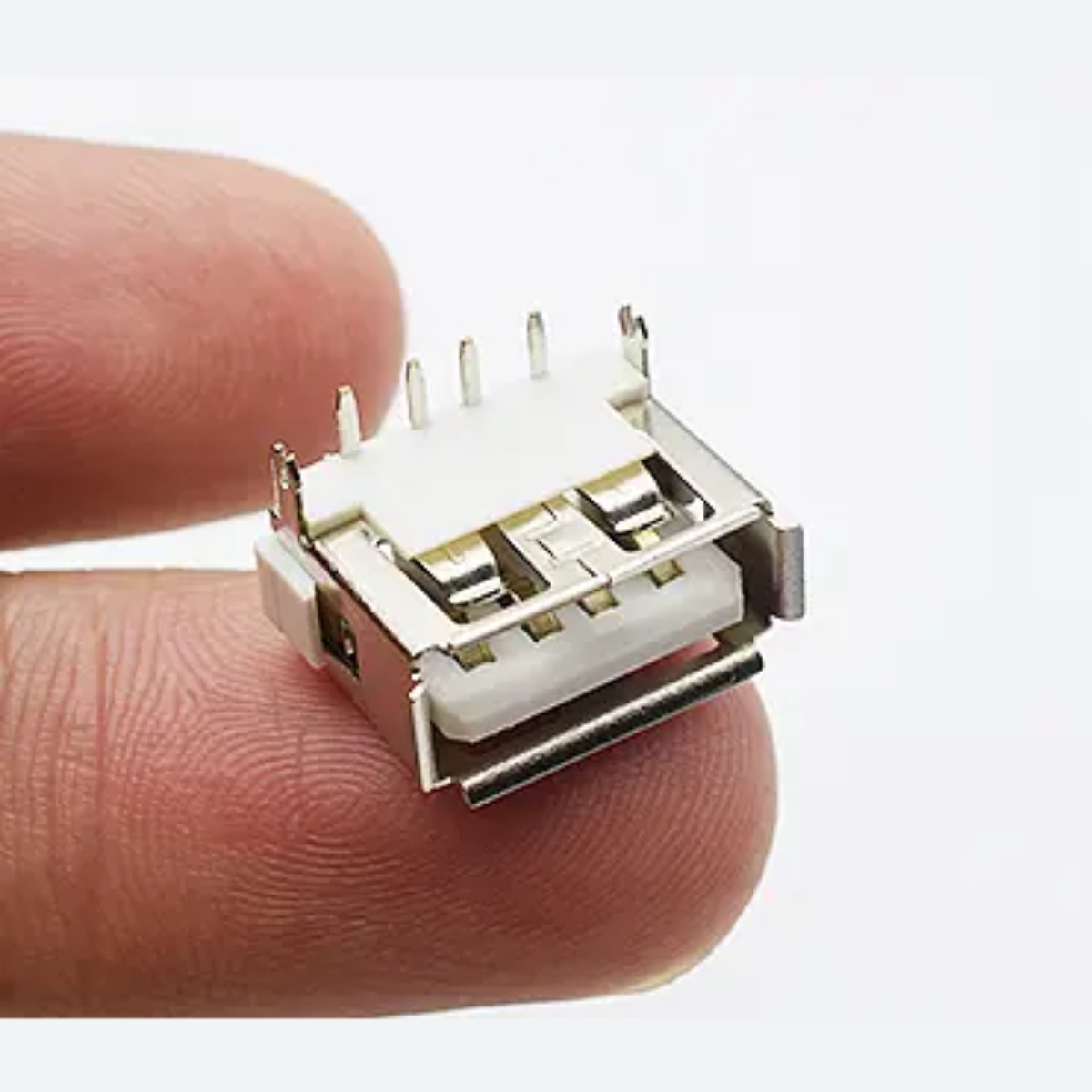

XUBF-012-0403-B PCB Solder Female Type A USB Connector Right Angle 4 Pin
The XUBF-012-0403-B is a right-angle USB Type-A female connector designed for PCB through-hole mounting. Featuring 4 signal/power pins and dual side retention tabs for mechanical stability, this connector provides a reliable interface for power delivery and USB data transmission in DIY projects, PCB repairs, or custom electronic hardware designs.
Features
- Standard Interface
- Right-Angle Orientation
- PCB Mount
Specifications
| Specification | Detail |
|---|---|
| Model | XUBF-012-0403-B |
| Connector Type | USB Type-A Female |
| Orientation | Right-Angle (90°) |
| Pin Count | 4 Pins |

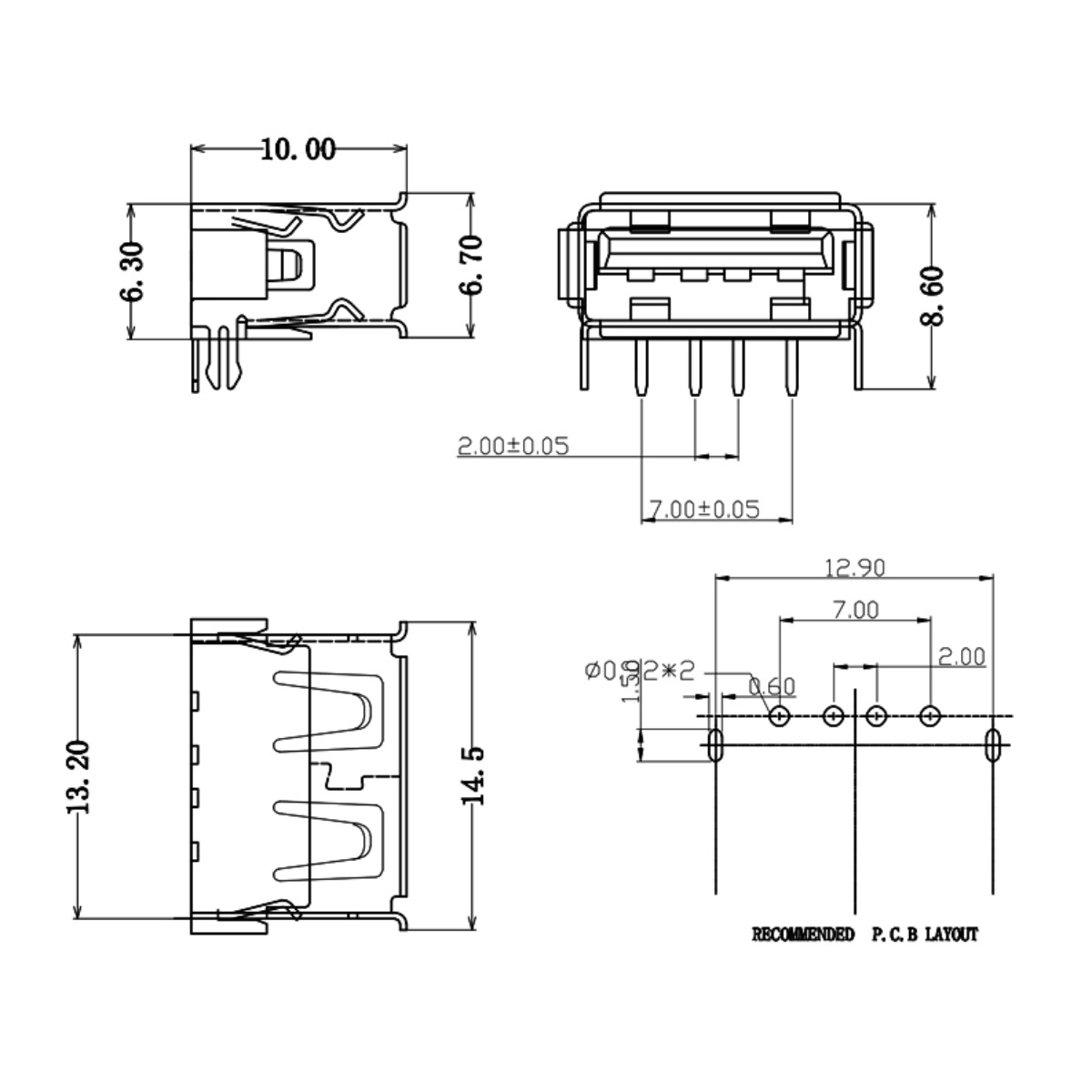

| Pin Pitch | 2.00 mm |
| Total Pin Span | 7.00 mm |
| Mounting Type | Through-Hole (PCB Solder) |
Applications
- Custom Microcontroller Boards
- Power & Data Ports
- Electronics Repair
- DIY Hardware Projects
Package Content
- 1 x XUBF-012-0403-B PCB Solder Female Type A USB Connector Right Angle 4 Pin
