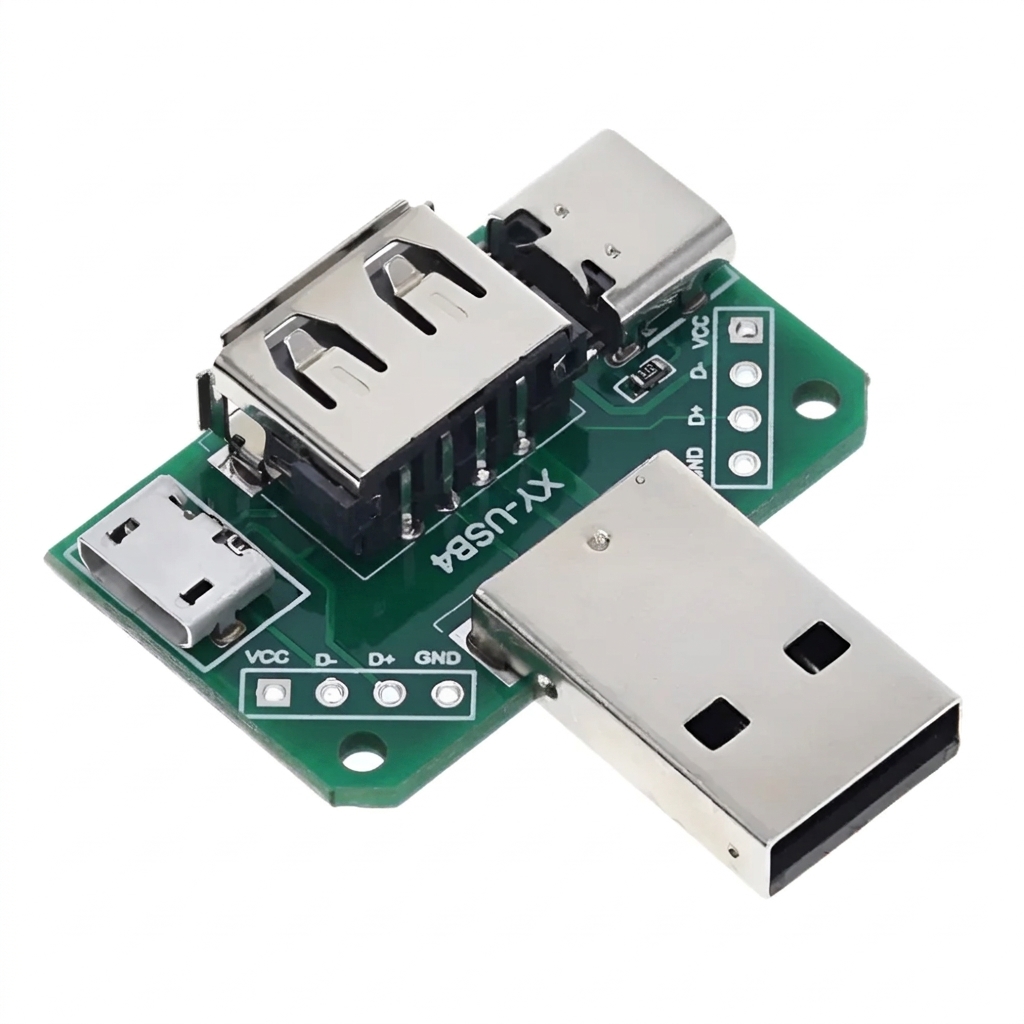

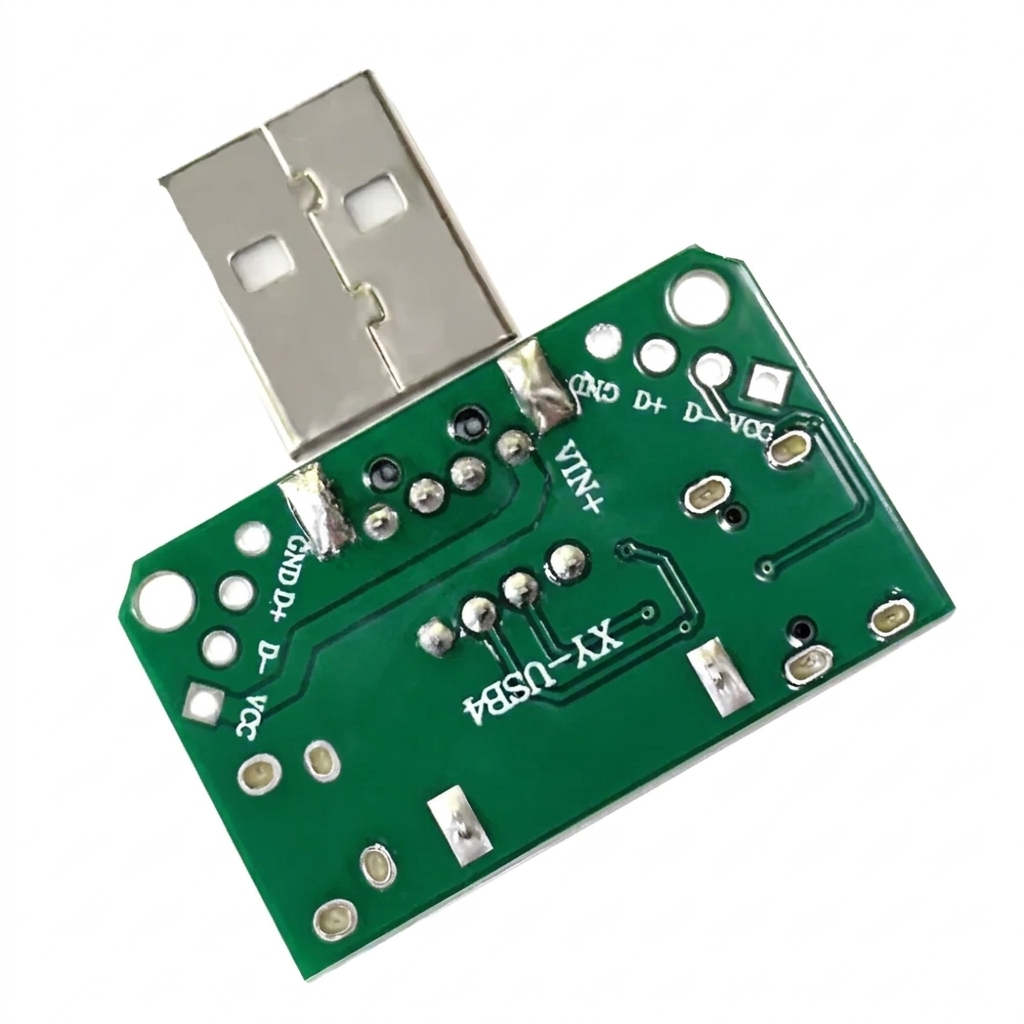

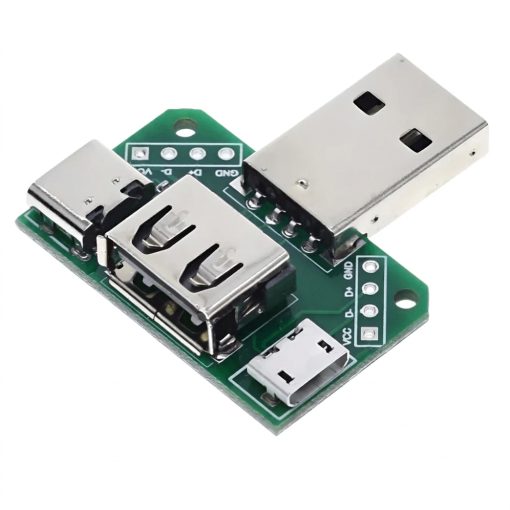

XY-USB4 Converter 4 in 1 USB Adapter Board
The XY-USB4 Converter 4 in 1 USB Adapter Board is a compact and versatile interface module designed to simplify USB connectivity across multiple connector types. It integrates several commonly used USB interfaces into a single board, allowing seamless conversion between USB Type-A, Micro USB, Type-C, and a 4-pin 2.54mm header. This makes it an ideal solution for developers, technicians, and hobbyists who frequently work with different USB standards in prototyping and testing environments.
This adapter board is engineered to provide reliable power and data signal routing, supporting standard USB communication lines including VCC, D+, D−, and GND. It operates typically at 5V DC and ensures stable performance across various applications, from embedded systems to quick interface testing. Its small form factor and lightweight design make it easy to integrate into breadboards or compact electronic setups without adding bulk.
Features:
- 4-in-1 USB interface design supporting multiple connector types.

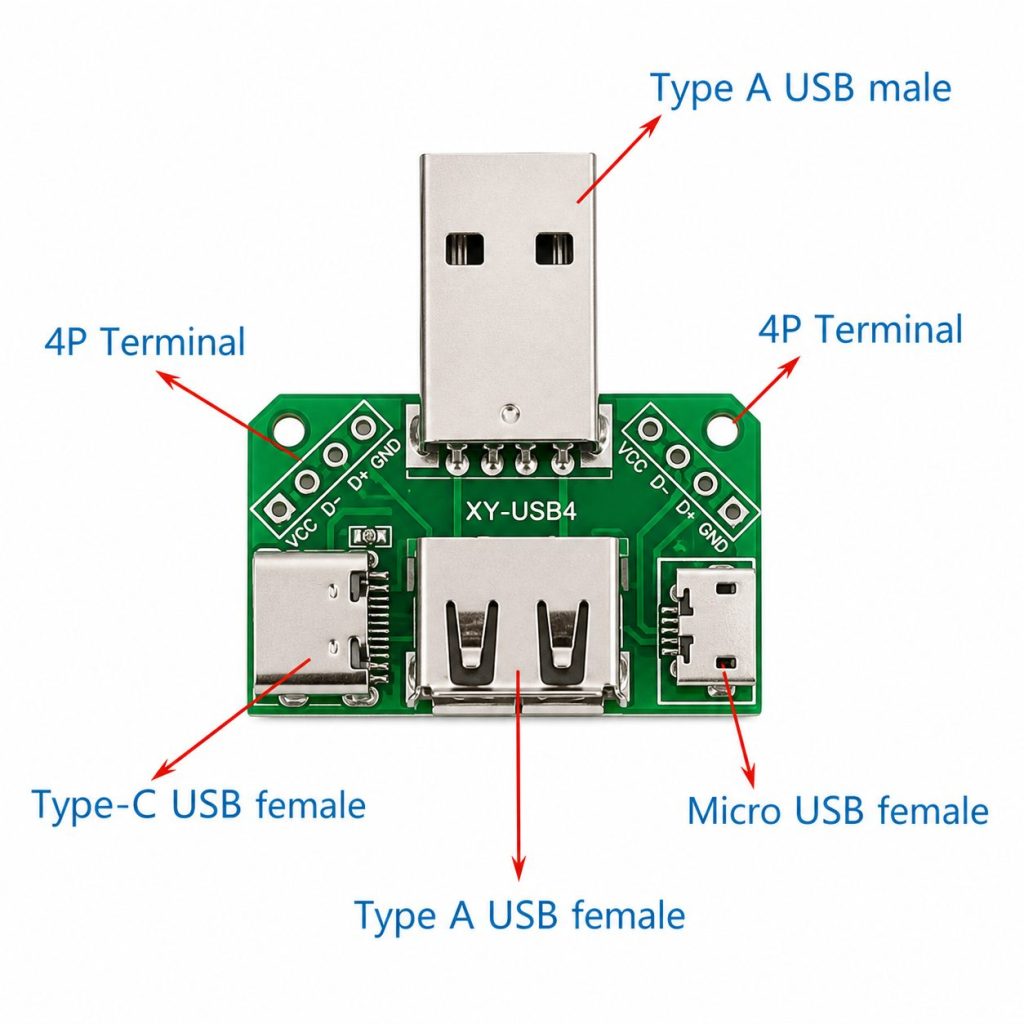

- Includes USB Type-A, Micro USB, Type-C, and 2.54mm 4-pin header.
- Supports both power and data signal transmission.
- Standard USB pinout (VCC, D+, D−, GND) for easy integration.
- Compact and lightweight PCB design.
- Stable and reliable performance for prototyping and testing.
- Easy connection with breadboards and jumper wires.
- Enables quick USB interface conversion without extra modules.
Specifications:
| Parameter | Value |
|---|---|
| Model: | XY-USB4 |
| Product Type: | USB Adapter / Interface Converter |
| Operating Voltage: | 5V DC |
| Interfaces: | USB Type-A, Micro USB, Type-C, 4P 2.54mm Header |
| Pin Configuration: | VCC, D−, D+, GND |
| Operating Temperature: | -20°C to +85°C |
| Working Humidity: | 0% to 95% RH |
| Dimensions: | 33 × 20 mm |
| Weight: | ~7 g |
Applications:
- USB Interface Testing.
- Embedded System Development.
- Breadboard Prototyping.
- Device Power Supply Conversion.
- Data Communication Experiments.
- Repair and Maintenance Work.
- DIY Electronics Projects.
Package Contents:
- 1x XY-USB4 Converter 4 in 1 USB Adapter Board
