YCF2-2C-24VDC Power Relay 24VDC 5A 250VAC/28VDC 2Poles Non Latching 8Pin
YCF2-2C-24VDC Relay: 24VDC coil, 8-pin DPDT, 5A 250VAC/28VDC switching. Non-latching. For industrial control and automation.
45.00 EGP
Buy NowYCF2-2C-24VDC Power Relay 24VDC 5A 250VAC/28VDC 2Poles Non Latching 8Pin

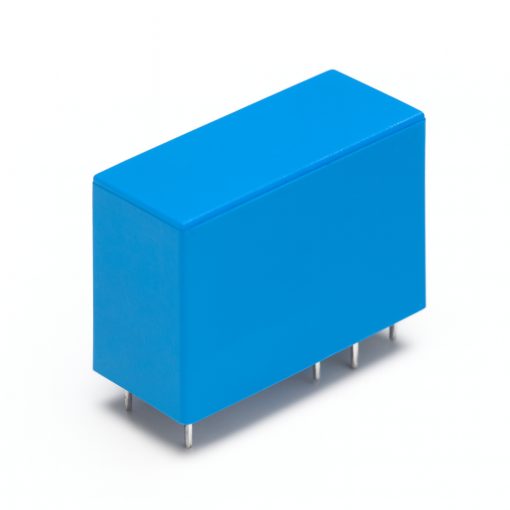

The YCF2-2C-24VDC Power Relay is an 8-pin electromagnetic relay with a 24VDC coil and DPDT (Double Pole Double Throw / 2 Form C) contact configuration. It provides two independent changeover contacts, allowing two separate circuits to be switched simultaneously. When the 24VDC coil is energized, both contact sets change state, making the relay suitable for electrical isolation, signal switching, and load control applications.
With a contact rating of up to 5A at 250VAC or 5A at 28VDC, this non-latching relay is suitable for industrial automation, control panels, power management circuits, HVAC equipment, appliances, and general-purpose switching applications. Its standard 8-pin plug-in design allows convenient installation and replacement when used with a compatible relay socket.
Features:
- Standard 24VDC Coil.
- DPDT Contacts.
- 5A Switching Capability.
- 8-Pin Plug-in Style.
- Non-Latching Operation.
- High Durability.
Specifications:
| Attribute | Value |
|---|---|
| Model | YCF2-2C-24VDC |
| Relay Type | Power Relay |
| Contact Form | DPDT (Double Pole Double Throw) |
| Number of Pins | 8 |
| Coil Voltage (Rated) | 24VDC |
| Latching Type | Non-Latching |
| Contact Rating (AC) | 5A at 250VAC |
| Contact Rating (DC) | 5A at 28VDC |
| Electrical Life | ≥ 100,000 cycles (at rated load) |
| Operating Temperature | -40°C to +85°C |
| Contact Material | Silver Alloy |
Applications:
- Industrial Automation.
- Power Management.
- HVAC controls.
- Home appliances.
- Automotive electronics.
Package Includes:
- 1 × YCF2-2C-24VDC Power Relay 24VDC 5A 250VAC/28VDC 2Poles Non Latching 8Pin.
