In the world of electronics development, Efficient data transfer is essential in embedded systems and industrial applications, where reliable communication between devices ensures smooth operation and data integrity. A USB-to-TTL Converter is one of those small tools that quietly unlocks a lot of potential. Whether you are debugging a microcontroller project, flashing a bootloader, or simply adding a console port to a device, a reliable USB to TTL adapter is a must-have in your toolkit.

Understanding TTL Signals

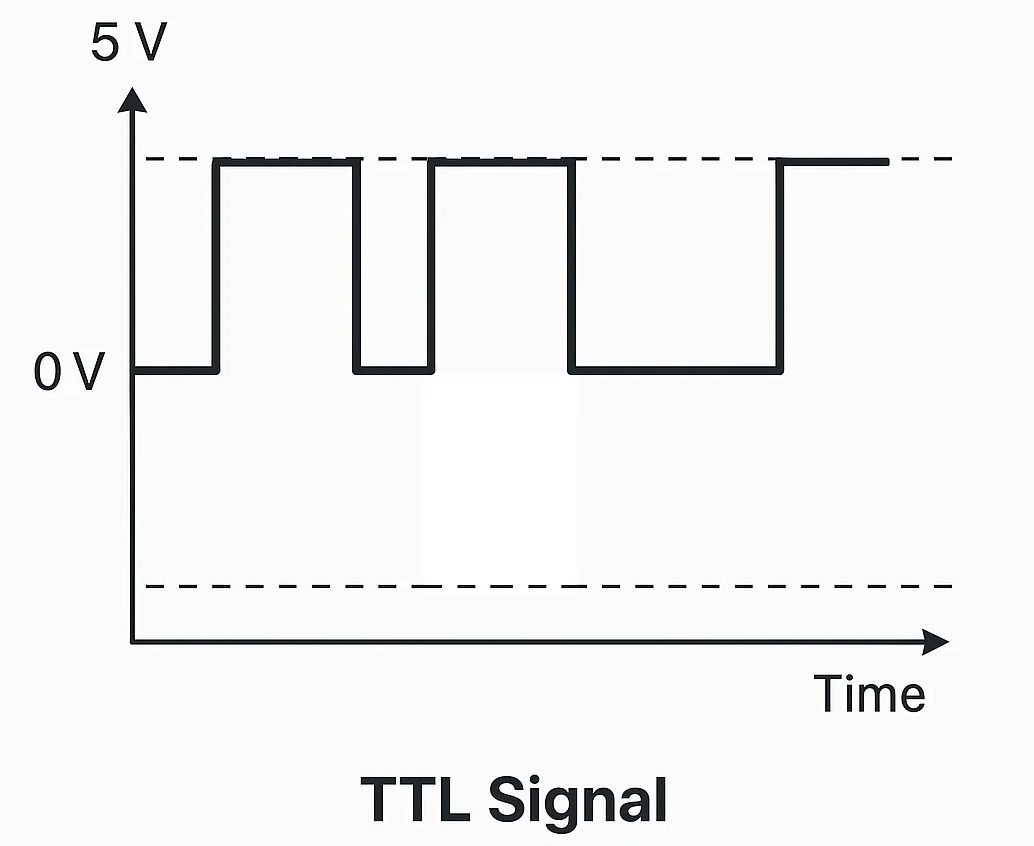

TTL signals are digital and have specific voltage levels. A logic zero is usually about 0V, and a logic 1 is around 3.3V or 5V. These signals are standard in many microcontrollers and embedded systems, making TTL a go-to protocol for serial communication.

What Is USB to TTL?

A USB-to-TTL Converter is a device that bridges the gap between USB interfaces and TTL (Transistor-Transistor Logic) serial communication, allowing seamless data transfer between computers and microcontrollers or other embedded systems. It translates USB signals to TTL levels, making it a crucial tool for developers working with serial communication in various projects. USB to TTL converters are particularly valuable in these settings, enabling precise control and monitoring of connected devices without complex setups.

Why USB Cannot Connect to TTL Directly?

USB and TTL differ at both the protocol and electrical levels:

A USB-to-TTL adapter handles protocol conversion, logic-level translation, and communication with the operating system via drivers.

Why you might need a USB to TTL converter?

Here are the most common use cases that explain why these adapters are so popular in both hobbyist and professional circles:

• Debugging microcontrollers and single-board computers — Many microcontrollers boot with a serial console that prints boot messages, debug logs, or prompts for configuration. A USB to TTL adapter provides a direct, stable link to view and send data without the need for a dedicated serial port on your PC.
• Flashing firmware and bootloaders — Some devices require a TTL-level interface to flash bootloaders or load new firmware. A reliable adapter helps ensure a smooth, repeatable flashing process.
• Custom interfaces for hardware prototypes — In test benches, a TTL console or custom serial command interface can simplify instrument control, data capture, and parameter tweaking during development.
• Raspberry Pi and BeagleBone debugging — Although these boards include a built-in serial header, a USB to TTL adapter offers an alternative, convenient way to access the console, especially when the main USB port is occupied.
• Industrial and embedded testing — In manufacturing or field-service scenarios, a portable TTL serial interface can facilitate rapid troubleshooting, configuration, and data retrieval.

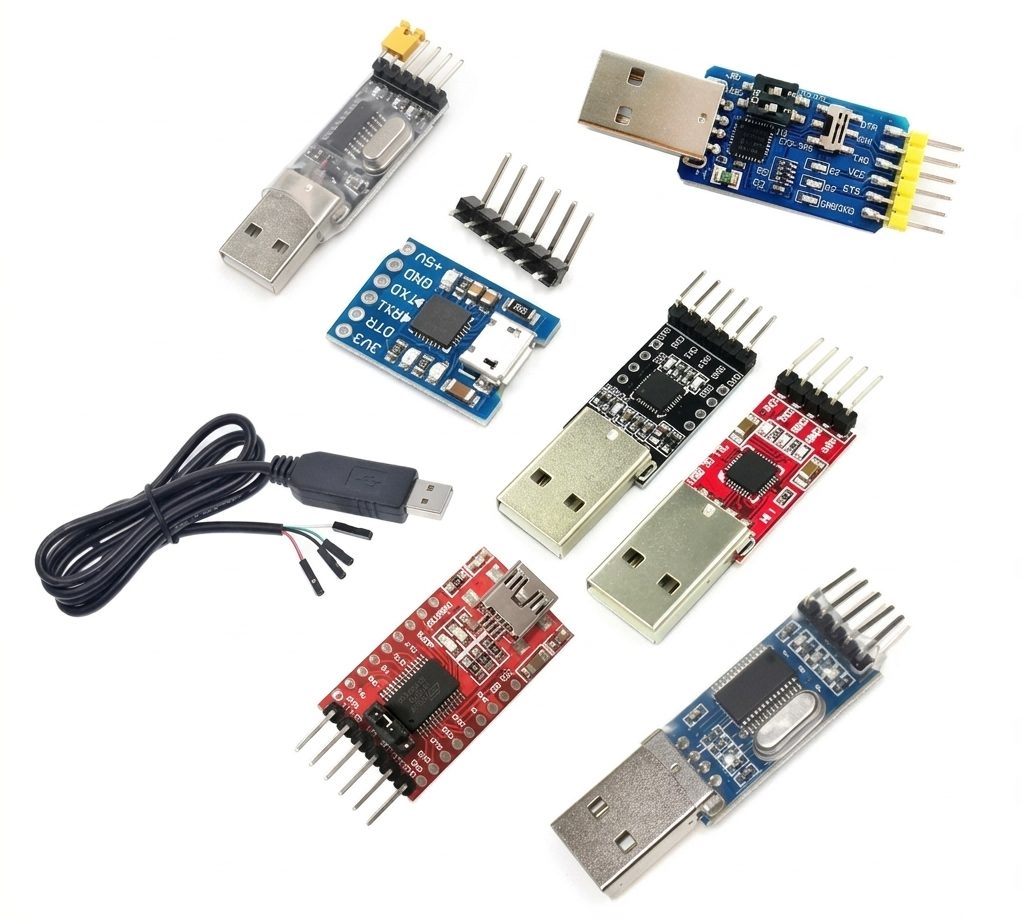

Common Bridge Chipsets Used in USB-to-TTL Converter

• CH340 – widely used and cost-effective.
• CP2102 – stable and well supported.
• FT232 – industrial-grade reliability.
• PL2303 – older chipset, driver support may vary by OS version.

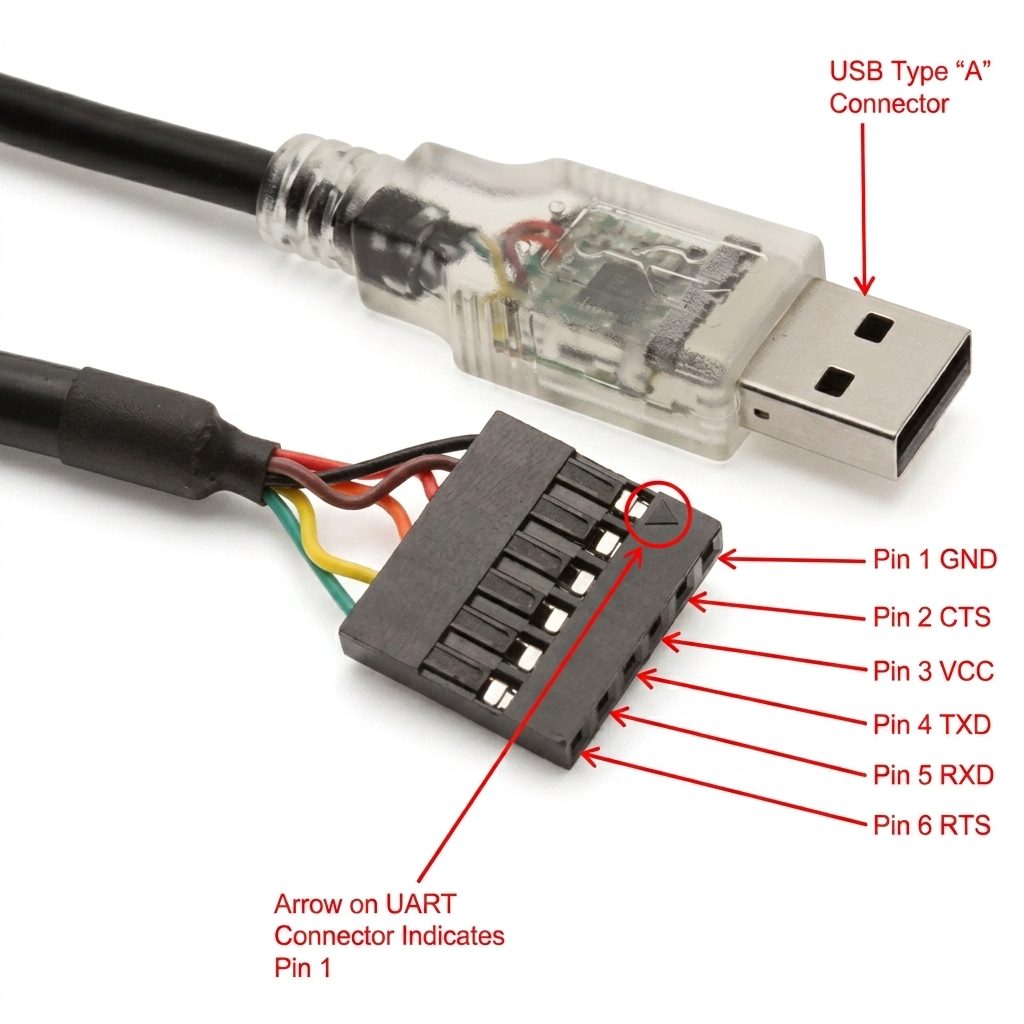

Wiring and connection basics.

Connecting a USB to TTL adapter to a microcontroller or module is straightforward, but a couple of best practices help ensure a clean, reliable link:

• Identify the right voltage — Check your target device’s logic level. If you are not sure, start with 3.3V and avoid 5V until you confirm compatibility.
• Match TX and RX — Connect the adapter’s TX pin to the device’s RX pin, and the adapter’s RX pin to the device’s TX pin. This cross-over is essential for data to flow in the correct direction.
• Common ground — Tie the ground of the USB adapter to the ground of the target system. Without a common ground, reference levels drift and communication fails.
• Power considerations — If your target device needs power (VCC), use the adapter’s VCC pin only if the target’s current draw is within the adapter’s capability. Otherwise, power the device separately and only use the UART pins for data.
• Control lines for advanced use — DTR and RTS lines can trigger reset or enter bootloader modes on certain boards (e.g., auto-reset for Arduino-style boards). If your board requires it, enable the appropriate line and verify timing in your development environment.
• Cable length and shielding — USB-to-TTL cables are generally short. If you must go longer, choose shielded cables and a robust adapter to minimize noise and data corruption.

Driver setup and platform considerations

Setting up drivers correctly is one of the most critical steps to ensure a smooth experience with USB to TTL converters. The specifics vary by operating system and chipset:

Windows

Most CH340 and CP2102 devices offer Windows drivers that install automatically via Windows Update or come bundled with the driver package. If your device fails to enumerate a COM port, try the following:

• Check Device Manager for any yellow warning icons and update drivers from the vendor site or via Windows Update.
• Uninstall any conflicting drivers that may be installed from a previous adapter.
• Verify the COM port number in Device Manager and adjust the terminal program’s settings accordingly.

macOS

macOS generally supports FTDI-based devices out of the box, and CP2102/CH340 modules often require a driver package. After installation, you will typically use a serial terminal program to connect to /dev/tty.usbserial-xxxx or similar device paths.

Linux

Most Linux distributions include generic drivers for FTDI, CP2102, and CH340 devices. You can often see the device with commands like lsusb and dmesg. The serial device will appear as /dev/ttyUSB0 or /dev/ttyACM0. You may need to add your user to the dialout group to access serial devices without sudo.

Practical tips when using USB-to-TTL Converter

Below are several real-world scenarios that illustrate how USB to TTL converters can streamline development and debugging across popular platforms.

Raspberry Pi and BeagleBone debugging consoles

Many single-board computers expose a UART console for early boot messages, recovery, and headless operation. A USB to TTL adapter is a convenient bridge to access the console without occupying the main USB bus. For Raspberry Pi users, a 3.3V TTL adapter connected to the Pi’s TXD, RXD, and GND pins provides a reliable serial link. If you need to reset the board from software, a DTR or RTS-enabled adapter can automate bootloader entry or safe mode triggers with simple wiring and a little scripting.

Arduino and Microcontroller programming

When programming an Arduino or bare microcontroller, most boards expect a USB-to-serial interface for bootloading and serial monitoring. A good USB to TTL adapter with a stable 3.3V or 5V level, clear labeling, and a convenient way to power the target board makes it simpler to flash firmware, print debug messages, and calibrate sensors in real time.

Industrial and lab testing setups

In industrial testing environments, repeatability and reliability are paramount. Adapters with robust mechanical build quality, protection features, and drivers that are well-supported across Windows, Linux, and macOS help teams standardize their test benches. Having a multi-port adapter can accelerate parallel testing, such as talking to multiple serial instruments, sensors, or microcontrollers in a single workstation setup.

Usage Instructions

How to Use the USB-TTL Converter in a Circuit

Connect the USB-TTL to the Target Device:

1. Connect the GND pin of the USB-TTL to the ground of the target device.
2. Connect the TXD pin of the USB-TTL to the RX pin of the target device.
3. Connect the RXD pin of the USB-TTL to the TX pin of the target device.
4. If required, connect the VCC pin to power the target device (ensure voltage compatibility).

Install Drivers:

Install the appropriate driver for the USB-TTL chipset (e.g., FTDI, CH340, or CP2102) on your computer. Drivers are typically available on the manufacturer’s website.

Connect to a Computer:

Plug the USB-TTL converter into a USB port on your computer. Verify that the device is recognized in the Device Manager (Windows) or via the ls /dev/tty* command (Linux/Mac).

Open a Serial Communication Tool:

1. Use software like Arduino IDE, PuTTY, or CoolTerm to open a serial connection. Select the correct COM port and baud rate.
   Test Communication:
2. Send and receive data to verify the connection. For example, you can use a loopback test by connecting TXD to RXD and checking if sent data is echoed back.
3. Important Considerations and Best Practices
4. Voltage Compatibility: Ensure the target device operates at the same voltage level as the USB-TTL converter (3.3V or 5V). Some converters have a jumper or switch to select the voltage.
5. Cross-Connection of TX and RX: Always connect the TXD pin of the USB-TTL to the RX pin of the target device, and vice versa.

Driver Installation:

Without the correct driver, the USB-TTL converter may not function properly. Verify the driver installation if issues arise.

Avoid Overloading:

Do not draw excessive current from the VCC pin of the USB-TTL converter, as it is limited by the USB port’s power supply.

Example: Using USB-TTL with Arduino UNO

• The USB-TTL converter can be used to program or communicate with an Arduino UNO.
• Below is an example of how to send data from the Arduino to a computer via the USB-TTL converter.
• Arduino Code Example

// Example: Sending data from Arduino to a computer via USB-TTL
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
Serial.println(“Hello from Arduino!”); // Send a message to the computer
delay(1000); // Wait for 1 second
}
Steps:
Connect the USB-TTL converter to the Arduino:
GND to Arduino GND
TXD to Arduino RX
RXD to Arduino TX

• Open a serial monitor on your computer (e.g., Arduino IDE Serial Monitor).
• Set the baud rate to 9600 and observe the messages sent from the Arduino.

Common Applications

• Programming microcontrollers such as Arduino, ESP8266, and STM32.
• Debugging and monitoring serial data from embedded systems.
• Interfacing with TTL-level devices like GPS modules, GSM modules, and sensors.
• Creating custom USB-to-serial communication tools for projects.
• Firmware flashing and Bootloader access.
• Embedded system development and manufacturing tests.

How to choose the right USB to TTL converter?

Not all USB-to-TTL adapters are created equal. The following features help you choose a model that aligns with your workflow, reliability requirements, and budget:

• Voltage levels (3.3V vs 5V) — TTL logic voltage must match the device you’re connecting. Some boards are 3.3V only, others offer selectable voltage with a switch or jumper. Mismatched voltage can damage the target or result in unreliable communication, so verify compatibility before connecting to your MCU.
• Baud rate range and stability — Most adapters support a wide range (e.g., 300 to 115200 or higher). Look for chips that maintain stable communication at your target rate, especially for long or noisy cables.
• Voltage levels on the VCC pin — Some adapters provide a 3.3V/5V output to power the target device, which can be convenient for breadboard setups. If your project requires external power, confirm the adapter’s power delivery capability.
• Driver availability and OS coverage — Windows, macOS, and Linux compatibility are essential for a universal tool. FTDI and CP2102 often deliver robust, well-supported drivers; CH340 may require occasional driver updates on newer OS versions.
• Jumper wires, form factor, and build quality — A compact module with clear labeling (TX, RX, VCC, GND, DTR, RTS) reduces wiring errors. Durable connectors and a stable PCB reduce wear during repeated use.
• Automatic handshake and control lines — DTR/RTS lines are handy for auto-reset in microcontroller programming (e.g., Arduino-style boards). CTS/RTS can be useful in some advanced protocols or when integrating with other hardware.
• Multi-port options — If you need multiple serial channels, look for two-port or multi-port USB-to-TTL adapters with independent channels for simultaneous monitoring or programming.
• Over-voltage and ESD protection — For industrial environments, protection features can improve longevity in harsh settings.
• Price and warranty — Balance cost against reliability and support. For critical projects, investing in reputable brands and a good warranty can save time and risk later.

This circuit is designed to control two hub motors using a HUB driver, powered by a DC-DC converter and a power module. The USB to TTL converter allows for communication with the HUB driver, and a 5V relay module is used to switch the motors on and off.

ESP32-CAM Module with USB to TTL Communication

This circuit connects an ESP32-CAM module to a USB to TTL module for serial communication and power supply. The ESP32-CAM’s transmit (VOT) and receive (VOR) pins are connected to the USB to TTL’s RXD and TXD pins respectively, enabling serial data exchange between the ESP32-CAM and a connected computer. Power (3V3 and 5V) and ground (GND) connections are also established between the two modules, ensuring the ESP32-CAM is powered and can communicate over USB.

USB Type-C Powered LED Circuit with Resistor

This circuit consists of a USB Type-C port providing power to a red LED through a 1000 Ohm resistor. The resistor limits the current flowing through the LED, which lights up when the circuit is powered.

Bluetooth-Controlled Multi-Function Arduino Nano Gadget

This is a portable, microcontroller-driven interactive device featuring Bluetooth connectivity, visual (RGB LED), auditory (loudspeaker), and haptic (vibration motor) feedback, user input (pushbutton), and a rechargeable power system (TP4056 with Li-ion battery).

How to create a USB to serial TTL module by yourself?

If you’d like to implement USB-to-TTL Converters yourself, click on this link:

USB to serial TTL module by yourself

Testing and Troubleshooting basics

Even with a good adapter, issues can arise. Here are practical steps to diagnose and fix common problems:

• Perform a loopback test — Connect TX to RX on the adapter itself and transmit data from a terminal program. If you see the same characters echoed back, the basic UART path is functioning correctly.
• Verify baud rate and parity — Ensure the device and the adapter agree on 8 data bits, no parity, and 1 stop bit (8N1) by default, unless your application specifies otherwise.
• Check voltage compatibility — A 5V logic device connected to a 3.3V adapter may fail at higher data rates or operate erratically. Use a level-matched adapter or a device with selectable voltage.
• Inspect wiring and ground reference — A loose connection or missing ground is a frequent cause of garbled data. Re-check the wiring and ensure a solid ground path.
• Driver conflicts — If a device does not enumerate, suspect driver conflicts or blocked kernel modules. On Linux, check dmesg for device creation messages and ensure the correct /dev/tty* path is used.
• Noise and interference — USB cables and long TTL lines can pick up noise. Use shorter cables for higher baud rates and consider shielded cabling in noisy environments.
