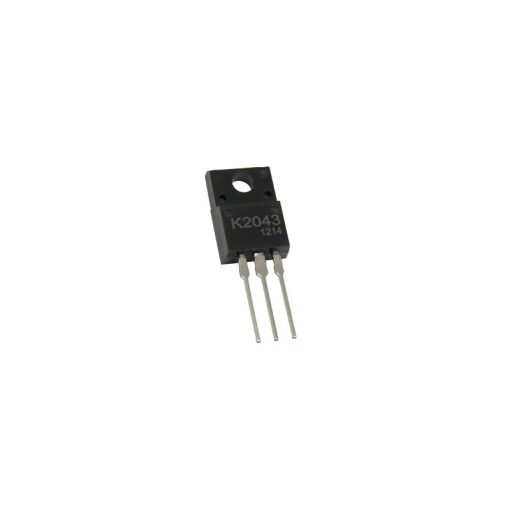

2SK2043 MOSFET Transistor 600V 2A TO-220F
2SK2043 N-Channel 600V 2A power MOSFET in a TO-220F package. Designed for high-speed switching with an integrated 100ns fast reverse recovery diode
20.00 ج.م
متوفرالكود 3496300157457
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
2SK2043 MOSFET Transistor 600V 2A TO-220F
2SK2043 N-Channel MOSFET 600V 2A TO-220F is a high-voltage silicon power MOSFET designed for high-speed switching applications. It features a 600V drain-to-source voltage rating, 2A continuous drain current capability, and a built-in high-speed diode with a typical reverse recovery time of 100ns.
Features:
- N-Channel silicon MOSFET.
- 600V maximum drain-to-source voltage.
- 2A continuous drain current.
- 8A pulsed drain current.
- 25W maximum power dissipation at Tc=25°C.
- 4.3Ω maximum drain-source on-state resistance.
- ±30V gate-to-source voltage rating.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | SANYO |
| Model Number | 2SK2043 |
| Product Type | N-Channel MOSFET |
| Channel Type | N-Channel |
| Drain-Source Voltage | 600V |
| Drain Current (DC) | 2A |
| Drain Current (Pulse) | 8A |
| Gate-Source Voltage | ±30V |
| Gate Threshold Voltage | 2.0–3.0V |
| Drain-Source On-State Resistance | 4.3Ωmax. |
| Allowable Power Dissipation at Ta=25°C | 2W |
| Allowable Power Dissipation at Tc=25°C | 25W |
| Maximum Channel Temperature | 150°C |
| Storage Temperature | -55 to +150°C |
| Input Capacitance | 400pF |
| Output Capacitance | 55pF |
| Reverse Transfer Capacitance | 15pF |
| Turn-On Delay Time | 10ns |
| Rise Time | 12ns |
| Turn-Off Delay Time | 65ns |
| Fall Time | 40ns |
| Diode Forward Voltage | 1.5Vmax. |
| Diode Reverse Recovery Time | 100ns |
| Package | TO-220F |
| Number of Pins | 3 |
| Mounting Type | Through-Hole |
Applications:
- High-voltage switching circuits.
- Switching power supplies.
- AC/DC power converters.
- DC/DC converter circuits.
- Power control circuits.
- Motor control circuits.
- Industrial electronic equipment.
- High-speed switching applications.
- Electronic power control systems.
- General-purpose power switching.
Package Include:
1x 2SK2043 MOSFET Transistor 600V 2A TO-220F
