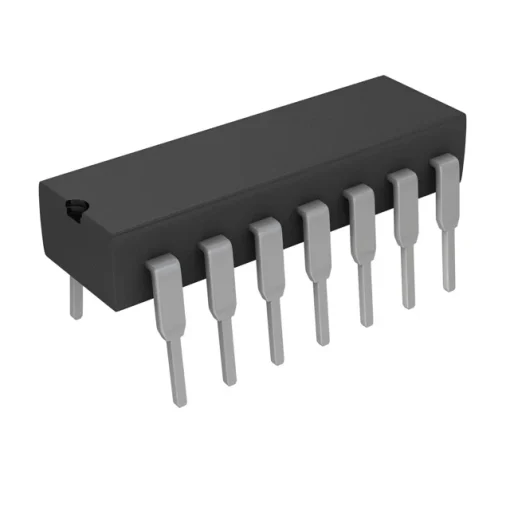

SN75107AN IC RECEIVER 14DIP
SN75107AN is a high-performance Dual Line Receiver in a 14-DIP package, designed for high-speed digital data transmission systems.
16.00 ج.م
متوفرالكود 3496300098934
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
SN75107AN IC RECEIVER 14DIP
The SN75107AN IC RECEIVER 14DIP is a high-performance dual line receiver integrated circuit designed for reliable digital signal reception in TTL logic systems. this device incorporates two independent line receiver channels within a single 14-pin through-hole package, featuring robust TTL compatibility with high input sensitivity and noise rejection. The SN75107AN is engineered to operate at standard logic supply voltages and is suitable for a broad range of digital communication and interface applications.
Features:
- High Speed.
- Standard Supply Voltage.
- Dual Channels.
- High Common-Mode Rejection Ratio.
- High Input Impedance.
- High Input Sensitivity.
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage (VCC+ / VCC–) | ±4.75VDC to ±5.25VDC |
| Differential Input Threshold | ±25 mV |
| Common-Mode Input Voltage Range | ±3 VDC |
| Propagation Delay Time | 25 ns (max) |
| Supply Current (ICC+ + ICC–) | 30 mA (max) |
| Operating Temperature | 0°C to 70°C |
| Package | PDIP-14 (0.300″ body) |
Pin Configuration:
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | 1A | Non-inverting differential input for receiver channel 1. |
| 2 | 1B | Inverting differential input for receiver channel 1. |
| 3 | NC | No internal connection (do not connect). |
| 4 | 1Y | Output for receiver channel 1 (totem-pole TTL-compatible). |
| 5 | 1G | Strobe input for channel 1 (active-high enable). |
| 6 | S | Common strobe input (active-high, enables both channels when high). |
| 7 | GND | Ground (0 V reference). |
| 8 | 2G | Strobe input for channel 2 (active-high enable). |
| 9 | 2Y | Output for receiver channel 2 (totem-pole TTL-compatible). |
| 10 | NC | No internal connection (do not connect). |
| 11 | 2B | Inverting differential input for receiver channel 2. |
| 12 | 2A | Non-inverting differential input for receiver channel 2. |
| 13 | VCC– | Negative supply voltage (typically –5 V). |
| 14 | VCC+ | Positive supply voltage (typically +5 V). |
Foot print:
Package Include:
1x SN75107AN IC RECEIVER 14DIP
