SN75107AN IC RECEIVER 14DIP
The SN75107AN IC RECEIVER 14DIP is a high-performance dual line receiver integrated circuit designed for reliable digital signal reception in TTL logic systems. this device incorporates two independent line receiver channels within a single 14-pin through-hole package, featuring robust TTL compatibility with high input sensitivity and noise rejection. The SN75107AN is engineered to operate at standard logic supply voltages and is suitable for a broad range of digital communication and interface applications.
Features:
- High Speed.
- Standard Supply Voltage.
- Dual Channels.
- High Common-Mode Rejection Ratio.
- High Input Impedance.
- High Input Sensitivity.
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage (VCC+ / VCC–) | ±4.75VDC to ±5.25VDC |
| Differential Input Threshold | ±25 mV |
| Common-Mode Input Voltage Range | ±3 VDC |
| Propagation Delay Time | 25 ns (max) |
| Supply Current (ICC+ + ICC–) | 30 mA (max) |
| Operating Temperature | 0°C to 70°C |
| Package | PDIP-14 (0.300″ body) |

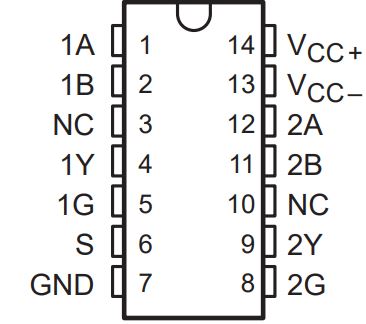

Pin Configuration:
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | 1A | Non-inverting differential input for receiver channel 1. |
| 2 | 1B | Inverting differential input for receiver channel 1. |
| 3 | NC | No internal connection (do not connect). |
| 4 | 1Y | Output for receiver channel 1 (totem-pole TTL-compatible). |
| 5 | 1G | Strobe input for channel 1 (active-high enable). |
| 6 | S | Common strobe input (active-high, enables both channels when high). |
| 7 | GND | Ground (0 V reference). |
| 8 | 2G | Strobe input for channel 2 (active-high enable). |
| 9 | 2Y | Output for receiver channel 2 (totem-pole TTL-compatible). |
| 10 | NC | No internal connection (do not connect). |
| 11 | 2B | Inverting differential input for receiver channel 2. |
| 12 | 2A | Non-inverting differential input for receiver channel 2. |
| 13 | VCC– | Negative supply voltage (typically –5 V). |
| 14 | VCC+ | Positive supply voltage (typically +5 V). |

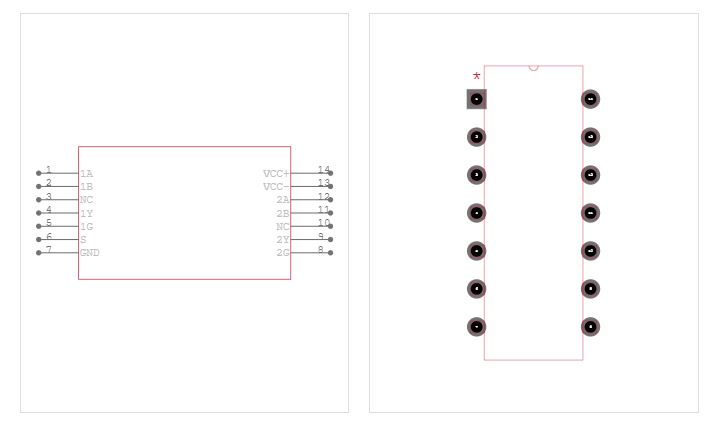

Foot print:
Package Include:
1x SN75107AN IC RECEIVER 14DIP
