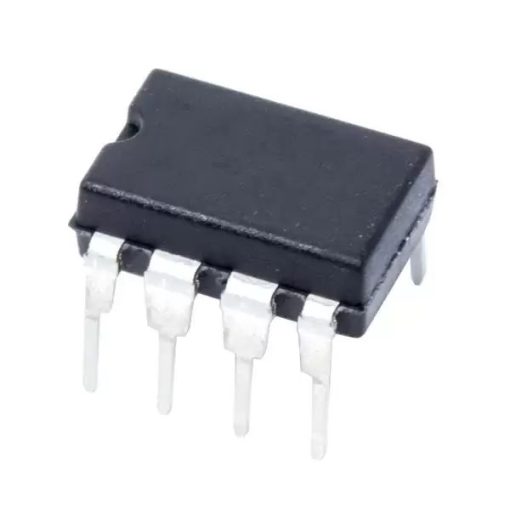

24C02N EEPROM IC 2Kbits 1MHz I2C DIP-8
24C02N 2-Kbit serial I²C EEPROM (256×8) in DIP-8: compact nonvolatile storage with page write, write-protect pin and low-power standby.
10.00 EGP
In stockSKU 4981878839922
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
24C02N EEPROM IC 2Kbits 1MHz I2C DIP-8
The 24C02N is a tiny, non-volatile serial EEPROM providing 2K-bit storage arranged as 256 × 8-bit words. It is implemented as a two-wire (I²C) memory device and is built to be compact and easy to integrate with microcontrollers. The device is optimized for low-power operation and is offered in common space-saving packages so it can be added to small boards or legacy through-hole designs.
Memory is accessed through a two-wire serial protocol with standard start/stop, acknowledge and sequential read/write procedures. The device retains the last addressed location between operations, supports page writes, and implements acknowledge-polling to signal internal write completion. A hardware write-protect pin provides a simple way to prevent unwanted memory writes. The interface is designed to be interoperable with typical microcontroller I²C peripherals.
The 24C02N is available in several package styles including an 8-lead DIP suitable for through-hole mounting, making it convenient for prototyping and repairable designs. Its small footprint, nonvolatile data retention, and simple serial interface make it suitable as a configuration, calibration or user-settings store on a wide range of electronic products. Ordering and packaging options are provided for both tube and reel shipment.
Features:
- Wide voltage operation (VCC = 1.7V to 5.5V).
- Operating ambient temperature: −40°C to +85°C.
- Internally organized (24C02 = 256 × 8).
- Two-wire serial interface (I²C).
- Schmitt trigger, filtered inputs for noise suppression.
- Bidirectional data transfer protocol.
- 1 MHz (at 5V) and 400 kHz compatibility (at lower voltages).
- Write Protect pin for hardware data protection.
- 8-byte page write mode (for 2K device).
- Partial page writes allowed.
- Self-timed write cycle (max 5 ms).
- High reliability: 1 million write cycles; 100 years data retention.
Specifications:
| Parameter (condition) | Value |
|---|---|
| Memory organization: | 256 × 8 (2 Kbits) |
| Supply voltage (recommended): | 1.7 V to 5.5 V |
| Absolute max VCC: | −0.3 V to +6.5 V |
| Operating ambient temperature: | −40°C to +85°C |
| Storage temperature: | −65°C to +150°C |
| Clock frequency (SCL): | Up to 1.0 MHz (at 5.0 V) 400 kHz (at lower voltages) |
| Supply current (Read @100 kHz, VCC=5.0V): | 0.4 mA, Max 1.0 mA |
| Supply current (Write @100 kHz, VCC=5.0V): | 2.0 mA, Max 3.0 mA |
| Standby current: | Min 0.1 µA Max 1.0 µA |
| Output low level VOL (VCC=5.0 V): | Max 0.4 V (IOL = 3.0 mA) |
| Pin capacitance (SDA): | CI/O max 8 pF (TA=25°C, f=1 MHz) |
| Write cycle time (tWR): | Max 5 ms |
| Endurance (byte mode, 5.0 V, 25°C): | 1,000,000 write cycles |
| Data retention: | 100 years |
| Page write size (24C02): | 8 bytes per page |
| Package: | DIP-8 |

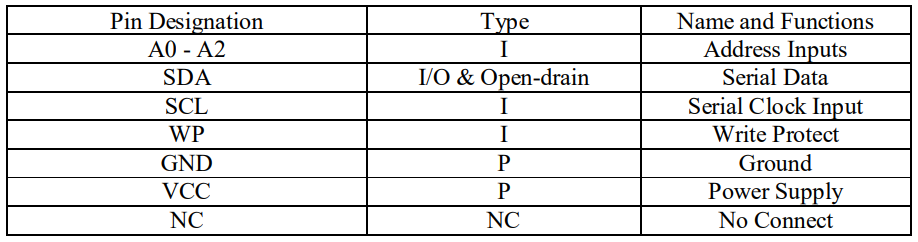

Pinout:
Applications:
- Consumer Electronics.
- Industrial Automation.
- Automotive Systems.
- Medical Devices.
- Telecommunication Equipment.
- Parameter Storage.
- Smart Cards and Identification Systems.
- Battery Management Systems.
- Printers and Office Automation.
- IoT Devices.
Package contents:
- 1x 24C02N EEPROM IC 2Kbits 1MHz I2C DIP-8
