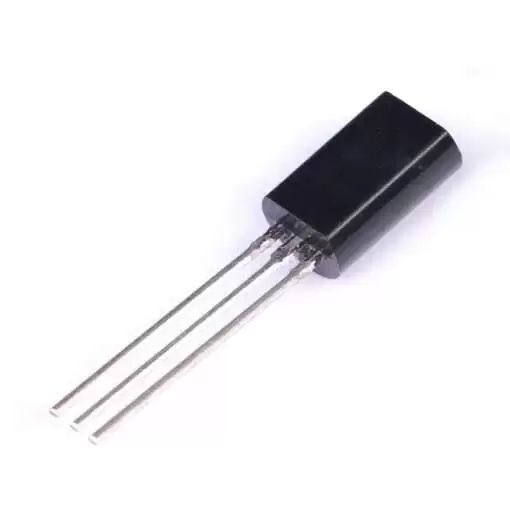

2SC2383 NPN TO-92 Bipolar Transistors – BJT
2.00 EGP
In stockSKU 3496300067473
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Features
- High voltage: VCEO=160V
- Large continuous collector current capability
Characteristics of 2SC2383 Transistor
- Type: NPN
- Collector-Emitter Voltage, max: 160 V
- Collector-Base Voltage, max: 160 V
- Emitter-Base Voltage, max: 6 V
- Collector Current − Continuous, max: 1 A
- Collector Dissipation: 0.9 W
- DC Current Gain (hfe): 60 to 320
- Transition Frequency, min: 100 MHz
- Operating and Storage Junction Temperature Range: -55 to +150 °C
- Package: TO-92L
Applications
- Color TV circuits
- Switching loads under 1000mA
- Motor Controllers
- Audio Amplifier & Audio Amplifier Stages
2sc2383 Datasheet
