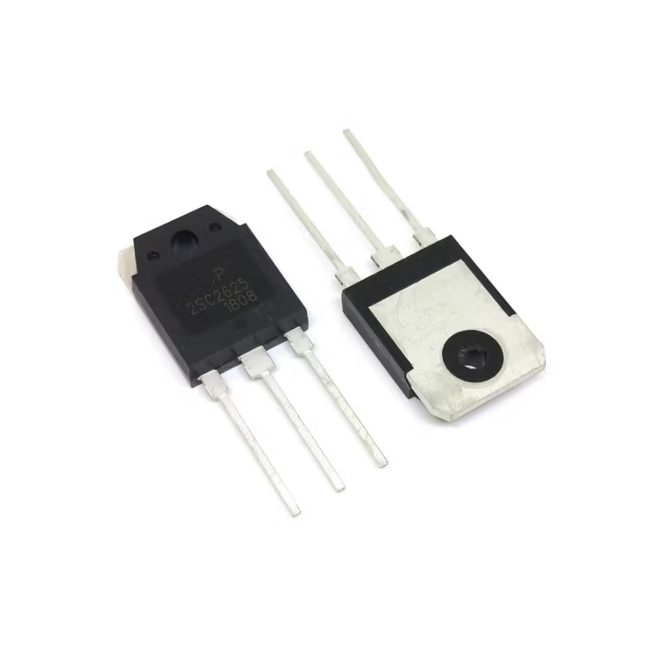

2SC2625 is an NPN bipolar junction transistor
The 2SC2625 is an NPN bipolar junction transistor designed for high-voltage and high-speed switching applications. It features a triple diffused planar structure, providing high reliability and performance. This transistor is ideal for use in switching regulators, ultrasonic generators, high-frequency inverters, and general-purpose power amplifiers.
Features :
- High voltage capability
- High-speed switching
- High reliability
- Triple diffused planar technology
- TO-3P package
Specifications :
| Parameter | Value |
|---|---|
| Type | NPN |
| Package | TO-3P |
| Collector-Base Voltage (VCBO) | 450V |
| Collector-Emitter Voltage (VCEO) | 400V |
| Emitter-Base Voltage (VEBO) | 7V |
| Collector Current (IC) | 10A |
| Base Current (IB) | 3A |
| Collector Power Dissipation (PC) | 80W @ TC=25°C |
| Junction Temperature (TJ) | 150°C |
| Storage Temperature (Tstg) | -55°C to 150°C |
| DC Current Gain (hFE) | 10 (min) at IC=4A, VCE=5V |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.2V (max) at IC=4A, IB=0.8A |
| Base-Emitter Saturation Voltage (VBE(sat)) | 1.5V (max) at IC=4A, IB=0.8A |
| Switching Times | ton = 1.0μs, tstg = 2.0μs, tf = 1.0μs (typical) |
Applications:
- Switching regulators
- Ultrasonic generators
- High frequency inverters
- General purpose power amplifiers
