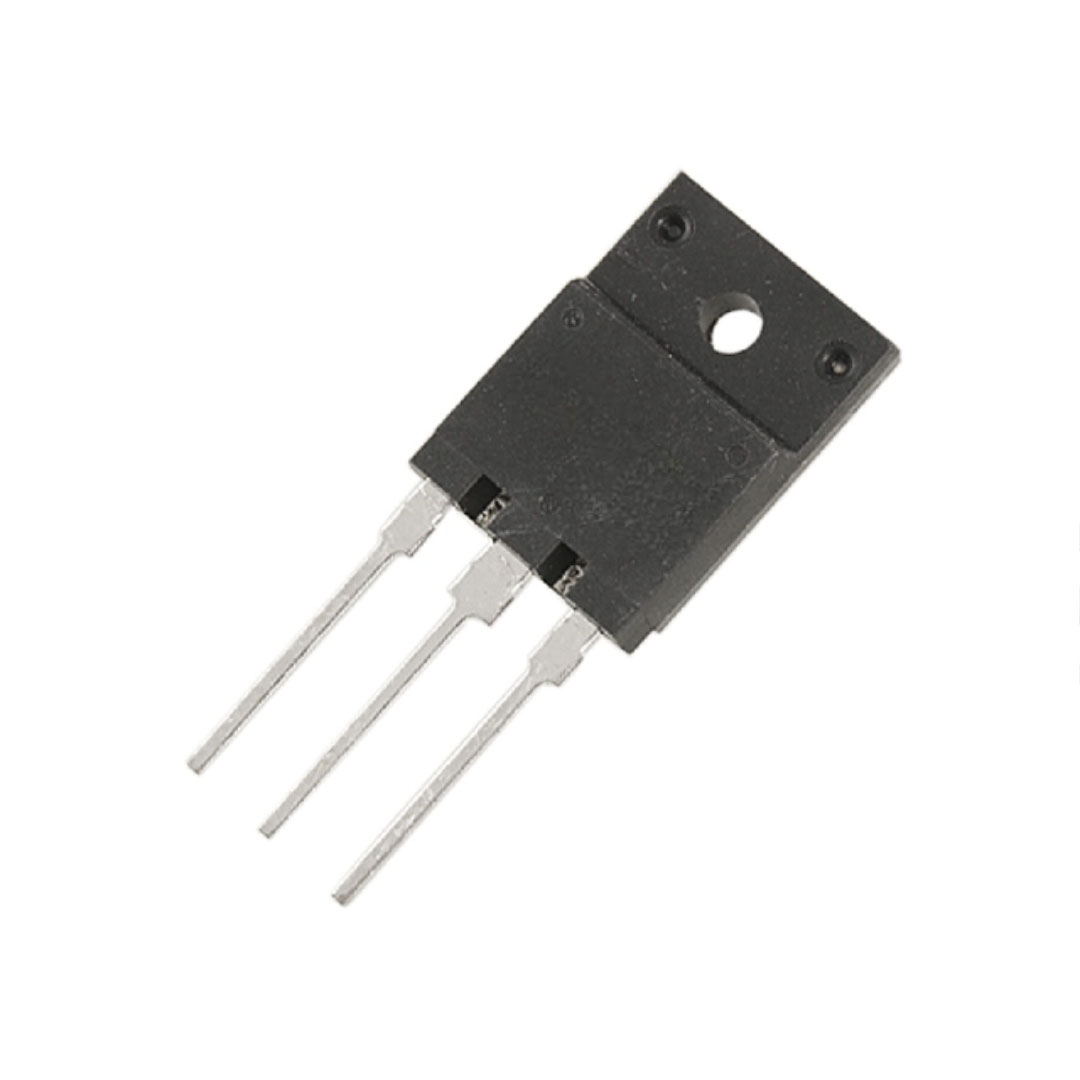

2SK1464 MOSFET Transistor TO-3PF
The 2SK1464 is an N-channel silicon MOSFET designed for ultrahigh-speed switching and converter applications.
125.00 EGP
In stockSKU 3496300141364
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
2SK1464 MOSFET Transistor TO-3PF
The 2SK1464 is a high-performance N-channel silicon MOSFET engineered by Sanyo for demanding power management and switching environments. This component is specifically optimized for ultrahigh-speed switching applications, making it an ideal choice for modern power converters and high-frequency inverter circuits. Its robust design allows it to handle a significant drain-to-source voltage of 900V, providing a high degree of reliability in high-voltage industrial and consumer electronic systems.
Features:
- Low ON-state resistance for reduced power losses.
- Ultrahigh-speed switching with low delay times.
- High drain-source breakdown voltage of 900V.
- Suitable for converters and power switching applications.
- Wide operating temperature range for reliability.
Specifications:
| Parameter | Value |
|---|---|
| Drain-Source Voltage | 900V |
| Gate-Source Voltage | ±30V |
| Drain Current (DC) | 8A |
| Drain Current (Pulse) | 16A |
| Power Dissipation (Tc=25°C) | 80W |
| Power Dissipation (Ta=25°C) | 3W |
| Channel Temperature | 150°C |
| Storage Temperature | -55 to +150°C |
| Drain-Source Breakdown Voltage | 900V |
| Gate Cutoff Voltage | 2.0 to 3.0V |
| Forward Transconductance | 2.5 to 5.0S |
| Static Drain-Source ON-State Resistance | 1.2 to 1.6Ω |
| Input Capacitance | 1600pF |
| Output Capacitance | 500pF |
| Reverse Transfer Capacitance | 350pF |
| Turn- ON Delay Time | 20ns |
| Rise Time | 80ns |
| Turn- OFF Delay Time | 350ns |
| Fall Time | 150ns |
| Diode Forward Voltage | 1.8V |
| Package Type | TO-3PML |
| Mounting Type | Through Hole |
Pin Configuration:
Applications:
- DC-DC converters for power conversion.
- Ultrahigh-speed switching circuits in power supplies.
- Motor drive systems requiring high voltage handling.
- Industrial equipment for efficient power management.
- Legacy electronic repairs and prototyping.
Package Include:
1x 2SK1464 MOS Transistor TO-3PF.
Datasheet:
