- Operating voltage : 5 V
- CPU voltage : 3.3 V
- input voltage Servo motor : 4.2 V ~ 7.2 V
- CPU : 32 digit
- Baud Rate (USB) : 115200
- Transmission speed (bluetooth / UART) : 9600
- Flash storage capacity : 16M
- Red indicator : power indicator CPU
- Gree Indicator : servo engine indicator
- Yellow flag : Mode Wireless PS2 Controller
- protocol : UART
- computer protocol : support
- Individual work protocol : support
- Dinner servo motor type : 9G ~ 55G (3.3 V ~ 7.2 V)
- Online Operations Support : C51 / ARM / DSP / Buletooth / Computer
- mode type : USB / UART / Offline Independent / PS2 wireless controller
- 1 x USB cable
- 1×32 Channels Motor Controller Card
VCC: Servo VCC input can be connected to 4.2 V-7.2 V power supply, plugged in the power supply to the anode, please.
GND: General GND servo controller can be connected to GND supply GND power servo or CPU; connected to the power supply for the cathode, please.
5 V: Servo controller CPU power input VCC, you can only connect to 5V
note: 5 V interface and the USB interface you can not access it weather.

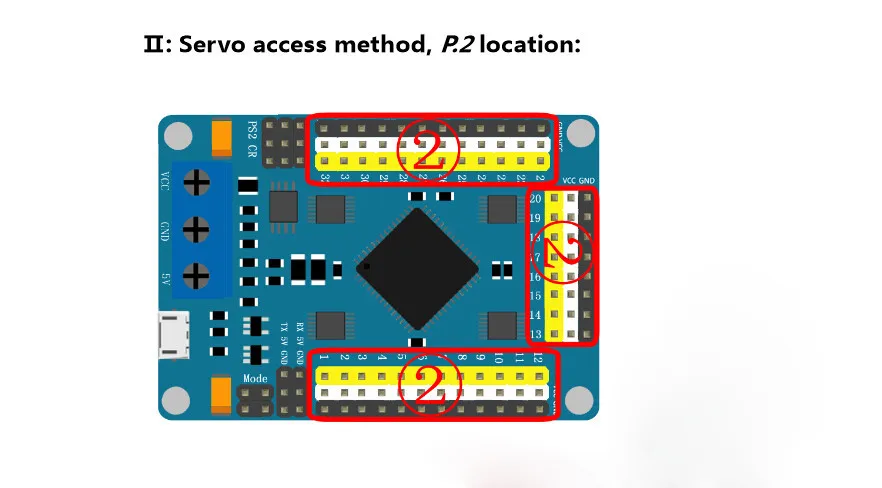

Yellow Pin: . Servo I / O connected to the entrance, he always yellow or yellow soil servo
White Pin: Servo VCC connected to the input, he always servo red or dark red.
Black Pin: Servo GND connected to the input he always brown or black servo.

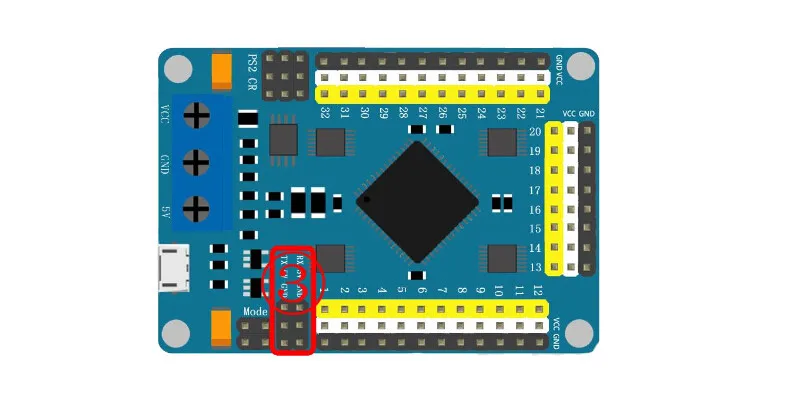

green circle position: . power input CPU GND for servo controller input only
yellow circle position: power input CPU VCC servo controller, 5 V single output.
purple circle position: UART port RX servo controller, he always access other devices UART TX port.
orange circle position: port UART TX servo controller, you usually access other devices UART RX port.
location, use four lines to align the Bluetooth sensor, 5V-VCC, GND-GND, RX-TX-RX.Install phone software and make a couple. software as open.
using USB line to computer and servo controller attached to each other, do not forget to connect before setting mode.
