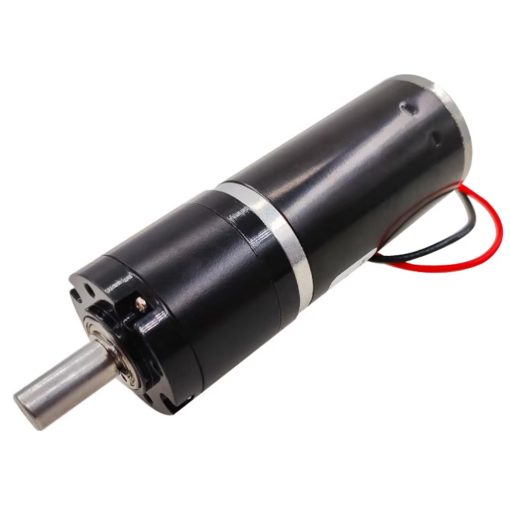

32GP-31ZY High Torque Planetary Reduction DC Gear Motor 12V 296RPM D-Shaft 7mm with Mount Bracket
The 32GP-31ZY 12V 296RPM Planetary Reduction DC Motor is a compact yet powerful geared motor designed for robotics, automation, smart locks, DIY projects, and industrial motion control applications.
This motor features a metal planetary gearbox that delivers smooth operation, high transmission efficiency, and significantly higher torque compared to ordinary spur gear motors. The 12V brushed DC motor combined with a 27:1 planetary reduction ratio provides a no-load speed of 296RPM while maintaining reliable torque output for demanding applications.
Features:
- High torque 12V planetary gear motor.
- No-load speed of 296RPM.
- Metal planetary gearbox for high efficiency and durability.
- Supports CW and CCW rotation.
- D-shaped output shaft for secure coupling.
Specifications:
| Parameter | Details |
|---|---|
| Product Type | Planetary Reduction DC Gear Motor |
| Model | 32GP-31ZY |
| Rated Voltage | 12V DC |
| Gear Reduction Ratio | 27:1 |
| No Load Speed | 296 RPM |
| No Load Current | 0.45 A |
| Rated Speed | 240 RPM |
| Rated Current | 1.8 A |
| Rated Torque | 4 Kg.cm |
| Rated Power | 21.6 W |
| Stall Torque | 12 Kg.cm |
| Stall Current | 5 A |
| Gearbox Type | Planetary Gearbox |
| Gear Material | Metal |
| Motor Type | Brushed DC Motor |
| Rotation Direction | CW / CCW Reversible |
| Shaft Type | D Shaft |
| Gearbox Length | 31.5mm |
Applications:
- Mobile robots
- Smart door locks
- Robot arms
- Conveyor systems
- Automatic curtains
- DIY robotics projects
- Industrial automation
- Camera sliders
- Small electric actuators
Package Include:
- 1x 32GP-31ZY 12V 296RPM Planetary DC Gear Motor

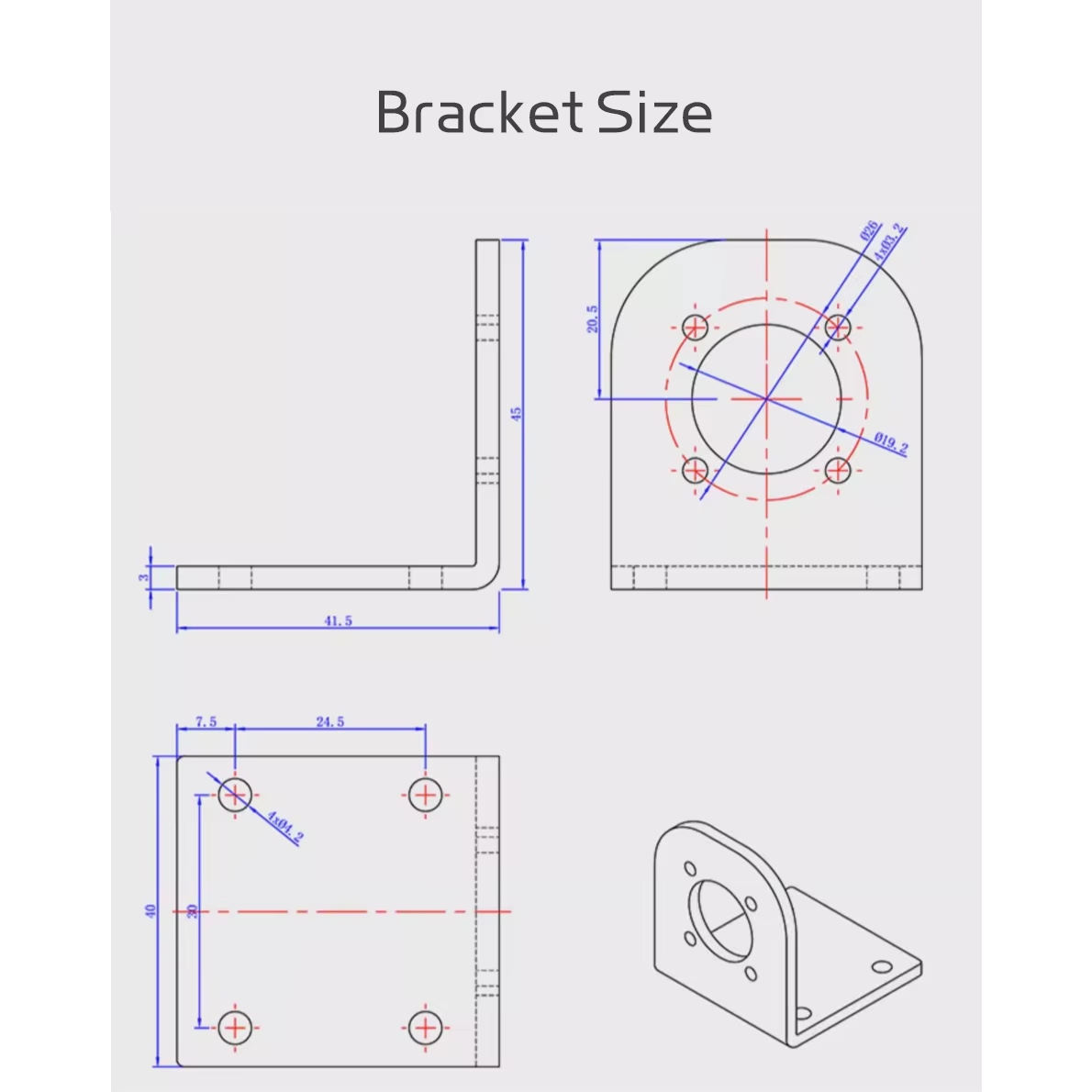

- 1x Metal Mounting Bracket
- 4x Mounting Screws
