4025 3-input NOR Gate IC DIP-14
The 4025B is a high-performance monolithic integrated circuit, expertly fabricated using advanced Metal Oxide Semiconductor (CMOS) technology. This IC contains three independent 3-input NOR gates, providing designers with a direct and reliable implementation of NOR logic functions.
✅Features
- High-Speed Performance
- Symmetrical Design
- Low Power Consumption
- Industrial Standard
📜📚Specifications
| Parameter | Symbol | Value / Range | Unit |
|---|---|---|---|
| Supply Voltage (Recommended) | VDD | 3 to 20 | V |
| Supply Voltage (Absolute Max) | VDD | -0.5 to +22 | V |
| DC Input Voltage | VI | -0.5 to VDD + 0.5 | V |
| DC Input Current | II | ±10 | mA |
| Propagation Delay (Typ @ 10V) | tPD | 50 | ns |
| Power Dissipation (per Package) | PD | 200 | mW |
| Operating Temperature | Top | -55 to +125 | °C |
| Storage Temperature | Tstg | -65 to +150 | °C |

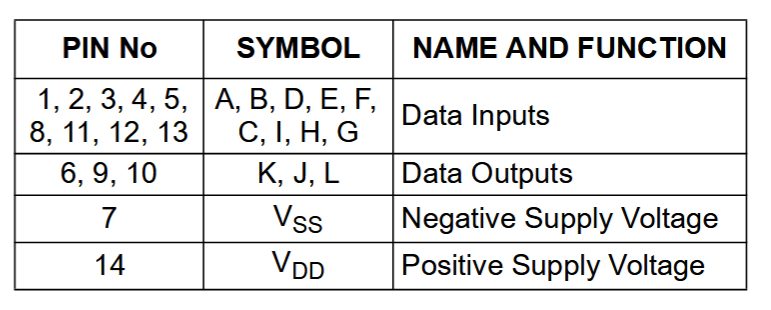

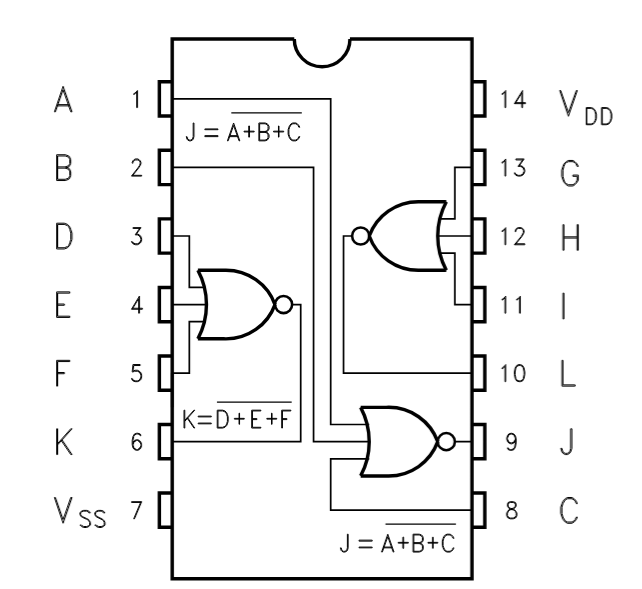

⚓Pin Configuration
💻Applications
- Direct implementation of NOR logic functions in digital systems.
- Complementary logic support for existing CMOS gate families.
- General-purpose signal buffering and digital switching.
🎁Package Content
- 1 x 4025 3-input NOR Gate IC DIP-14
