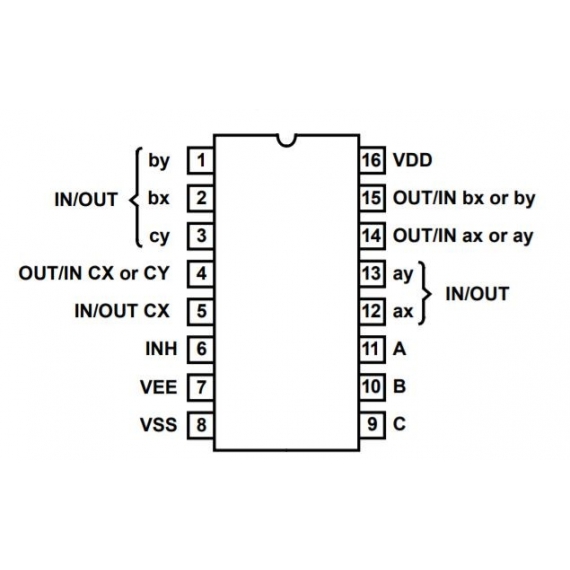

4053 Single 8-Channel Analog Multiplexer or Demultiplexer With Logic-Level Conversion
15.00 EGP
In stockSKU 7812723811237
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Description
The CD405xB analog multiplexers and demuliplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD – VSS and VDD – VEE supply-voltage ranges, independent of the logic state of the control signals.
Features
- Wide Range of Digital and Analog Signal Levels
- Digital: 3 V to 20 V
- Analog: ≤20 VP-P
- Low ON Resistance,125 Ω (Typical) Over 15 VP-P Signal Input Range for VDD – VEE = 18 V
- High OFF Resistance, Channel Leakage of ±100 pA (Typical) at VDD– VEE = 18 V
- Logic-Level Conversion for Digital Addressing Signals of 3 V to 20 V (VDD – VSS = 3 V to 20 V) to Switch Analog Signals to 20 VP-P (VDD – VEE= 20 V) Matched Switch Characteristics, rON = 5 Ω (Typical) for VDD – VEE = 15 V Very Low Quiescent Power Dissipation Under All Digital-Control Input and Supply Conditions, 0.2 µW (Typical) at VDD – VSS = VDD – VEE = 10 V
- Binary Address Decoding on Chip
- 5 V, 10 V, and 15 V Parametric Ratings
- 100% Tested for Quiescent Current at 20 V
- Maximum Input Current of 1 µA at 18 V Over Full Package Temperature Range, 100 nA at 18 V and 25°C
- Break-Before-Make Switching Eliminates Channel Overlap
Specifications:
| Product Attribute | Attribute Value |
| Product Category: | Multiplexer Switch ICs |
| Series: | CD4053B |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-16 |
| Number of Channels: | 3 Channel |
| Configuration: | 3 x 2:1 |
| Supply Voltage – Min: | 5 V |
| Supply Voltage – Max: | 18 V |
| Minimum Dual Supply Voltage: | +/- 2.5 V |
| Maximum Dual Supply Voltage: | +/- 10 V |
| On Resistance – Max: | 240 Ohms |
| On Time – Max: | 720 ns |
| Off Time – Max: | 450 ns |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 125 C |
| Bandwidth: | 30 Mhz |
| Operating Supply Voltage: | 5 V to 18 V |
| Propagation Delay Time: | 60 ns |
| Supply Current – Max: | 100 uA |
