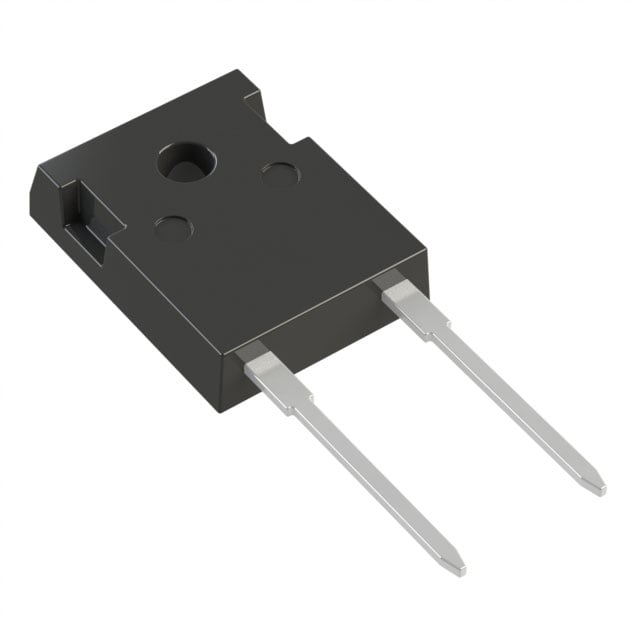

40EPS12 High Voltage Input Rectifier Diode 40A 1200V TO-247AC-2L
High voltage rectifier optimized for a very low forward voltage drop with moderate leakage. It features a glass passivated pellet chip junction and single-diode circuit configuration. The device is intended for use in main input rectification applications (single or three-phase bridge).
Features
- Very low forward voltage drop for increased efficiency
- 150 °C maximum operating junction temperature
- Glass passivated pellet chip junction for robust reliability
- Environmentally compliant
Specifications
| Parameter | Symbol | Value / Rating | Unit | Test Conditions / Remarks |
|---|---|---|---|---|
| Max. Average Forward Current | IF(AV) | 40 | A | TC = 105 °C, 180° conduction half sine wave |
| Max. Peak Repetitive Reverse Voltage | VRRM | 1200 | V | Maximum peak reverse voltage |
| Max. Non-Repetitive Peak Reverse Voltage | VRSM | 1300 | V | Peak non-repetitive surge voltage |
| Max. Forward Voltage Drop | VFM | 1.1 | V | 40 A, TJ = 25 °C (1.0 V typ. at 20 A) |
| Max. Peak One-Cycle Non-Repetitive Surge Current | IFSM | 475 | A | 10 ms sine pulse, no voltage reapplied (400 A with rated VRRM) |
| Max. Reverse Leakage Current | IRM | 1.0 | mA | TJ = 150 °C, VR = Rated VRRM (0.1 mA at 25 °C) |
| Forward Slope Resistance | rt | 7.16 | mΩ | TJ = 150 °C |
| Threshold Voltage | VF(TO) | 0.74 | V | TJ = 150 °C |
| Operating Junction & Storage Temperature Range | TJ, TStg | -40 to +150 | °C | Maximum temperature rating |
| Thermal Resistance, Junction to Case | RthJC | 0.6 | °C/W | DC operation |
| Thermal Resistance, Junction to Ambient | RthJA | 40 | °C/W | Ambient air thermal resistance |
| Thermal Resistance, Case to Heatsink | RthCS | 0.2 | °C/W | Mounting surface, flat, smooth, and greased |

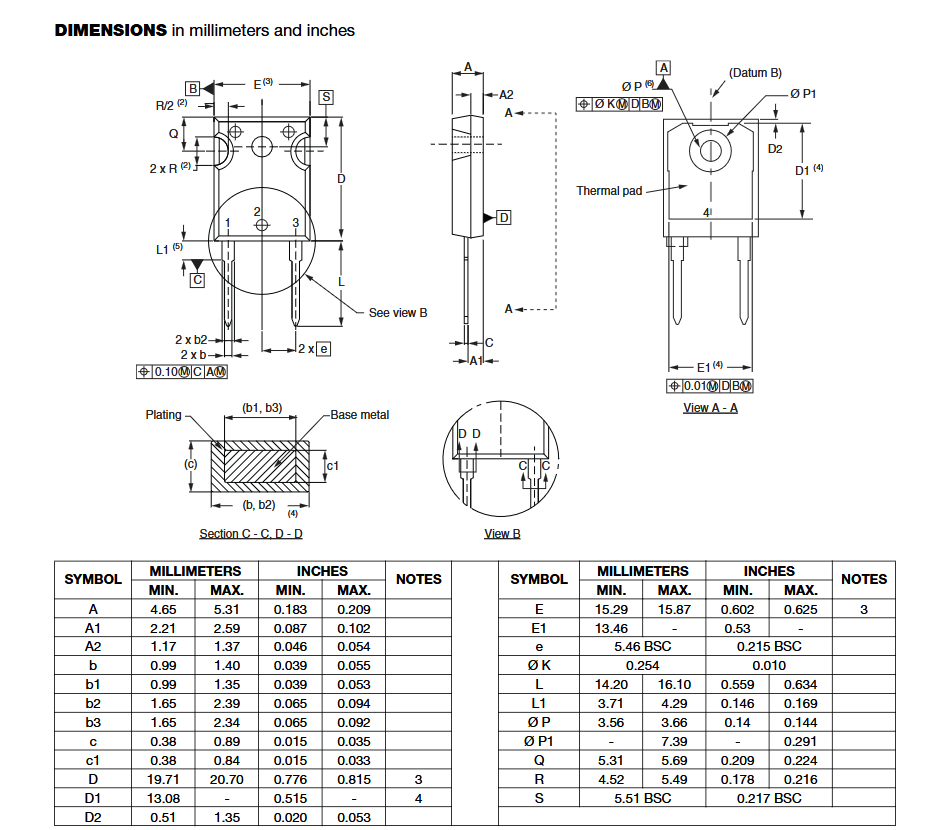

| Package Outline | — | TO-247AC 2L | — | Single diode, matte tin plated leads |
| Approximate Weight | — | 6 | g | — |
| Mounting Torque | — | 6 to 12 (5 to 10) | kgf·cm (lbf·in) | Min to max recommended mounting torque |
Applications
- Input rectification in power conversion systems
- Main input rectification circuits (single-phase or three-phase bridge configurations)
Package Content
- 1 x 40EPS12 High Voltage Input Rectifier Diode 40A 1200V TO-247AC-2L
