| Mfr. Part # | RS1M |

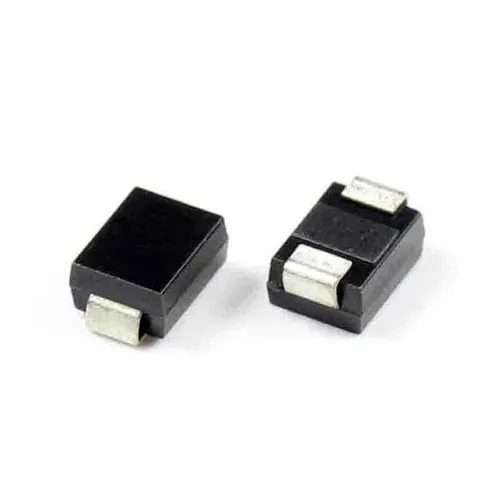

| Package | SMA |
| Datasheet | RS1M |
| Description | 1.3V@1A 500ns Single 1A 1kV SMA Diodes – Fast Recovery Rectifiers ROHS |
Specifications
| Attribute | Value |
| Category | Diodes/Diodes – Fast Recovery Rectifiers |
| Datasheet | RS1M |
| RoHS | |
| Forward Voltage (Vf@If) | 1.3V@1A |
| Reverse Leakage Current | 5uA@1kV |
| Reverse Recovery Time (trr) | 500ns |
| Diode Configuration | Single |
| Average Rectified Current (Io) | 1A |
| Operating Temperature | -55℃~+150℃@(Tj) |
| Reverse Voltage (Vr) | 1kV |
