FR157 GOODWORK High Voltage Fast Recovery Rectifier Diode 1000V 1.5A DO-15
The GOODWORK FR157 is a high-voltage fast recovery rectifier diode designed for efficient rectification in power conversion and switching applications. With its fast reverse recovery characteristic, it significantly reduces switching losses and improves circuit efficiency compared to standard rectifier diodes. The device is housed in a robust DO-15 through-hole package, making it suitable for both commercial and industrial electronic designs.
The FR157 is widely used in switch-mode power supplies (SMPS), DC-DC converters, battery chargers, inverters, and inductive load protection circuits. Its high surge current capability and low forward voltage drop help ensure reliable operation under demanding conditions. The diode is manufactured using advanced semiconductor technology and complies with RoHS environmental standards.
Features:
- Fast recovery rectifier design.
- High efficiency operation.
- Low forward voltage drop.
- High current handling capability.
- High surge current capability.
- Low power loss.
- Suitable for high-frequency switching circuits.
- Reliable through-hole package.
- RoHS compliant.
- Halogen-free construction.
- Excellent thermal performance.
- Suitable for commercial and industrial applications.
- High reliability and long service life.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | FR157 |
| Brand | GOODWORK |
| Diode Type | Fast Recovery Rectifier |

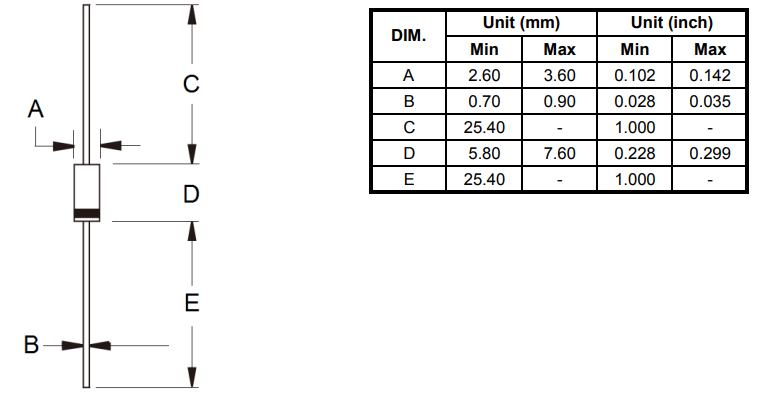

| Package | DO-15 (DO-204AC) |
| Mounting Type | Through Hole |
| Configuration | Single Diode |
| Maximum Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Average Forward Rectified Current (IF(AV)) | 1.5A |
| Peak Forward Surge Current (IFSM) | 50A |
| Forward Voltage (VF) @ 1.5A | 1.2V Max |
| Reverse Recovery Time (Trr) | 500ns Max |
| Reverse Leakage Current (IR) @ 25°C | 5µA Max |
| Junction Capacitance | 20pF |
| Operating Junction Temperature | -55°C to +150°C |
| Storage Temperature | -55°C to +150°C |
Pinout:
| Pin | Description |
|---|---|
| Anode (A) | Positive Current Input |
| Cathode (K) | Current Output (Marked End) |
Applications:
- Switching power supplies (SMPS).
- DC-DC converters.
- AC-DC power supplies.
- Battery chargers.
- Inverters.
- Freewheeling diode circuits.
- Flyback converter circuits.
- Snubber networks.
- Industrial control equipment.
- Power management systems.
- General-purpose rectification.
- Motor drive circuits.
