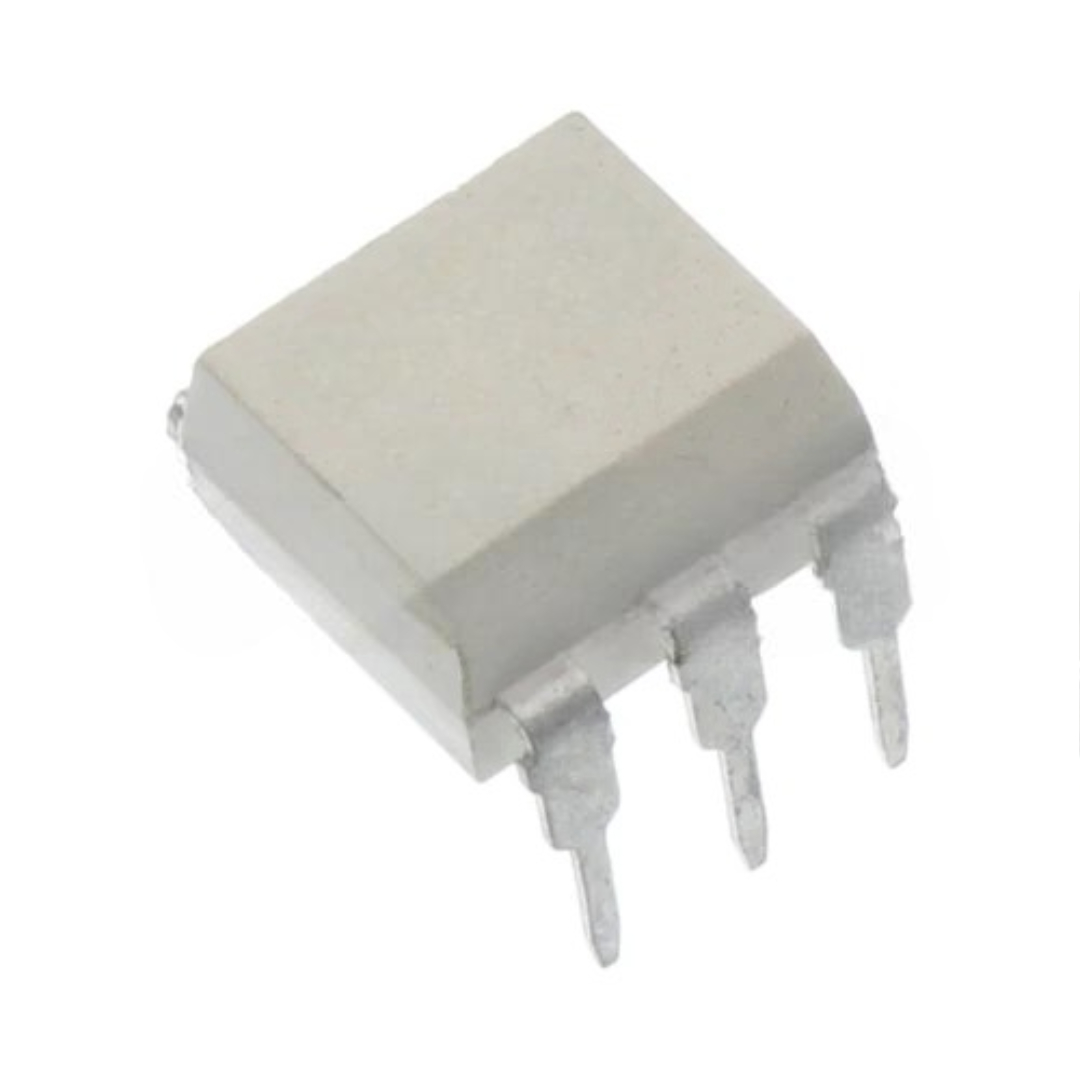

4N26 Optocouplers – Phototransistor Output 30V 50mA DIP-6

4N26 is a 6-pin DIP optocoupler with a gallium arsenide IR LED optically coupled to a silicon phototransistor, providing 7500V isolation.

10.00 EGP

In stockSKU 3496300084722
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Availability: In Stock
SKU:3496300084722
4N26 Optocouplers – Phototransistor Output 30V 50mA DIP-6

The 4N26 Optocoupler – Phototransistor Output DIP-6 is a Global Optoisolator™ device, representing an economical and high-performance choice for medium-speed switching and interface applications. This component is a 6-Pin DIP Optoisolator and consists of two primary elements: a Gallium Arsenide infrared emitting diode on the input side and a monolithic silicon phototransistor detector on the output side. These two sections are optically coupled, providing a robust method for electrical isolation between input and output circuits.

Features:
  • Gallium arsenide infrared LED optically coupled to a silicon phototransistor for reliable isolation.
  • Minimum current transfer ratio (CTR) of 20% at IF=10mA and VCE=10V.
  • High isolation surge voltage of 7500Vac(pk) for 1 second.
  • Wide operating temperature range from -55°C to +100°C.
Specifications:
Parameter Value
Component Description: Optoisolator, Phototransistor Output
Manufacturer: Motorola
Minimum CTR: 20%
Isolation Voltage (VISO, Peak AC, 1s): 7500 VAC(pk) For 1 SEC
Input Forward Current (Continuous): 60 mA
Input Reverse Voltage (VR): 3 V
Collector-Emitter Voltage (VCEO): 30 V
Collector Current (Continuous): 150 mA
Total Device Power Dissipation @ 25°C: 250 mW
Ambient Operating Temperature Range: -55°C to +100°C
Storage Temperature Range: -55°C to +150°C
Forward Voltage (Typical @ 10mA): 1.3 V
Turn-On Time (ton): 2.8 μs
Turn-Off Time (toff): 4.5 μs
Package Type: 6-Pin DIP
Pin Configuration:
Applications:
  • Power Supply Regulators.
  • Digital Logic Inputs.
  • Microprocessor inputs.
Package Include:
  • 1x 4N26 Optocouplers – Phototransistor Output 30V 50mA DIP-6
Datasheet
