5011AS 7-Segment 0.56 inch Common Cathode-Red Display
The 5011AS 7-Segment 0.56 inch Common Cathode-Red Display is a versatile LED component designed for displaying numbers and select characters in electronic projects. With a 0.56-inch digit height, this single-digit display delivers red illumination for excellent readability. Its common cathode design streamlines integration into circuits, making it a go-to choice for hobbyists and professionals alike.
Features:
- Bright Red Output: High-visibility illumination for clear viewing.
- Energy Efficient: Low power draw, ideal for portable devices.
- Simple Integration: Common cathode setup works seamlessly with microcontrollers.
- Robust Build: Long-lasting LED technology for reliable performance.
- Compact Form: 0.56-inch size fits easily into various designs.
Specifications:
| Parameter | Value |
|---|---|
| Digit Height | 0.56 inches (14.2 mm) |
| Configuration | Common Cathode |
| Color | Red |
| Forward Voltage | 2.0V |
| Forward Current | 20mA per segment |
| Wavelength | 630nm |
| Operating Temperature | -20°C to +80°C |
| Pin Count | 10 |
Common Cathode (CC)
In a common cathode display, all cathode pins are connected together and LEDs are controlled via an anode terminal. It means to turn ON the LED (segment), we have to apply proper voltage to the anode pin.

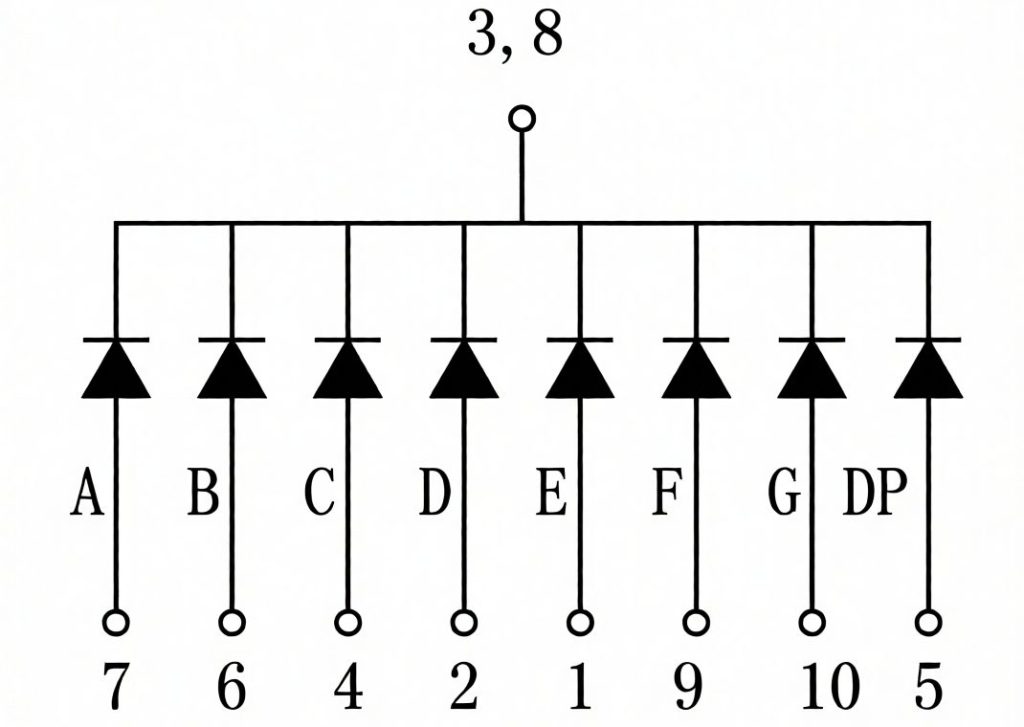

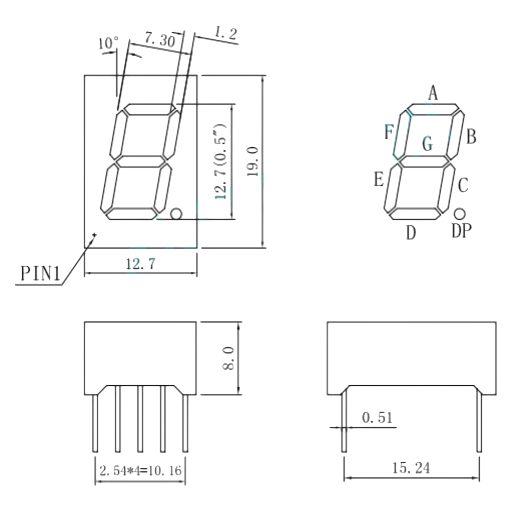

Pin Diagram
Applications:
- Digital counters and event counters
- Digital clocks and timers
- Voltage and current meters
- Temperature displays
- Electronic control panels
- Arduino and microcontroller projects
- Digital measurement instruments
- Numeric status indicators
- DIY electronic equipment
Package Includes:
- 1 × 5011AS 7-Segment 0.56 inch Common Cathode Red.
