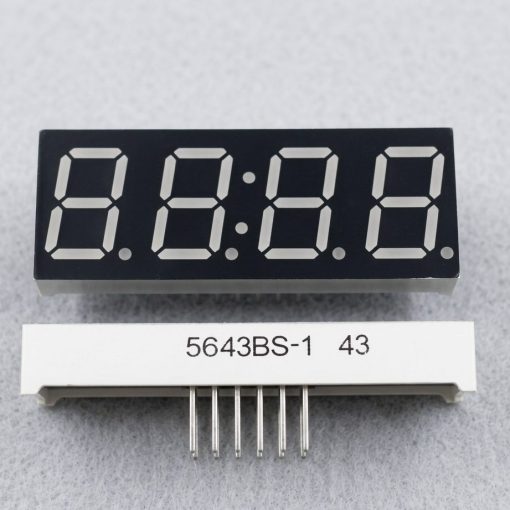

5643BS Clock Time 7 Segment 4 Digit 0.56 Inch Com.Anode – RED
The 5643BS is a high-quality, 0.56-inch, 4-digit 7-segment LED display module designed specifically for clock, timer, and counter applications. Featuring a sleek black face with contrasting segments, it includes a central colon (D5, D6) ideal for time separation.
This model utilizes a Common Anode configuration, meaning the positive terminals of all LEDs in a particular digit share a single common pin, allowing for efficient multiplexed control through a microcontroller or display driver.
Features
- Integrated Clock Colon
- Multiplexed Configuration
- Compact Standard Footprint
- High-Contrast Design
Pinout Table
| Pin Number | Connected Component / Segment Function | Type |
|---|---|---|
| Pin 1 | Segment F | Cathode Input |
| Pin 2 | Segment D | Cathode Input |
| Pin 3 | Decimal Point (DP) | Cathode Input |
| Pin 4 | Segment C | Cathode Input |
| Pin 5 | Segment G | Cathode Input |
| Pin 6 | DIG. 4 (Digit 4 Common Control) | Common Anode Terminal |
| Pin 7 | Segment B | Cathode Input |
| Pin 8 | DIG. 3 (Digit 3 Common Control) | Common Anode Terminal |
| Pin 9 | DIG. 2 (Digit 2 Common Control + Central Colon Control) | Common Anode Terminal |
| Pin 10 | Segment E | Cathode Input |
| Pin 11 | Segment A | Cathode Input |
| Pin 12 | DIG. 1 (Digit 1 Common Control) | Common Anode Terminal |
Applications
- Digital Clocks and Timers
- Electronic Instrument Panels
- Embedded Projects
- Industrial Counters
Package Content
- 1 x 5643BS Clock Time 7 Segment 4 Digit 0.56 Inch Com.Anode – RED
