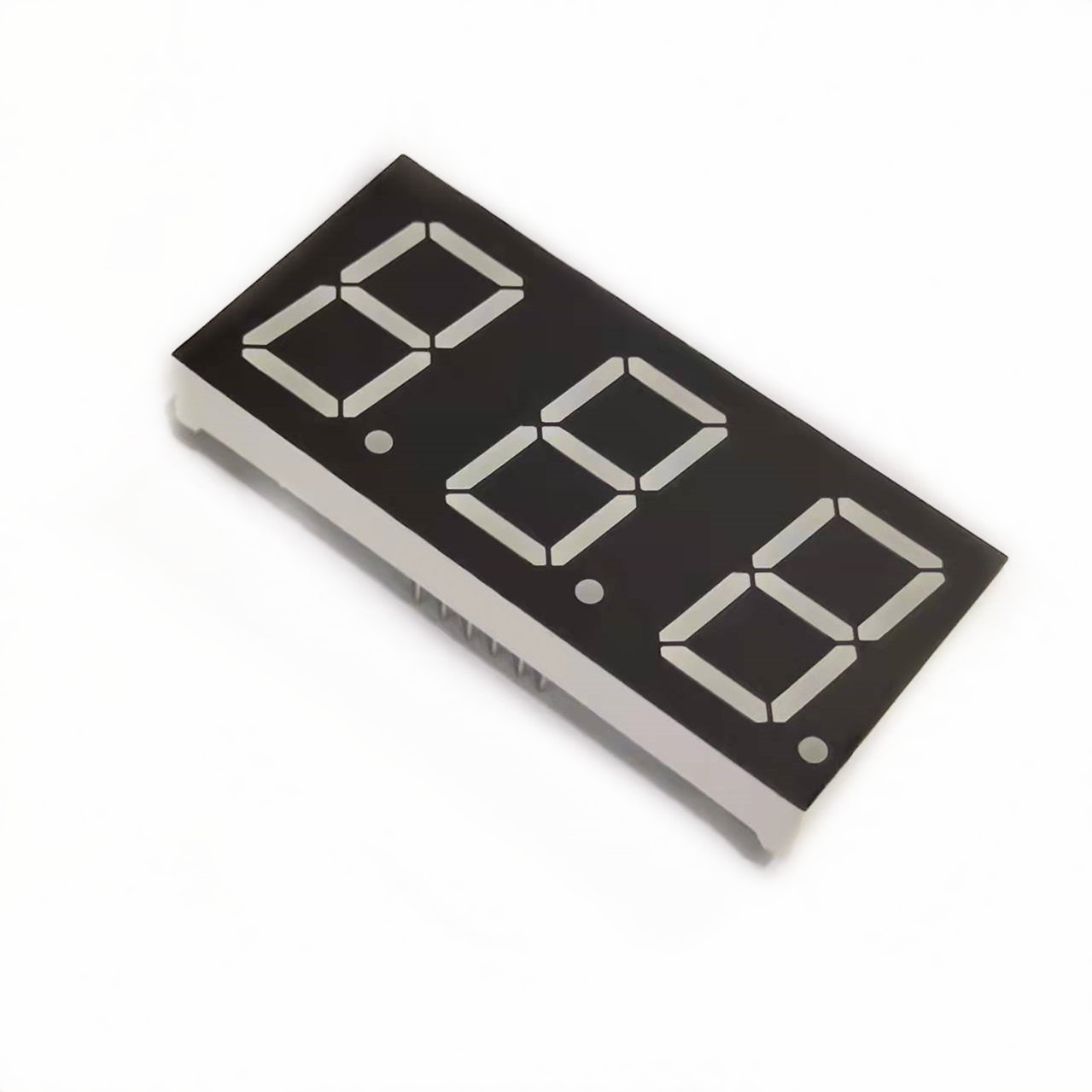

D8031A/B 7-Segment RED Display Common Anode 3 Digit 0.8 Inch
D8031A/B 3-digit 7-segment RED display, 0.8″ (20.32mm) digits, common anode, DP per digit, 2.54mm pins. For clocks, counters, meters.
15.00 EGP
Buy NowD8031A/B 7-Segment RED Display Common Anode 3 Digit 0.8 Inch

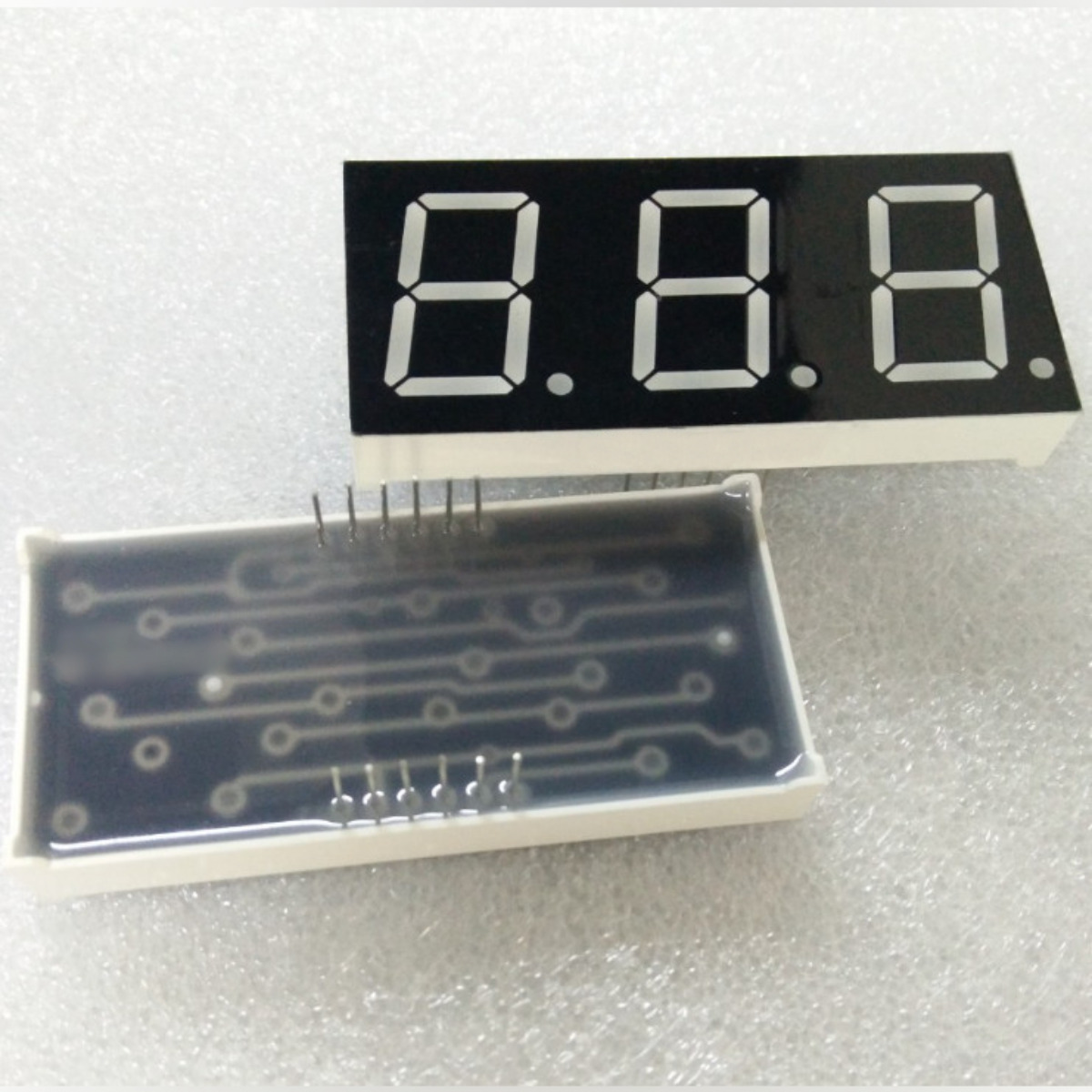

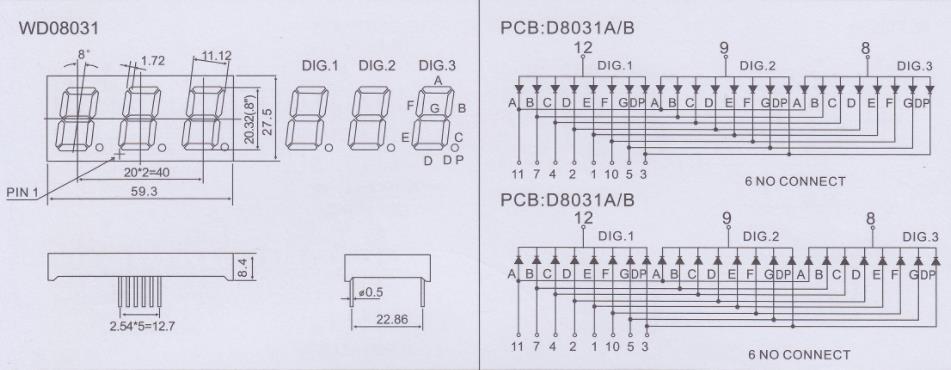

The D8031A/B is a through‑hole, 3‑digit seven‑segment numeric LED display with a decimal point (DP) on each digit. Each digit has a height of 20.32 mm (0.8″), and the three digits are spaced on a 20 mm center‑to‑center pitch, all housed in a compact 59.3 mm × 27.5 mm body with a slim 8.4 mm.
The display uses standard 2.54 mm pitch through‑hole pins, making it compatible with standard PCBs and sockets. A PIN 1 marking ensures correct orientation during assembly.
Features
- 3‑digit seven‑segment numeric display with decimal point (DP) per digit
- 0.8 inch (20.32 mm) digit height for clear, easy reading
- Common anode configuration
- Standard 2.54 mm pin pitch
- PIN 1 indicator for correct orientation
Specifications
| Display Type | 7-Segment Numeric LED Display |
| Number of Digits | 3 Digits, each with Decimal Point (DP) |
| Polarity | Common Anode |
| Emission Color | Red |
| Digit Height | 20.32 mm (0.8″) |
| Pin Pitch | 2.54 mm |
Applications
- Digital clocks, timers and counters
- Panel meters and test/measurement instruments
- Industrial control panels and instrumentation
- Household appliances with numeric readouts
Package Content
- 1 x D8031A/B 7-Segment RED Display Common Anode 3 Digit 0.8 Inch
