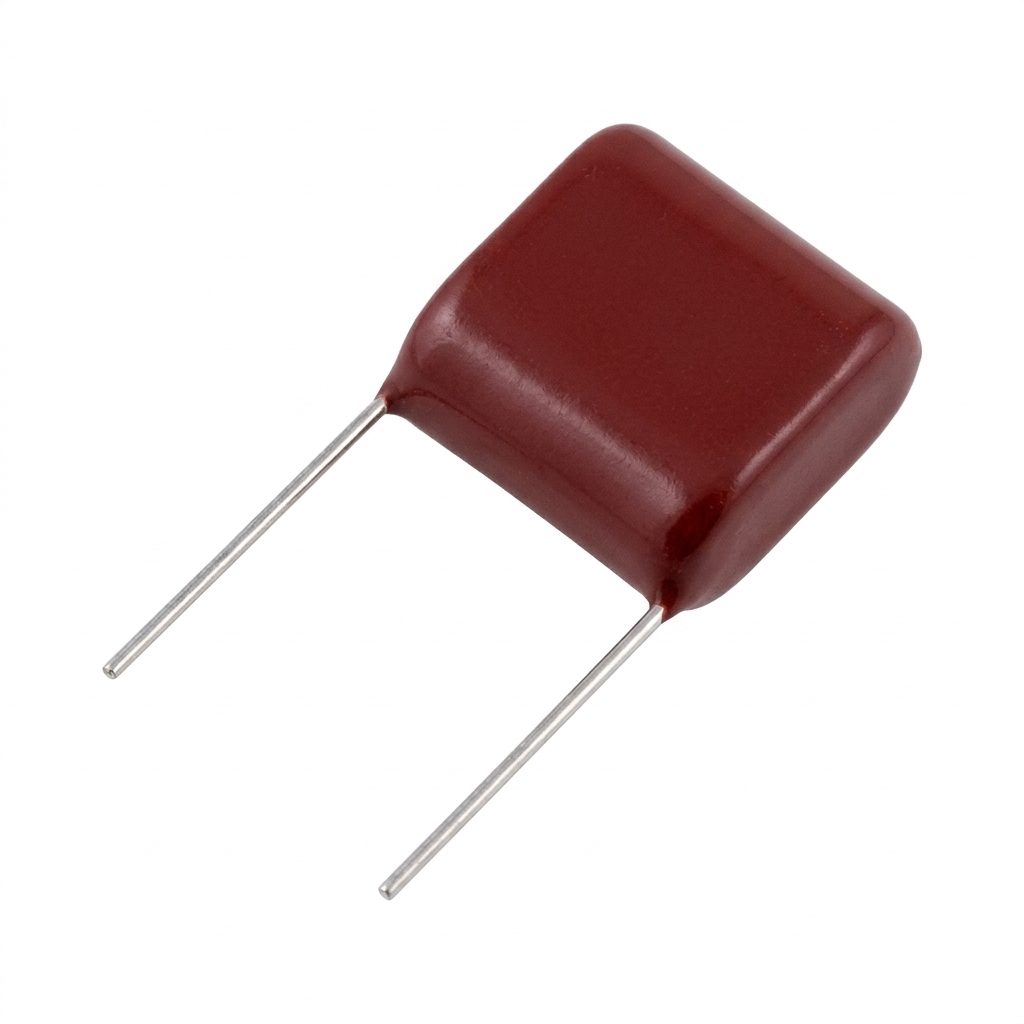

6n8k Polyester Capacitor 6.8nF 1000V Pitch 10mm
The 6n8K Polyester Capacitor is a non-polarized film capacitor designed for electronic circuits that require stable capacitance and high voltage handling. Its polyester dielectric provides reliable performance in general-purpose applications, including signal and power circuits.
With a capacitance of 6.8nF and a 1000V rated voltage, this capacitor is suitable for applications where electrical insulation and voltage tolerance are important. The 10mm lead pitch makes it convenient for through-hole PCB mounting and circuit assembly.
Features:
- Polyester film dielectric.
- Non-polarized construction.
- Suitable for high-voltage applications.
- Stable capacitance performance.
- Through-hole mounting.
- Suitable for PCB assembly.
- Compact and reliable construction.
Specifications:
| Specification | Value |
|---|---|
| Capacitance | 6.8nF |
| Capacitance Code | 6n8 |
| Tolerance Code | K |
| Tolerance | ±10% |
| Rated Voltage | 1000V |
| Dielectric Material | Polyester |
| Capacitor Type | Polyester Film Capacitor |
| Polarity | Non-Polarized |
| Mounting Type | Through-Hole |

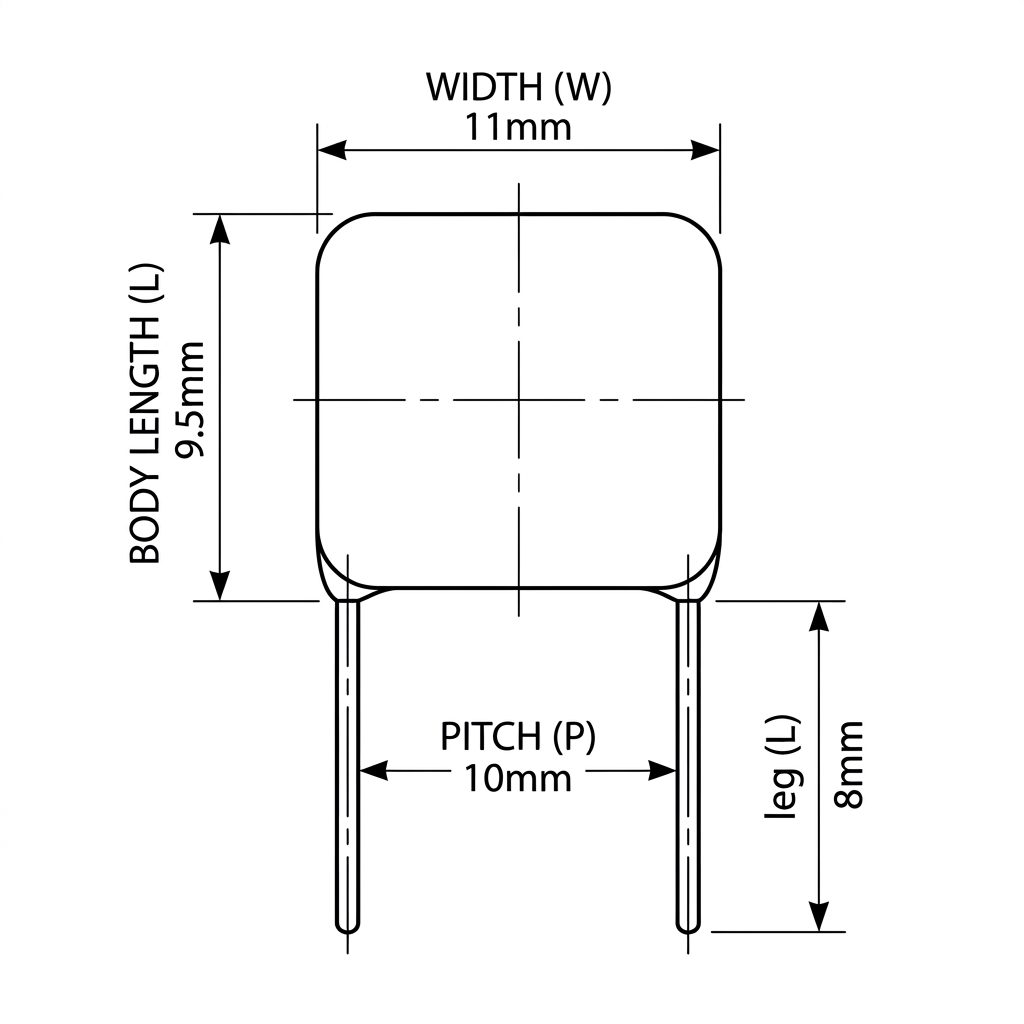

| Lead Pitch | 10mm |
Applications:
- High-voltage filtering.
- Signal coupling.
- Noise suppression.
- Snubber circuits.
- Timing circuits.
- Oscillator circuits.
- Power electronics.
- General PCB applications.
Package Includes:
- 1 × 6n8k Polyester Capacitor 6.8nF 1000V Pitch 10mm.
