7-Segment 0.56 inch Common Anode Red

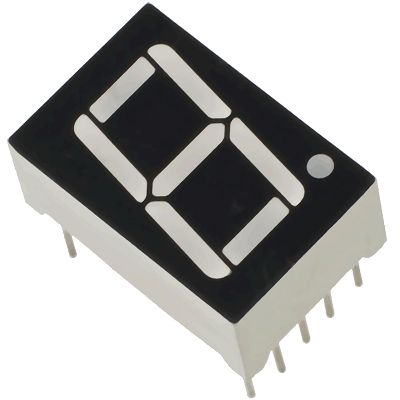

5011BS 7-Segment 0.56 inch Common Anode Red Display is a compact and efficient electronic component designed for displaying numerical information.
4.50 EGP
Buy Now5011BS 7-Segment 0.56 inch Common Anode Red Display
The 7-Segment 0.56 inch Common Anode Red Display is a compact and efficient electronic component designed for displaying numerical information. It features seven individually controllable LED segments arranged to form digits from 0 to 9, along with a decimal point for enhanced functionality. The common anode configuration simplifies the driving circuitry by connecting all anodes together, allowing segments to be activated by grounding their respective cathodes through current-limiting resistors. This display is widely used in applications requiring clear and reliable numerical readouts.
Features :
- Digit Height: 0.56 inches (14.2 mm)
- Configuration: Common Anode
- Color: Red
- Decimal Point: Included
- Easy to Interface: Compatible with microcontrollers and digital circuits
- High Brightness: Suitable for both indoor and outdoor applications
Specifications :
| Parameter | Value |
|---|---|
| Operating Voltage | 1.8V to 2.2V per segment (forward voltage) |
| Current per Segment | Up to 30mA |
| Wavelength | Approximately 640 nm (red) |
| Viewing Angle | Wide viewing angle for better visibility |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +85°C |
| Pin Count | 10 pins |

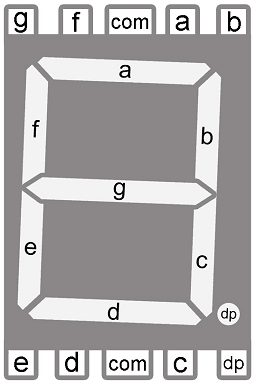

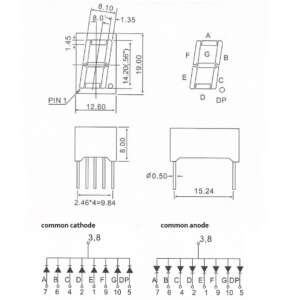

| Dimensions | Approximately 19.0 mm x 12.6 mm x 8.0 mm |

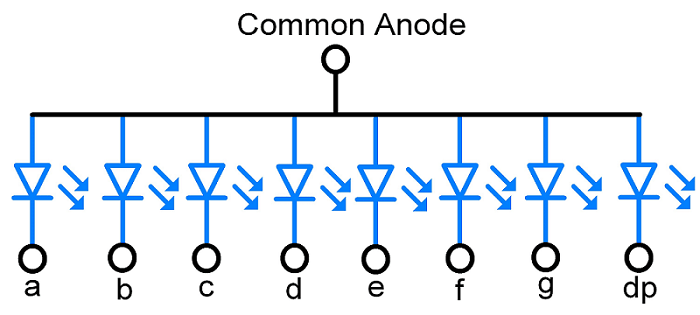

Common Anode (CA)

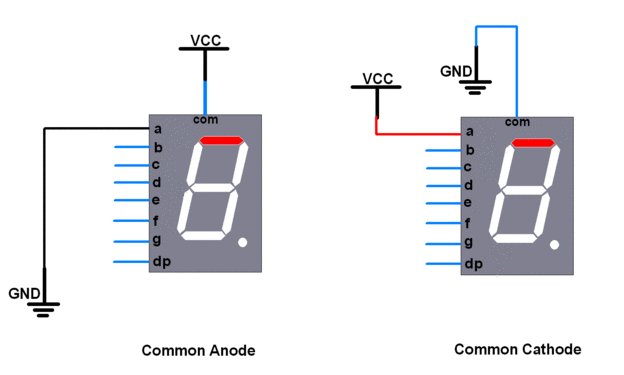

In common anode display, all anode pins are connected together to VCC and LEDs are controlled via cathode terminals. It means to turn ON LED (segment), we have to make that cathode pin logic LOW or Ground.
