DESCRIPTION

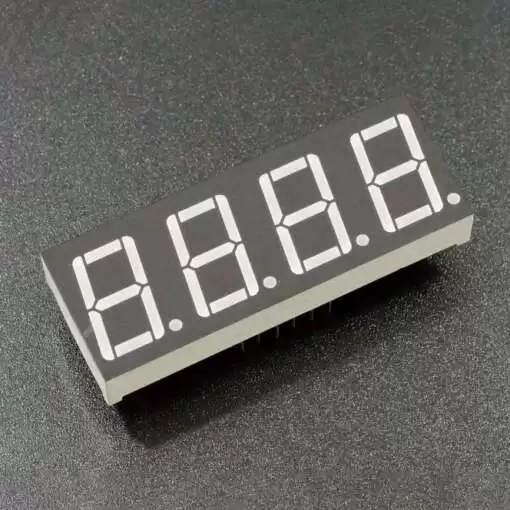

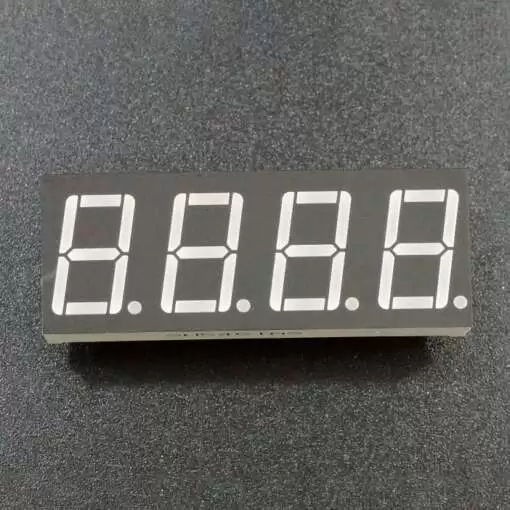

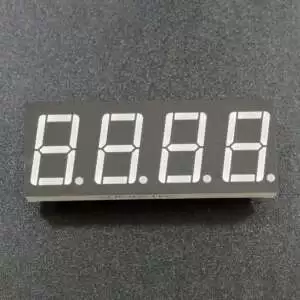

These 4-digit 7-Segment common cathode red LED displays include decimal points and have a character height of 0.56″.
PACKAGE INCLUDES:
- LED 7-Segment 0.56″ Red CC 4-Digit
KEY FEATURES OF LED 7-SEGMENT 0.56″ RED CC 4-DIGIT:
- 4-digit 7-Segment display with common cathode (CC)
- 0.56″ high characters
- 20 mA current
- 2V forward voltage drop
- Red color
7-Segment displays are very useful for making numeric or hexadecimal displays such as for a clock, timer, counter, voltmeter or similar application.
TECHNICAL SPECIFICATIONS
| Display Type | 7-Segment (x 4) | |
| Color | Red | |
| Type | Common Cathode (CC) | |
| Maximum Ratings | ||
| IF | Maximum Forward Current | 20mA (constant current per segment) |
| VF | Maximum Forward Voltage | 2V (Typical) |
| Package Type | Encapsulated plastic body, 12-lead, through hole | |
| Dimensions | ||
| Character Height | 14.2mm (0.56″) | |
| Module (L x W x H) | 51 x 19 x 8mm |
