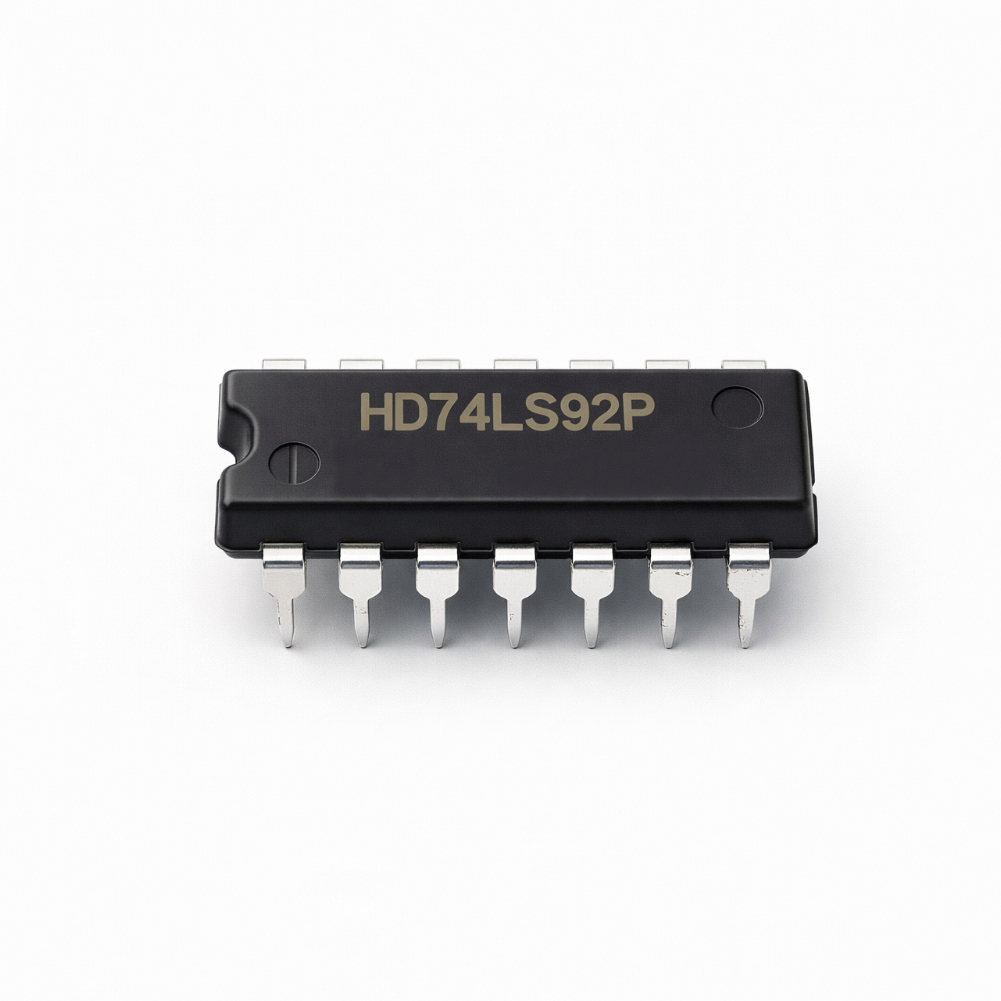

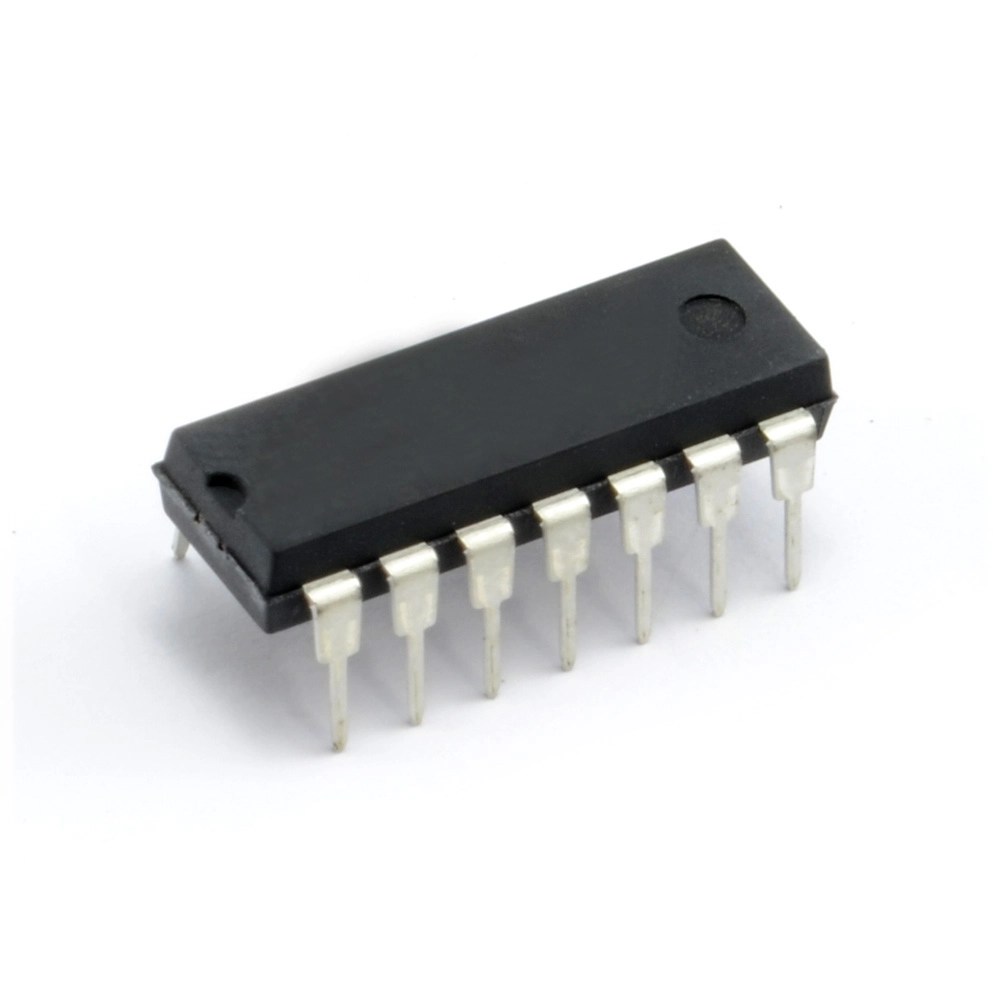

The HD74LS92P is a high-speed, low-power Schottky device containing four master-slave flip-flops and additional gating. It is designed to provide a divide-by-two counter and a three-stage binary counter for divide-by-six operations. To achieve a maximum divide-by-twelve count length, the B input must be externally connected to the QA output.
✅Features
- Dual Counter Functionality
- High-Speed Operation
- Low Power Consumption
- Integrated Reset
- Flexible Count Length
📜📚Specifications
| Item |
Symbol |
Ratings |
Unit |
| Supply Voltage |
VCC |
7.0 |
V |
| Input Voltage (Reset Inputs) |
VIN |
7.0 |
V |
| Input Voltage (A, B Inputs) |
VIN |
5.5 |
V |
| Operating Temperature Range |
Topr |
-20 to +75 |
°C |
| Storage Temperature Range |
Tstg |
-65 to +150 |
°C |
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Supply Voltage |
VCC |
4.75 |
5.00 |
5.25 |
V |
| High-level Output Current |
IOH |
– |
– |
-400 |
µA |
| Low-level Output Current |
IOL |
– |
– |
8 |
mA |
| Count Frequency (A Input) |
fcount |
0 |
– |
32 |
MHz |
| Count Frequency (B Input) |
fcount |
0 |
– |
16 |
MHz |
| Pulse Width (A Input / Reset) |
tw |
15 |
– |
– |
ns |
| Pulse Width (B Input) |
tw |
30 |
– |
– |
ns |
| Item |
Symbol |
Min |
Typ* |
Max |
Unit |
| Input Voltage (High) |
VIH |
2.0 |
– |
– |
V |
| Input Voltage (Low) |
VIL |
– |
– |
0.8 |
V |
| Output Voltage (High) |
VOH |
2.7 |
– |
– |
V |
| Output Voltage (Low) |
VOL |
– |
– |
0.5 |
V |
| Supply Current |
ICC |
– |
9 |
15 |
mA |
💻Applications
- Divide-by-Twelve Counter
- Binary Counting
- Digital Clocking
- Reset-Controlled Logic
🎁Package Content

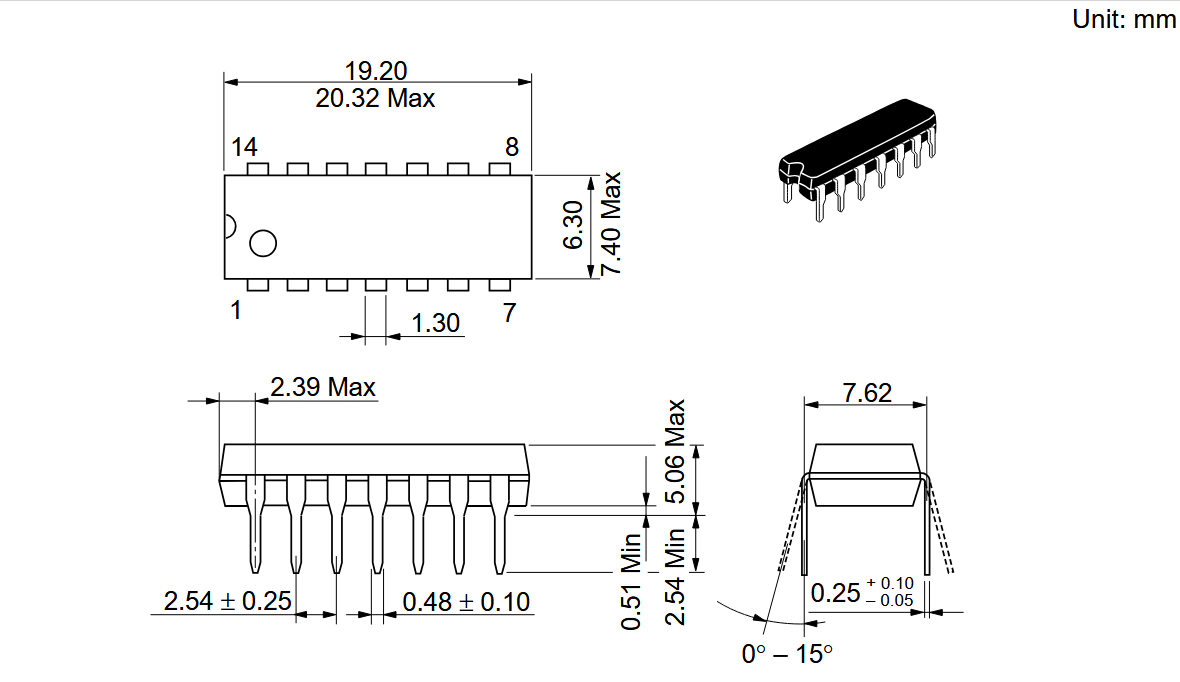

📖DataSheet
