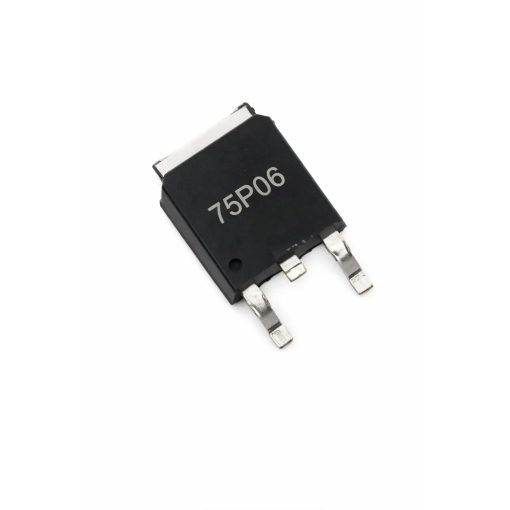

75P06 P-Channel MOSFET Transistor 60V 75A TO-263 SMD
The 75 P06 SMD Transistor is a high‑performance P‑Channel MOSFET designed for surface‑mount applications requiring robust switching and power handling. This device is housed in a surface‑mount package, providing an excellent balance of thermal dissipation, mechanical reliability, and compact footprint for modern PCB assemblies. It is engineered to support continuous drain currents up to 75 A and can withstand a drain‑to‑source voltage of 60 V, making it suitable for low‑side and high‑side switching roles, DC‑DC converters, and power management circuits.
Features:
- P-Channel enhancement mode for efficient high-side switching.
- Low on-resistance of 12mΩ at -10V gate drive.
- High continuous drain current capability up to -75A.
- Logic-level gate threshold for easy interfacing with microcontrollers.
Specifications:
| Parameter | Value |
|---|---|
| Drain Source Voltage | -60V |
| Continuous Drain Current | -75A |
| Power Dissipation | 107W |
| On Resistance | 12mΩ |
| Gate Threshold Voltage | -1.8V |
| Total Gate Charge | 139nC |
| Input Capacitance | 8699pF |
| Reverse Transfer Capacitance | 209pF |
| Operating Temperature | -55°Cto+175°C |
| Package Type | TO-263 |

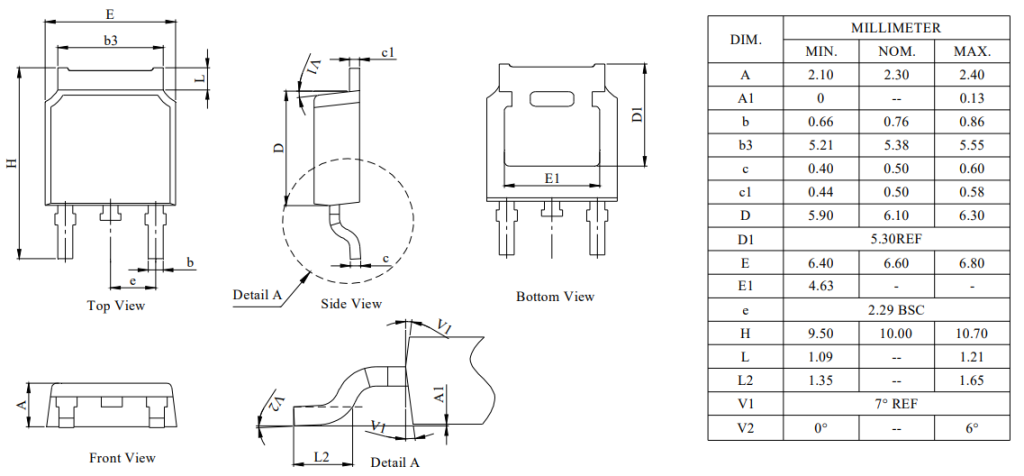

Pinout:
Applications:
- High‑side switching in DC‑DC converters and power management circuits.
- Battery protection and power distribution systems.
- Load switching in automotive and industrial applications.
- Reverse polarity protection circuits.
- General SMD power MOSFET switching applications.
Package Include:
- 1x 75P06 P-Channel MOSFET Transistor 60V 75A TO-263 SMD.
