H.R.Y 9225S24V DC Fan 24V 0.25A 92x92x25mm 3800 RPM 2‑Pin Connector
The H.R.Y 9225S24V is a square‑frame DC axial cooling fan designed for reliable heat dissipation in electronic and industrial equipment. It runs on a 24V DC supply with a rated current of 0.25A and motor power of 3W, spinning at 3800 r/min to deliver strong airflow for its size.

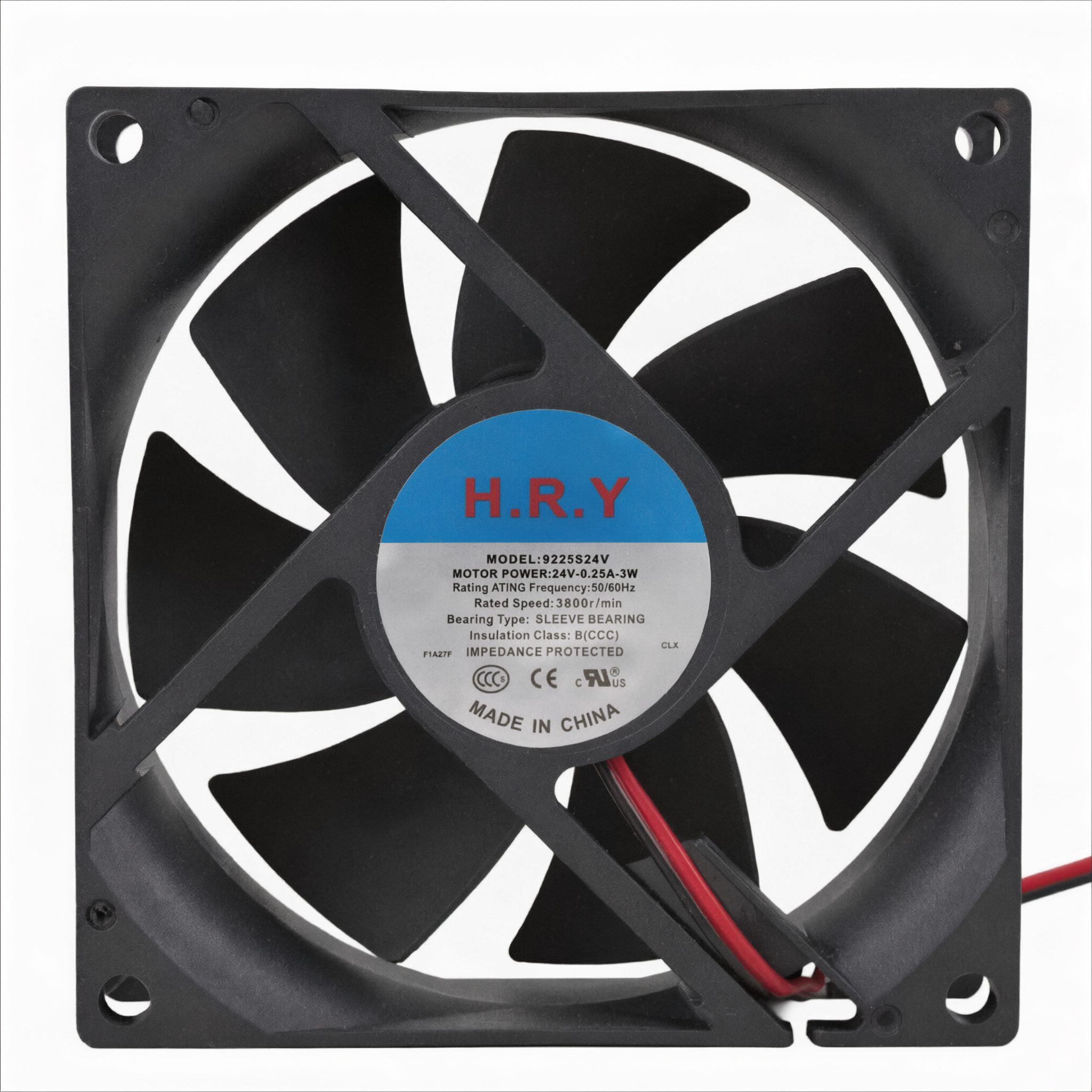

The fan uses a sleeve bearing system and a 7‑blade impeller housed in a black plastic frame with four corner mounting holes for easy panel or chassis installation. The motor is impedance protected with Insulation Class B, ensuring stable and safe operation.

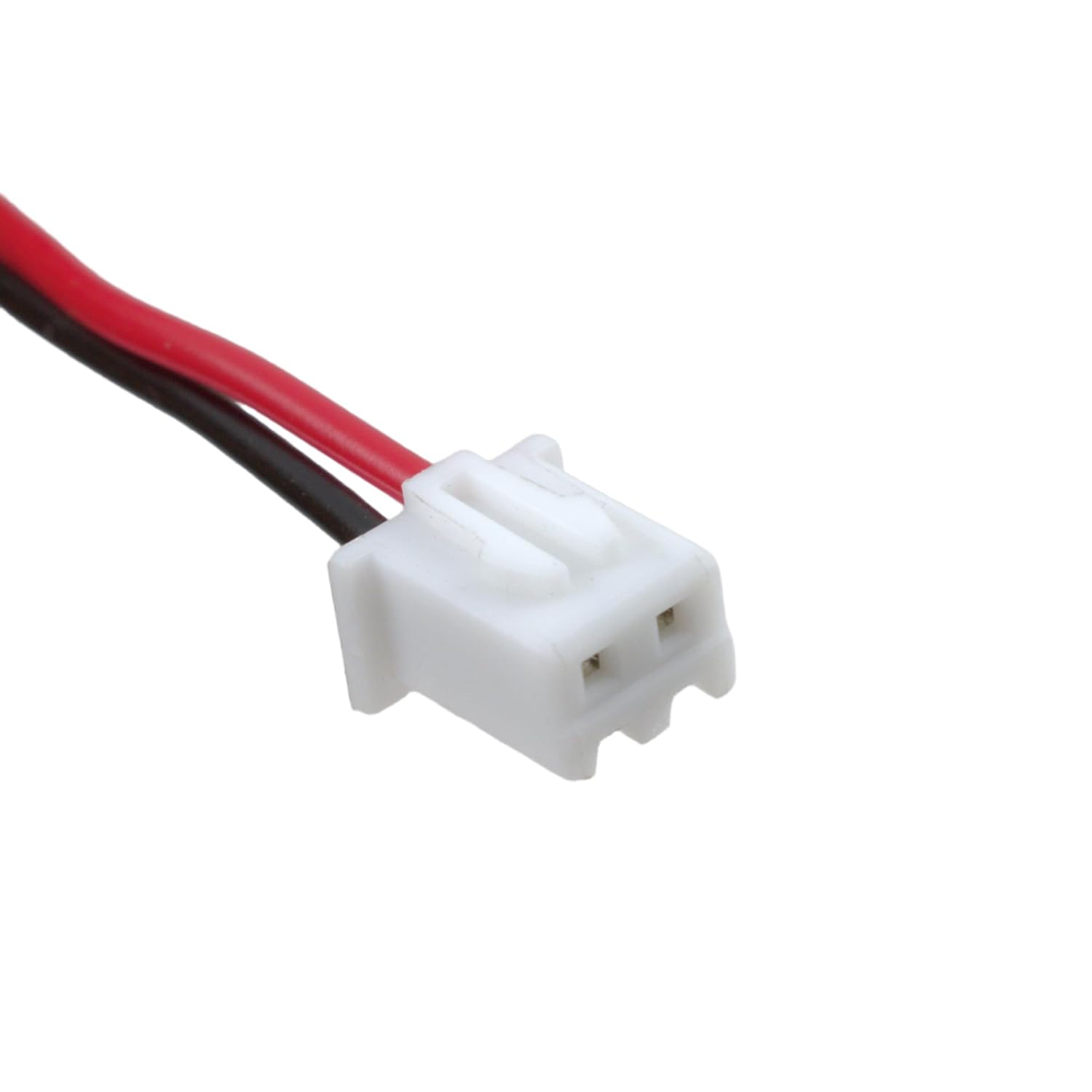

Installation is simple: the fan comes with red (+) and black (–) leads pre‑fitted with a compact 2‑pin white connector, allowing plug‑and‑play connection to your 24V supply.
Features
- Standard 92mm size
- 24V DC operation
- High speed cooling
- 7‑blade impeller
- Rated frequency 50/60 Hz
Specifications
| Brand | H.R.Y |
|---|---|
| Model Number | 9225S24V |
| Product Type | DC Axial Cooling Fan |
| Dimensions | 92 x 92 x 25 mm |
| Rated Voltage | 24V DC |
| Rated Current | 0.25A |
| Motor Power | 3W |
| Rated Frequency | 50/60 Hz |
| Rated Speed | 3800 r/min (RPM) |
| Bearing Type | Sleeve Bearing |
| Insulation Class | Class B (CCC) |
| Motor Protection | Impedance Protected |
| Number of Blades | 7 |
| Wiring | 2 Leads: Red (+) / Black (–) |
| Connector | 2-Pin White Connector |
| Frame | Black , 4 Corner Mounting Holes |
| Country of Origin | Made in China |
Applications
- Cooling and ventilation of control panels, electrical cabinets and equipment enclosures
- Power supplies, inverters, UPS and other 24V DC systems
- Networking & telecom gear – routers, switches, patch cabinets
- Servers, computer cases and industrial PCs
- LED displays, lighting enclosures and electronic instruments
Package Content
- 1 x H.R.Y 9225S24V DC Fan 24V 0.25A 92x92x25mm 3800 RPM 2‑Pin Connector
